25.2.カムボック 1(YPA) 25.2.Cam box 1(YPA) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 149 H2068A 1 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 6゜X36L 150 YPA1060 2 SHAFT ｼｬﾌﾄ 151 YPA1020 1 HOUSING ﾊｳ…

100%1 / 176
25.2.カムボック 1(YPA)
25.2.Cam box 1(YPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
35 WPA0181 2 KEY ｷｰ
44 YPA0480 2 COLLAR ｶﾗｰ
52 WPA1300 3 KEY ｷｰ
54 WPA1060 2 GEAR, PINION ｷﾞﾔ ﾋﾟﾆｵﾝ
55 YPA1110 2 COLLAR ｶﾗｰ
56 WPA0321 1 COLLAR ｶﾗｰ
57 YPA1180 1 SPRING ｽﾌﾟﾘﾝｸﾞ
58 WPA0311 1 COLLAR ｶﾗｰ
59 YPA1220 1 SHAFT ｼｬﾌﾄ
60 YPA1070 1 SHAFT ｼｬﾌﾄ
61 WPA1010 6 KEY ｷｰ
62 YPA1100 2 COLLAR ｶﾗｰ
63 H4315T 8 BEARING, DRY ﾍﾞｱﾘﾝｸﾞ ﾄﾞﾗｲ 70B-2520
64 YPA1040 1 HOUSING ﾊｳｼﾞﾝｸﾞ
65 YPA1250 1 SPRING ｽﾌﾟﾘﾝｸﾞ
66 YPA1250 1 COLLAR ｶﾗｰ
67 YPA1090 2 GEAR ｷﾞﾔ
76 WPA1252 2 HANDLE ﾊﾝﾄﾞﾙ
77 YPA1240 2 BKT BKT
78 WPA1642 2 SPRING, PLATE ｽﾌﾟﾘﾝｸﾞ 板
79 N4036H SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X5L 先ﾄｶﾞﾘ
83 W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M
85 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
86 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
99 H5359A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X20L
105 H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L
106 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
107 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
109 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
111 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
112 WPA1650 2 SCREW ﾈｼﾞ
114 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
122 WPA0351 2 WASHER ﾜｯｼｬ
123 WPA1021 2 WASHER ﾜｯｼｬ
146 YPA1080 2 GEAR ｷﾞﾔ
147 YPA1010 1 HOUSING ﾊｳｼﾞﾝｸﾞ
148 YPA1230 1 STOPPER ｽﾄｯﾊﾟ
CP-65E PARTS LIST ver07
25 - 6
25.2.カムボックス 1(YPA)
25.2.Cam box 1(YPA)
25.2.カムボック 1(YPA)
25.2.Cam box 1(YPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
149 H2068A 1 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 6゜X36L
150 YPA1060 2 SHAFT ｼｬﾌﾄ
151 YPA1020 1 HOUSING ﾊｳｼﾞﾝｸﾞ
152 YPA1030 1 HOUSING ﾊｳｼﾞﾝｸﾞ
153 N1019H 2 NUT, FINE U ﾅｯﾄ ﾌｧｲﾝ U AN04
154 N4028A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X6L
155 YPA1270 1 COVER ｶﾊﾞｰ
156 YPA1260 1 COVER ｶﾊﾞｰ
157 YPA1170 2 PLATE, SW ﾌﾟﾚｰﾄ SW
158 S3171A 2 SW, MICRO SW ﾏｲｸﾛ BZ-2RW82255-T4-J
159 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
160 . SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M4X15L
161 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
162 . SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M6X8L
164 WPA1732 1 GUIDE ｶﾞｲﾄﾞ
165 WPA1740 1 PLATE ﾌﾟﾚｰﾄ
166 WPA1750 1 PLATE ﾌﾟﾚｰﾄ
167 WPA1760 1 BKT BKT
168 WPA1681 1 BKT BKT
169 WPA1671 1 BASE ﾍﾞｰｽ
170 WPA1771 2 SPRING, PLATE ｽﾌﾟﾘﾝｸﾞ 板
171 S31970 1 SW, LIMIT SW ﾘﾐｯﾄ XCS-A501
172 S31971 1 SW, LIMIT SW ﾘﾐｯﾄ XCS-Z01
173 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴  M4X6L
174 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴  M4X12L
175 H5307A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴  M5X40L
176 H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴  M6X25L
177 . BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴  M10X12L
182 WWZ0233 2 PLATE ﾌﾟﾚｰﾄ
183 K5049N 2 CONNECTOR ｺﾈｸﾀ F-H-D7S
184 K5049L 2 CONNECTOR ｺﾈｸﾀ F-H-D7B
186 YAC0015 1 ANGLE REST ｲｹｰﾙ
187 H5263E BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴  M5X15L ･
CP-65E PARTS LIST ver07
25 - 7
25.2.カムボックス 1(YPA)
25.2.Cam box 1(YPA)
CP-65E PARTS LIST ver07

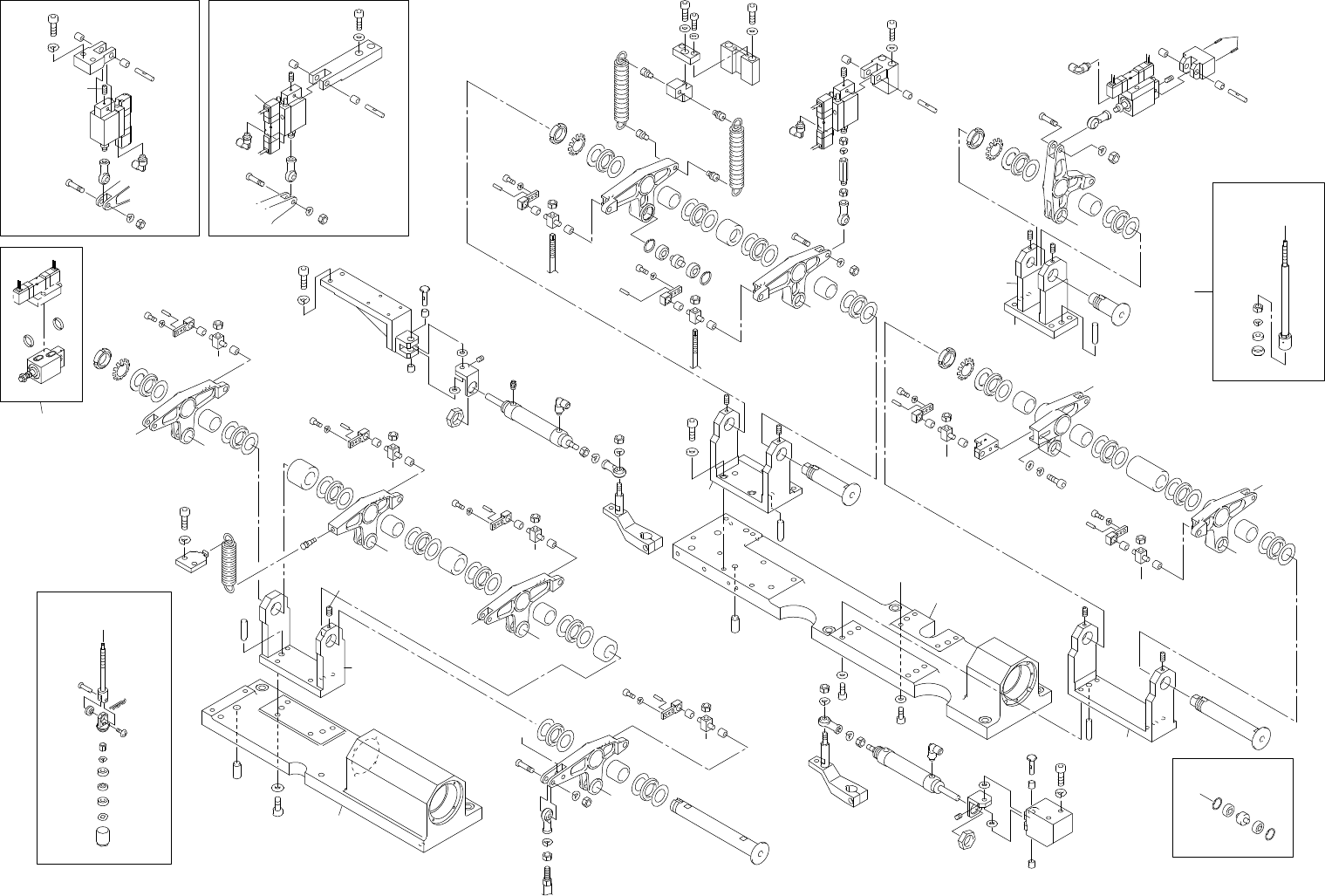

26.カムボックス 2(YPA)
