CP-65E PARTS LIST ver07

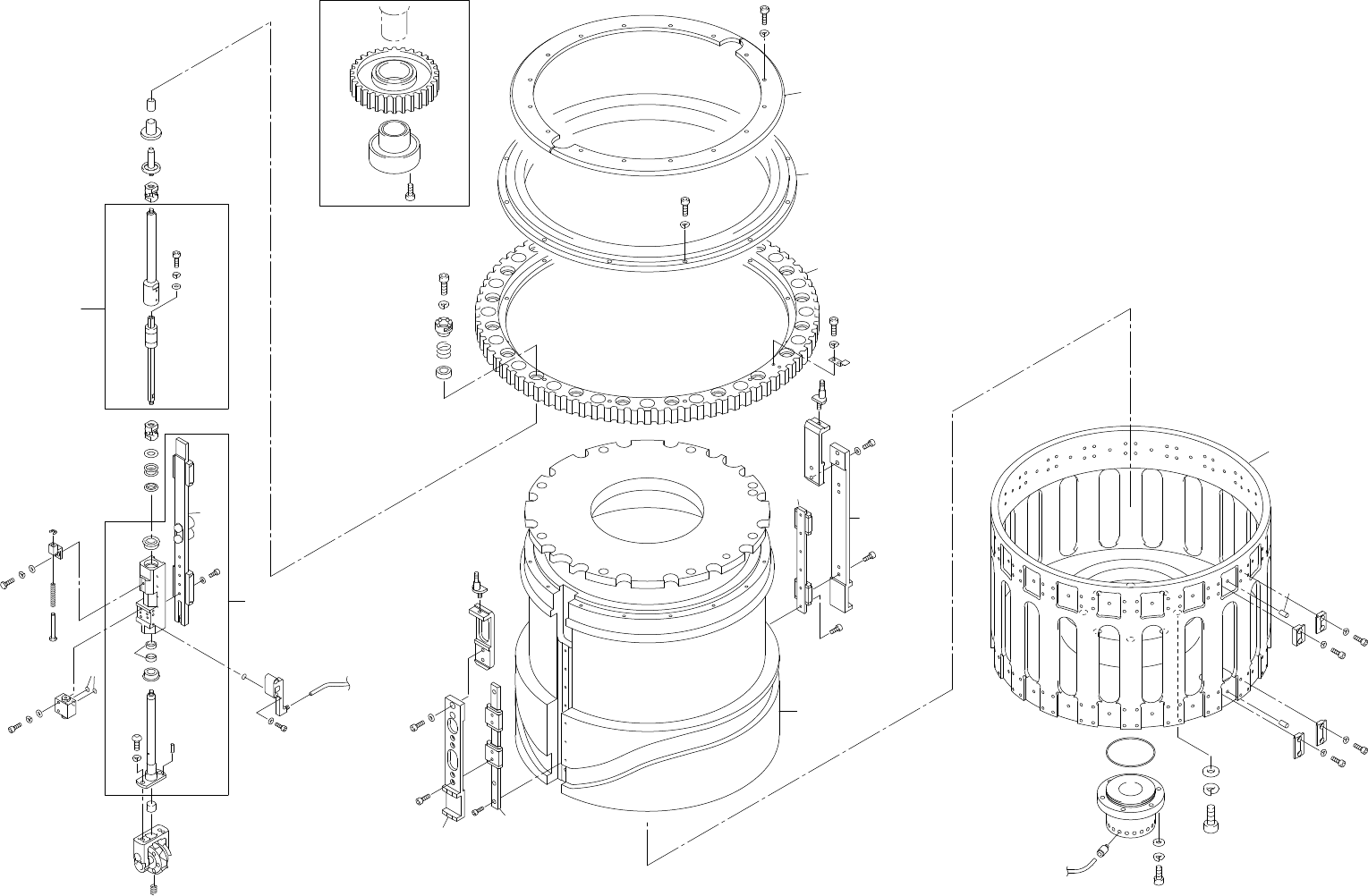

2.プレーシングヘッド、ドラム(YPH)
2.Placing head,Drum(YPH)
2 - 1
2.プレーシングヘッド、ドラム(YPH)
2.Placing head,Drum(YPH)
64
56
40
41
93
55
4
67
56
47
6
59
93
86
3
67
68
5
1
87
68
67
2
59
93
86
6
99
44
43
74
104
63
73
103
94
56
65
94
46
39
65
65
39
46
42
55
72
65
56
56
56
x6.8
注1
Note1
注2
Note2
49
50
62
65
56
10
9
8
11
12
13
14
15
16
66
56
58
14
79
80
81
7
61
68
18
19
98
70
57
58
21
24
22
23
20
18
57
58
25
88
88
102
68
99
27
75
71
55
82
28
101
51
61
105
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
2.プレーシングヘッド,ドラム(YPH)
2.Placing head,Drum(YPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 YPH0010 1 CAM, CYLINDRICAL ｶﾑ 円筒
2 YPH0070 1 SLIDER ｽﾗｲﾀﾞ
3 YPH0080 1 SLIDER ｽﾗｲﾀﾞ
4 YPH0040 1 GEAR, HELICAL ｷﾞﾔ ﾍﾘｶﾙ
5 YPH5030 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
6 YPH0590 2 JOINT ｼﾞｮｲﾝﾄ
7 YPH5114 20 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ 注 2 Note 2
8 H4118H 20 BEARING ﾍﾞｱﾘﾝｸﾞ SST-1680
9 WPH0411 20 SPRING ｽﾌﾟﾘﾝｸﾞ
10 WPH0384 20 CLUTCH ｸﾗｯﾁ
11 H4452C 20 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ BK81015A
12 WPH0924 20 SLEEVE ｽﾘｰﾌﾞ
13 WPH1284 20 SHAFT ｼｬﾌﾄ
14 K1002Z 40 COUPLING ｶｯﾌﾟﾘﾝｸﾞ CPU-26-A-T1
15 YPH0191 20 SHAFT ｼｬﾌﾄ 注 1 Note 1
16 WPH5060 20 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ 注 1 Note 1
18 H4113A 40 BEARING ﾍﾞｱﾘﾝｸﾞ LF-1910ZZ
19 YPH0524 20 HOLDER ﾎﾙﾀﾞ 注 2 Note 2
20 H1164H 40 PACKING ﾊﾟｯｷﾝ MY-10A
21 WPH0870 20 BKT BKT
22 WPH2130 20 SPRING ｽﾌﾟﾘﾝｸﾞ
23 WPH2120 20 PIN ﾋﾟﾝ
24 S1021A 20 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-3
25 WPH1182 20 VALVE, MECHANICAL ﾊﾞﾙﾌﾞ ﾒｶﾆｶﾙ
27 WPH0530 20 SHAFT ｼｬﾌﾄ 注 2 Note 2
28 AYPH3010 20 HOLDER ﾎﾙﾀﾞ
39 YPH0150 40 CLAMPER ｸﾗﾝﾊﾟ
40 YPH0060 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
41 YPH5052 1 BEARING ﾍﾞｱﾘﾝｸﾞ
42 YPH0460 1 DRUM ﾄﾞﾗﾑ
43 YPH0030 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
44 S2147A 20 JOINT ｼﾞｮｲﾝﾄ BF-6
46 WPH1050 40 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ
47 WPH0560 1 DOG ﾄﾞｯｸﾞ
49 YPH0050 1 GEAR, HELICAL ｷﾞﾔ ﾍﾘｶﾙ
50 . 1 RING, LOCKING ﾘﾝｸﾞ 締結 PL030X041TF
51 AYPH3110 1 SHAFT ｼｬﾌﾄ
CP-65E PARTS LIST ver07
2 - 2
2.プレーシングヘッド,ドラム(YPH)
2.Placing head,Drum(YPH)
2.プレーシングヘッド,ドラム(YPH)
2.Placing head,Drum(YPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No.QTY Description Rating Remarks
55W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
56W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
57W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
58W1040A WASHER, FLAT ﾜｯｼｬ 平 3M/MX0.5X7
59W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
61W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L
62H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
63H5303A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X22L
64H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
65H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
66H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
67H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
68H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
70H5164A BOLT, HEX ﾎﾞﾙﾄ 六角 M3X8L
71K5261H SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M5X12L
72W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M
73H5363A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X40L
74A5139Z 1 O RING O ﾘﾝｸﾞ S63
75R5012A 20 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ ゜3X9.8
79WPH0780 20 WASHER ﾜｯｼｬ
80W1019T 60 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ BBY0062611AO
81WPH0790 20 WASHER ﾜｯｼｬ
82WPH2030 20 FILTER ﾌｨﾙﾀ
86YPH0400 2 PLATE, JOINT ﾌﾟﾚｰﾄ ｼﾞｮｲﾝﾄ
87YPH5040 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
88A5129A 60 O RING O ﾘﾝｸﾞ S4
93H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
94YPH0470 40 CLAMPER ｸﾗﾝﾊﾟ
98H5280A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X20L
99YPH0600 20 HOSE, AIR ﾎｰｽ ｴｱｰ
101AYPH3130 20 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ YPH0191+WPH5060
102YPH0571 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
103W1055A WASHER, FLAT ﾜｯｼｬ 平 10M/MX2.0X21(1W-10)
104W1050A WASHER, FLAT ﾜｯｼｬ 平 1W-5
105WPH1163 120SPRING ｽﾌﾟﾘﾝｸﾞ
CP-65E PARTS LIST ver07
2 - 3
2.プレーシングヘッド,ドラム(YPH)
2.Placing head,Drum(YPH)
