28.エアー配管図(YPI) 28.Pneumatic circuit diagram(YPI) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 42 S1052A 16 SILENCER ｻｲﾚﾝｻ SL-M5 43 K5339C 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS13…
28.エアー配管図(YPI)
28.Pneumatic circuit diagram(YPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 H1059T 1 VALVE, BALL ﾊﾞﾙﾌﾞ ﾎﾞｰﾙ RP-LL-3/8
2 H3030A 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG
3 S3157T 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000-02L5
4 . 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ VV5Z3-41-021-5M
5 YQL0060 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL
6 K5337R 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1201F-M5-06(ｼﾛ)
7 H1130Z 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VZ3140-5MZ
8 H1083T 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL SS22J-M5-D24UP-Z
9 K5338D 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1211F-M5-06(ｼﾛ)
10 K5339T 1 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1311F-M5-06(ｼﾛ)
11 S2113H 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQ2D16-10D-F7BV
13 K2027R 1 KEY ｷｰ C1000-50
15 H5447W 1 PUMP, VACUUM ﾎﾟﾝﾌﾟ ﾊﾞｷｭｰﾑ KH750A-305-G1
16 . 1 VACUUM GAUGE 真空ｹｰｼﾞ 4-041421
17 S3158A 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ ISG190-030
18 H1077T 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCS242-M5-D24-SP
19 H10246 1 VALVE, PRESSURE REDUCING ﾊﾞﾙﾌﾞ 減圧 R002-01G
20 WPA5142 7 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
21 S2085H 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ DAD25X40-ZG553A2-3731W
22 S1053A 4 SILENCER ｻｲﾚﾝｻ SL-1
23 S1056A 5 SILENCER ｻｲﾚﾝｻ AN101-01
24 S1058A 3 SILENCER ｻｲﾚﾝｻ AN120-M5
25 H1067F 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL A12PD25-1S-02E
26 K5330A 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ SC6-01-B
27 S2099T 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDM2B20-D7481-250
28 H1073F 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCD345-01D-D24SP
29 S1053N 4 SILENCER ｻｲﾚﾝｻ KM-22
31 H1070Z 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCD245-01-D24-UP
32 S2088L 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ SSDL25-50
33 H1082A 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL RCC235-D24-SP
34 K5342D 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2201F-01-06S(ｼﾛ)
35 S21274 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ JDA16X40B
36 H1063T 2 VALVE, MECHANICAL ﾊﾞﾙﾌﾞ ﾒｶﾆｶﾙ VM133-M5-01
38 YPU5020 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
39 H1081T 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCS-245-01-D24-SP
40 S2202A 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ PBDAS16X60-A
41 H1067A 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCS-245-M5-H24-UP
CP-65E PARTS LIST ver07
28 - 2
28.エアー配管図(YPI)
28.Pneumatic circuit diagram(YPI)
28.エアー配管図(YPI)
28.Pneumatic circuit diagram(YPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
42 S1052A 16 SILENCER ｻｲﾚﾝｻ SL-M5
43 K5339C 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1301F-M5-06(ｼﾛ)
45 S1056A 1 SILENCER ｻｲﾚﾝｻ AN-101-01
46 H1134A 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VZ415-5LZ-01-U
47 H1037H 1 VALVE, MANUAL ﾊﾞﾙﾌﾞ 手動 HV8-01-2
48 H1007H 2 GENERATOR, VACUUM 発生器 真空 VSL10-601
49 S4016R 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02-D
50 . 1 VALVE, PRESSURE REDUCING ﾊﾞﾙﾌﾞ 減圧 AF2000-02-BG
51 WPL5012 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
52 K5332A 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ SS4-M5A ･
CP-65E PARTS LIST ver07
28 - 3
28.エアー配管図(YPI)
28.Pneumatic circuit diagram(YPI)
CP-65E PARTS LIST ver07

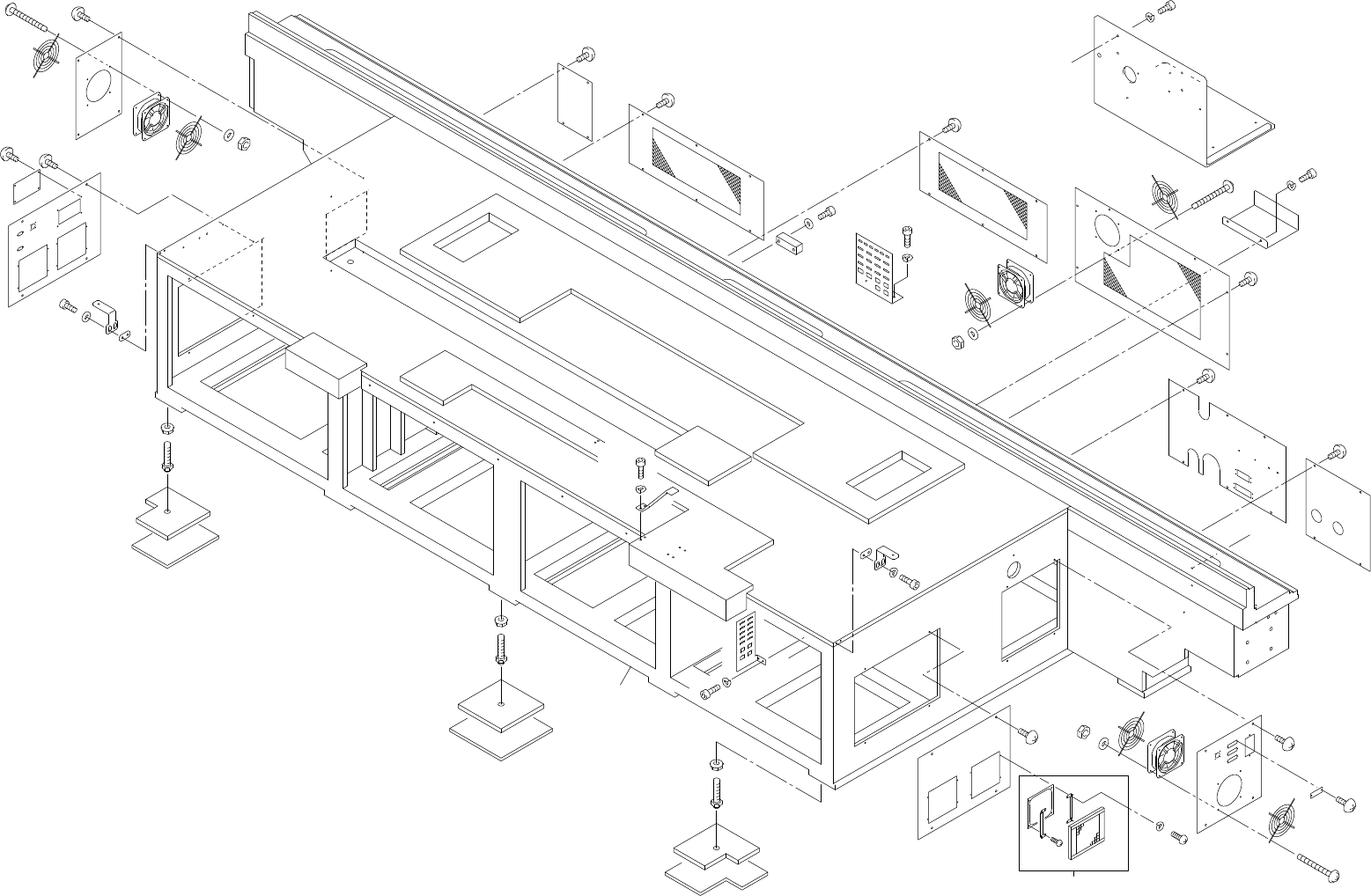

29.本体(YAB)
29.Body(YAB)
29 - 1
29.本体(YAB)
29.Body(YAB)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
x16.5
30
27
25
3
54
24
25
34
38
2
47
35
45
46
13
12
18
20
13
12
16
19
1
13
12
17
20
4
26
33
28
27
25
30
5,21
24
25
30
38
34
46
45
35
47
50
30
7
30
30
8
14
36
31
27
25
9
30
24
25
34
38
29
35
39
15
37
32
10
30
11
30
48
36
31
51
53
30
52
36
31
55
B
56
57
58
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
B
