30.カバー(YPZ)
30.Cover(YPZ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
81 K5183A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X6L
82 . SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X8L
83 . SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X8L
84 K5207A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X5L
85 K51711 SCREW, C/R TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M5X6L
86 . SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ N6X5L
87 K5216A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M6X10L
88 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
89 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
90 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
91 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
92 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
93 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
94 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
95 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
96 N1082A NUT, HEX ﾅｯﾄ 六角 M5P=0.8
97 YPZ0250 1 BKT BKT
100 YPZ5020 1 COVER ｶﾊﾞｰ
101 MPZ622O 4 WASHER ﾜｯｼｬ
102 H3080A 1 BUSHING, RUBBER ﾌﾞｯｼｭ ｺﾞﾑ 30MM
103 W1001E WASHER ﾜｯｼｬ 歯付き座金(B)M4
104 W1001G WASHER ﾜｯｼｬ 歯付き座金(B)M4
105 WPZ2520 4 SEAL ｼｰﾙ ･
CP-65E PARTS LIST ver07
30 - 4
30.カバー(YPZ)
30.Cover(YPZ)
CP-65E PARTS LIST ver07

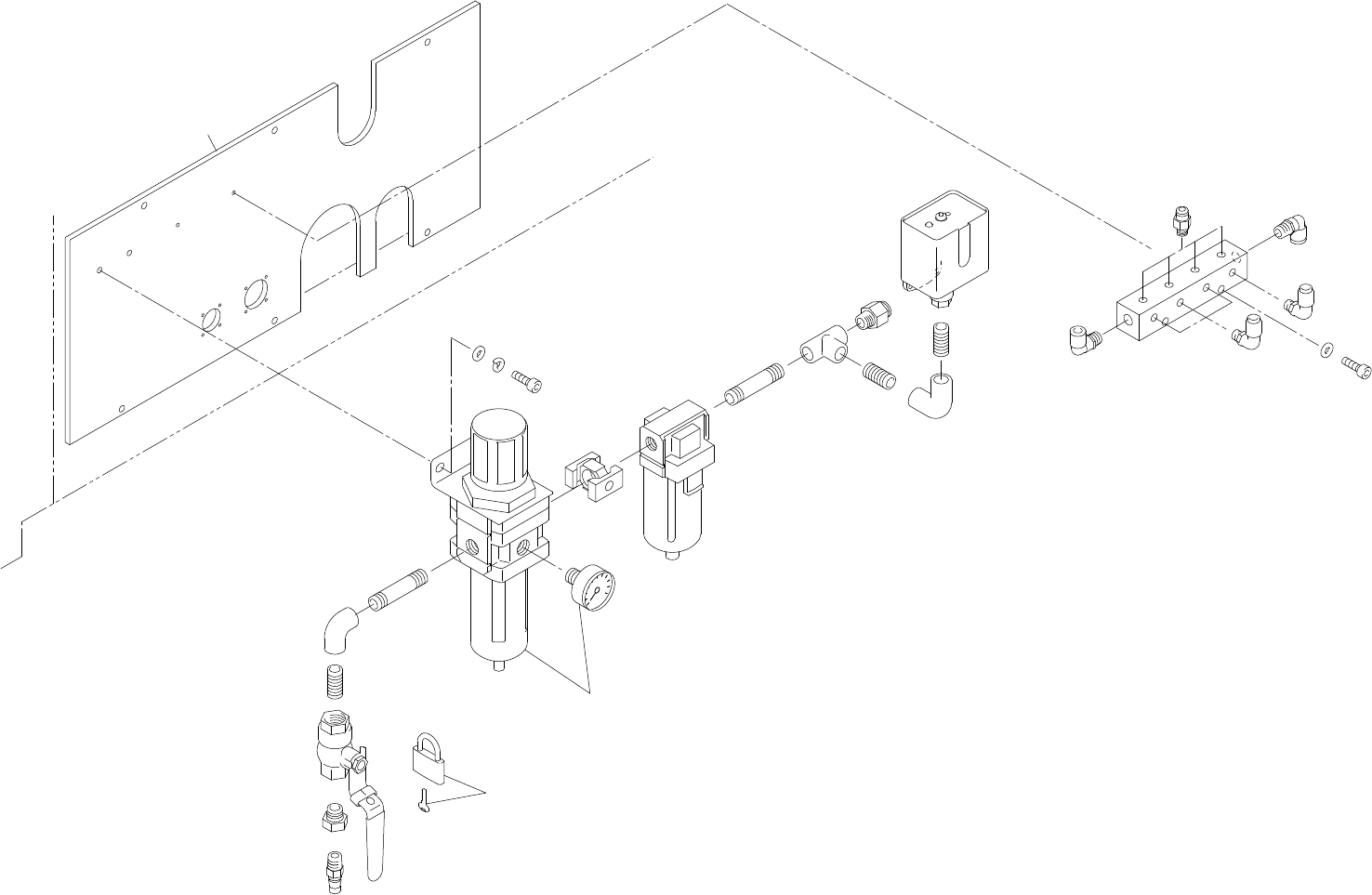

31.エアー機器(YPI)
31.Air device(YPI)
31 - 1
31.エアー機器(YPI)
31.Air device(YPI)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
x5
2
17
25
3
16
6
15
7
21
22
19
15
4
24
14
5
14
8
10
23
9
13
11
12
20
18
1
26
27
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
31.エアー機器(YPI)
31.Air device(YPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 YAB0020 1 COVER ｶﾊﾞｰ
2 H3149A 1 PLUG, COUPLER ﾌﾟﾗｸﾞ ｶﾌﾟﾗ 20PM
3 H1059T 1 VALVE, BALL ﾊﾞﾙﾌﾞ ﾎﾞｰﾙ RP-LL-3/8
4 T4038A 1 TEE ﾃｨｰ 1/4.
5 A4053A 1 ELBOW ｴﾙﾎﾞ 1/4.
6 A4081A 1 ELBOW, DIFFERENT DIAMETERS ｴﾙﾎﾞ異径 3/8X1/4
7 H3030A 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG
8 S3157T 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000
9 S2176B 4 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01(NYﾒｯｷ)
10 S2172B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-02(NYﾒｯｷ)
11 S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01(NYﾒｯｷ)
12 S2173B 3 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-01(NYﾒｯｷ)
13 S2174B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-02(NYﾒｯｷ)
14 H1215A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X30
15 H1220A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X65
16 H1282A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25
17 H3075A 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4
18 H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X35L
19 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
20 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
21 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
22 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
23 GXA0110 1 TERMINAL, PIPING ﾀｰﾐﾅﾙ 配管
24 S2153A 1 JOINT ｼﾞｮｲﾝﾄ TS8-02
25 . 1 KEY ｷｰ C1000-50
26 S4016R 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02-D
27 S3059Y 1 SPACER ｽﾍﾟｰｻ Y30(29.5) ･
CP-65E PARTS LIST ver07
31 - 2
31.エアー機器(YPI)
31.Air device(YPI)
