6.1.基板クランプ(YSS) 6.1.Board clamping unit(YSS) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 112 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L 113 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L 114 N1…
6.1.基板クランプ(YSS)
6.1.Board clamping unit(YSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
47 LPT1410 1 WASHER ﾜｯｼｬ
48 LPT1440 2 PIN ﾋﾟﾝ
49 LPT1450 1 COLLAR ｶﾗｰ
50 LPT1521 2 WASHER ﾜｯｼｬ
51 MQC1292 6 PULLEY ﾌﾟｰﾘ
52 H4400A 2 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA59Z
53 H4412A 2 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA1612Z
54 H4449A 4 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1360ZZ
55 H4451A 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1680ZZ
56 H41148 4 BEARING ﾍﾞｱﾘﾝｸﾞ R-1450ZZ
57 H1160A 16 PACKING ﾊﾟｯｷﾝ MY-3
58 H1164A 16 PACKING ﾊﾟｯｷﾝ MY-11
61 A5129T 8 O RING O ﾘﾝｸﾞ S5
62 H2042A 2 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ ﾟ2X 10L
64 Y3079N 3 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5
65 Y3083A 2 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQH06-01S-X15
67 K5585A 1 CONNECTOR ｺﾈｸﾀ KQ2U06-99
68 K50764 2 CONNECTOR ｺﾈｸﾀ KQ2U06-01S
69 K5342D 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2201F-C1-06S(ｼﾛ)
71 Y3044A 2 UNION ﾕﾆｵﾝ M-5E
72 H3146A 3 PLUG ﾌﾟﾗｸﾞ M-5P
73 S2160A 4 JOINT ｼﾞｮｲﾝﾄ M-5AU-6
74 N2030A 6 NIPPLE ﾆｯﾌﾟﾙ M-5ALHU-6
75 A4090A 3 ELBOW, UNIVERSAL ｴﾙﾎﾞ ﾕﾆﾊﾞｰｻﾙ M-5UL
76 . 1 TEE ﾃｨｰ M-5UT
77 YSS0230 1 BKT BKT
97 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
98 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
99 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
101 . BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X28L
102 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
103 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
104 H5301A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X18L
105 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
106 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
107 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
110 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
CP-65E PARTS LIST ver07
6 - 3
6.1.基板クランプ(YSS)
6.1.Board clamping unit(YSS)
6.1.基板クランプ(YSS)
6.1.Board clamping unit(YSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
112 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
113 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
114 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
117 K5257A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M4X8L
118 K5203A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X6L
119 N4021A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X6L
120 N4029A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X8L
121 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
132 LXT1860 1 COLLAR ｶﾗｰ
133 WSS2700 32 WASHER ﾜｯｼｬ
134 H44309 16 BEARING, BALL ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LM6UP
135 YSS0510 1 PLATE ﾌﾟﾚｰﾄ
136 YSS0522 32 PISTON ﾋﾟｽﾄﾝ
137 YSS5380 16 SHEET, RUBBER ｼｰﾄ ｺﾞﾑ
139 YSS0560 2 PLATE ﾌﾟﾚｰﾄ
140 YSS0570 2 SPRING ｽﾌﾟﾘﾝｸﾞ
141 AYSS8040 2 PISTON ﾋﾟｽﾄﾝ
142 H1162T 4 PACKING ﾊﾟｯｷﾝ MY7
143 H1167H 2 PACKING ﾊﾟｯｷﾝ MY24
144 H5304A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X25L ･
CP-65E PARTS LIST ver07
6 - 4
6.1.基板クランプ(YSS)
6.1.Board clamping unit(YSS)
CP-65E PARTS LIST ver07
6.2.基板クランプ(YSS)
6.2.Board clamping unit(YSS)
6 - 5

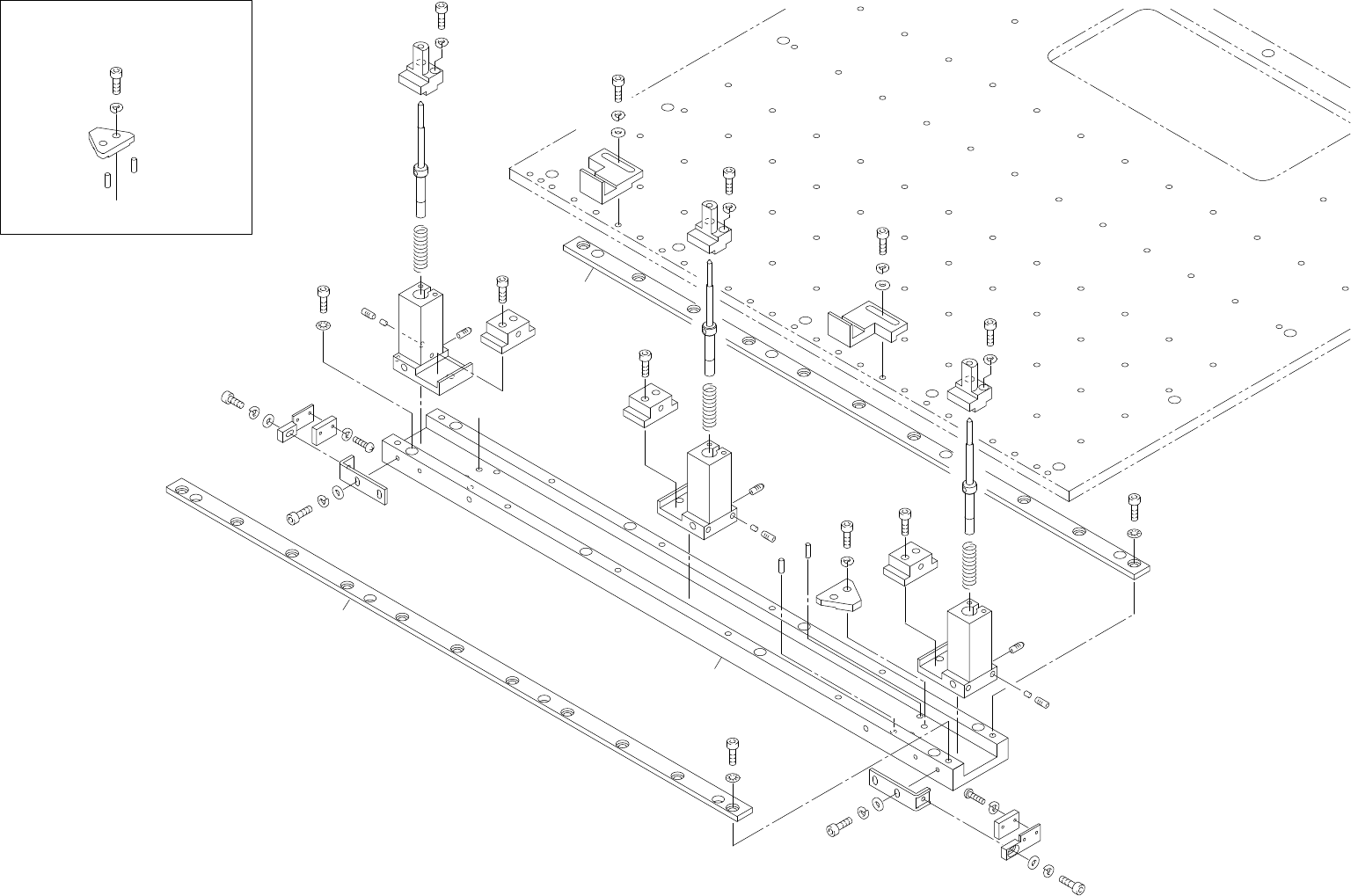

6.2.基板クランプ(YSS)
6.2.Board clamping unit(YSS)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
95
105
108
81
90
122
115
80
108
105
96
112
97
124
125
93
39
80
108
105
96
122
115
82
108
105
95
112
100
125
124
85
103
123
84
87
39
86
99
106
109
79
96
105
99
106
109
78
96
105
86
97
112
87
83
123
85
92
98
106
103
124
125
94
94
123
83
85
103
96
105
86
87
129
130
131
92
106
98
94
逆流れ
Right-to-left board frow
94
A
A
126
127
128
126
127
128
x3.2
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
