0612-002 88 10 10 3 1 See Fig.G- 1 Key No.2 See Fig.G-1 Key No.47 See Fig.G- 5 Key No.44 5 7 8 9 6 2 4 16 . 12 . 1 1 13 15 14 21 つなぎ目検出ユニット SPLICING DETECTION UNIT DS-12160 DS-12160 Fig. GD-1 12,16mm 幅テープフィーダ用 FOR 12,16m…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
0601-003
87
1 630 129 5855 FRAME 1 804WD-110-001
2 630 130 0542 ASSY,LEVER(HOLD) 1 804WD-110-002
3 630 129 5886 COVER 1 804WD-110-003
4 630 129 5879 SPRING,TORSION 1 804WD-110-004
5 411 016 0203 RING E 2.5 1 804WD-110-005
6 630 128 9021 SENSOR,PHOTO 2 B01,B02,#EE-SPY424-P1
804WD-110-006
7 411 039 2604 SCR PAN 2X6 4 804WD-110-007
8 411 141 2509 WASHER SPR 2 4 804WD-110-008
9 411 141 3605 WASHER V 2X5X0.3 4 804WD-110-009
10 411 033 5700 SCR FLT 2.5X6 2 804WD-110-010
11 630 000 7664 BOLT,HEX-SCT 2 804WD-110-011
12 411 141 2905 WASHER SPR 4 2 804WD-110-012
13 411 141 4008 WASHER V 4X9X0.8 2 804WD-110-013
14 630 132 2087 NAME PLATE,INDEX 1 804WD-110-014
15 630 143 4346 NAME PLATE,INDEX 1 804WD-110-015
16 630 140 3694 GUIDE 1 804WD-110-016
WD-1
DS-08080
0612-002
88
10
10
3
1
See Fig.G-
1
Key No.2
See Fig.G-1
Key No.47
See Fig.G-
5
Key No.44
5
7
8
9
6
2
4
16
.
12
.
11
13
15
14
21

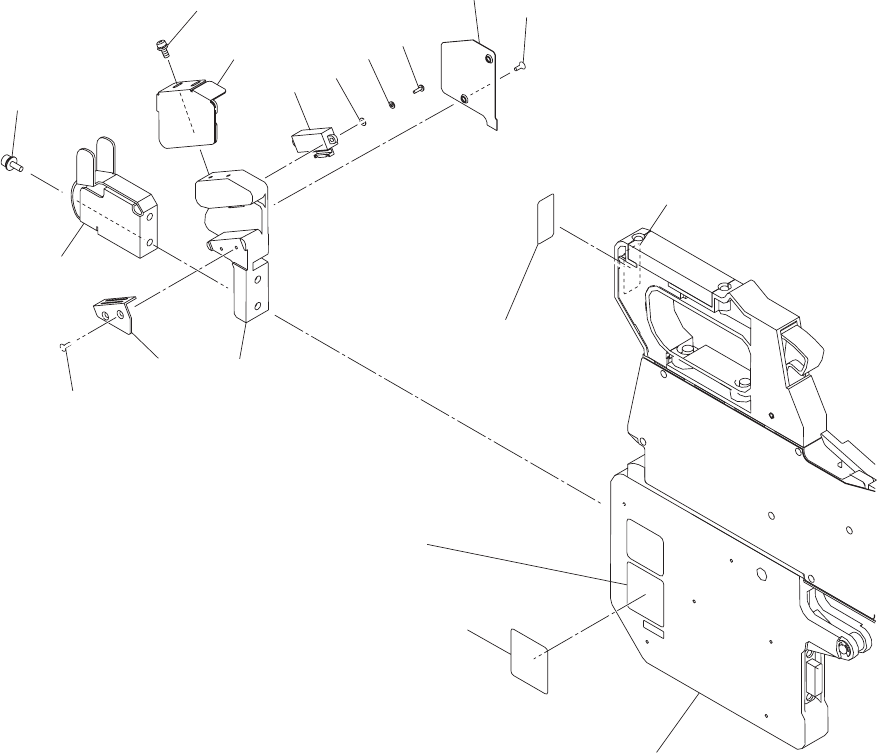

つなぎ目検出ユニット
SPLICING DETECTION UNIT
DS-12160 DS-12160
Fig. GD-1
12,16mm
幅テープフィーダ用
FOR 12,16mm TAPE FEEDER
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
0612-003
89
1 630 131 7984 FRAME 1 804GD-110-001
2 630 130 8302 ASSY,COVER 1 804GD-110-002
3 630 130 8319 COVER(D) 1 804GD-110-003
4 630 130 8296 PLATE 1 804GD-110-004
6 630 128 9021 SENSOR,PHOTO 1 B01,#EE-SPY424-P1
804GD-110-006
7 411 039 2604 SCR PAN 2X6 2 804GD-110-007
8 411 141 2509 WASHER SPR 2 2 804GD-110-008
9 411 141 3605 WASHER V 2X5X0.3 2 804GD-110-009
10 411 033 5700 SCR FLT 2.5X6 4 804GD-110-010
11 630 000 7664 BOLT,HEX-SCT 2 804GD-110-011
12 411 141 2905 WASHER SPR 4 2 804GD-110-012
13 411 141 4008 WASHER V 4X9X0.8 2 804GD-110-013
14 630 132 2087 NAME PLATE,INDEX 1 804GD-110-014
15 630 143 4346 NAME PLATE,INDEX 1 804GD-110-015
16 630 127 4546 SCR PAN+SW+W 3X6 2 804GD-110-016
21 630 149 6894 GUIDE 1 804GD-110-021
GD-1
DS-12160
