GXH-1S Feeder.pdf - 第93页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 0612-005 91 1 630 131 7984 FRAME 1 804PD-1 10-001 2 630 133 5346 ASSY ,COVER 1 804PD-1 10-002 3 630 130 8319 COVER(D) 1 804PD-1 10-003 4 630 133 5230 PLA TE 1 804PD-1 10-0…
0612-003
90
10
10
3
1
See Fig.P-
1
Key No.2
7
8
9
6
4
See Fig.P-1
Key No.47
See Fig.P-5
Key No.44
5
16
18
2
17
.
12
.
11
13
15
14
20
19
21

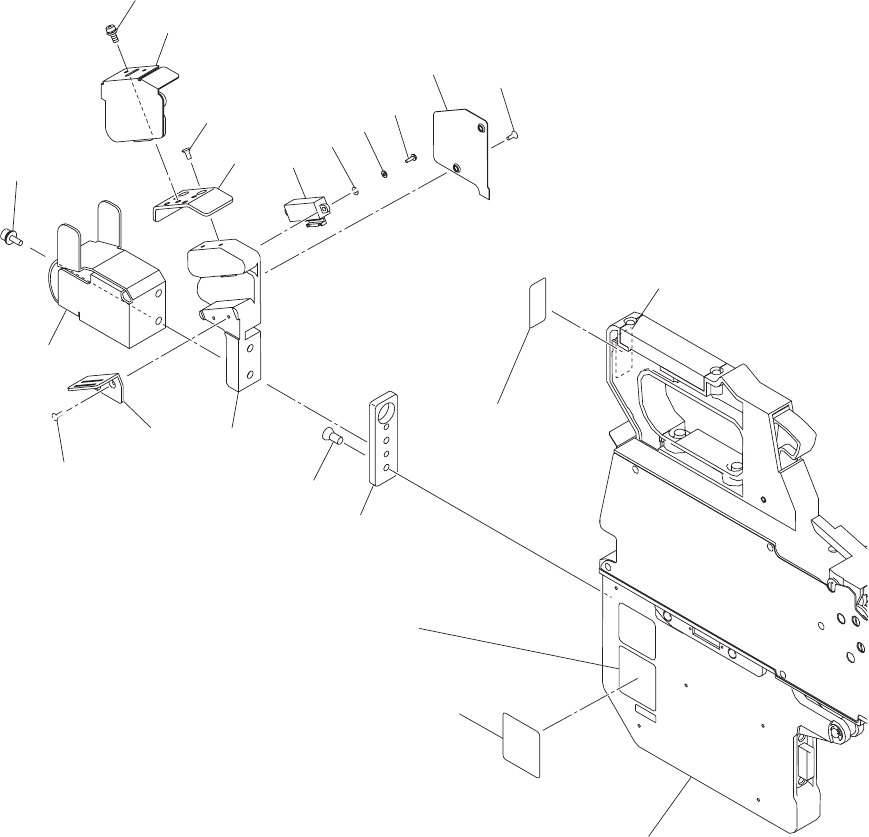

つなぎ目検出ユニット
SPLICING DETECTION UNIT
DS-24320 DS-24320
Fig. PD-1
24,32mm
幅テープフィーダ用
FOR 24,32mm TAPE FEEDER
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
0612-005
91
1 630 131 7984 FRAME 1 804PD-110-001
2 630 133 5346 ASSY,COVER 1 804PD-110-002
3 630 130 8319 COVER(D) 1 804PD-110-003
4 630 133 5230 PLATE 1 804PD-110-004
6 630 128 9021 SENSOR,PHOTO 1 B01,#EE-SPY424-P1
804PD-110-006
7 411 039 2604 SCR PAN 2X6 2 804PD-110-007
8 411 141 2509 WASHER SPR 2 2 804PD-110-008
9 411 141 3605 WASHER V 2X5X0.3 2 804PD-110-009
10 411 033 5700 SCR FLT 2.5X6 4 804PD-110-010
11 630 013 9754 BOLT,HEX-SCT 2 804PD-110-011
12 411 141 2905 WASHER SPR 4 2 804PD-110-012
13 411 141 4008 WASHER V 4X9X0.8 2 804PD-110-013
14 630 132 2087 NAME PLATE,INDEX 1 804PD-110-014
15 630 143 4346 NAME PLATE,INDEX 1 804PD-110-015
16 630 127 4546 SCR PAN+SW+W 3X6 1 804PD-110-016
17 630 133 5223 PLATE 1 804PD-110-017
18 411 002 2600 SCR FLT 3X6 2 804PD-110-018
19 630 136 6753 PLATE 1 804PD-110-019
20 411 113 4708 SCR FLT 4X10 2 804PD-110-020
21 630 149 6900 GUIDE 1 804PD-110-021
PD-1
DS-24320
0612-002
92
10
10
3
1
7
8
9
6
4
16
19
20
18
2
17
.
12
.
11
13
20
19
See Fig.Q-1
Key No.2
See Fig.Q-1
Key No.445
See Fig.Q-1
Key No.47
15
14
21
つなぎ目検出ユニット
SPLICING DETECTION UNIT
DS-44560 DS-44560
Fig. QD-1
44,56mm
幅テープフィーダ用
FOR 44,56mm TAPE FEEDER
