PTS-XPFL-02JE - 第284页
A XPF-L XPF-S XPF-L XPF-S XPF-L XPF-S XPF-L XPF-S ADEPJ8163 x1 GAUGE MASTER Vision processing color test jig ADNPJ8103 x1 BOX Nozzle Box ADEPJ8303 x1 AGGPJ8100 x1 BOX BOX Single Nozzle Box A1 A2 A3 A4 A5 A9 A6 A7 A8 A10 …
Transport bracket for MTU-A
MTU-A 搬送固定用部品 AGGWZ9080
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
1 GGWZ0040 4 BKT ＢＫＴ FE
2 H5384A 8 BOLT, HEX SOCKET ボルト 六角穴 M12X025 FE
3 W1027A 8 WASHER, LOCK ワッシャ スプリング 12M/M FE
4 GGWZ0050 1 BKT ＢＫＴ FE
5 H5384A 2 BOLT, HEX SOCKET ボルト 六角穴 M12X025 FE
6 W1027A 2 WASHER, LOCK ワッシャ スプリング 12M/M FE
7 W1048A 2 WASHER, FLAT ワッシャ 平 4W-12 FE
8 GGWZ0060 1 BKT ＢＫＴ FE
9 H5384A 2 BOLT, HEX SOCKET ボルト 六角穴 M12X025 FE
10 W1027A 2 WASHER, LOCK ワッシャ スプリング 12M/M FE
11 W1048A 2 WASHER, FLAT ワッシャ 平 4W-12 FE
12 H5384A 2 BOLT, HEX SOCKET ボルト 六角穴 M12X025 FE
13 W1027A 2 WASHER, LOCK ワッシャ スプリング 12M/M FE
14 W1048A 2 WASHER, FLAT ワッシャ 平 4W-12 FE
283
PTS-XPFL-02JE
A
XPF-L
XPF-S
XPF-L
XPF-S
XPF-L
XPF-S
XPF-L
XPF-S
ADEPJ8163 x1GAUGE MASTER
Vision processing color test jig
ADNPJ8103 x1BOX
Nozzle Box
ADEPJ8303 x1 AGGPJ8100 x1BOX BOX
Single Nozzle Box

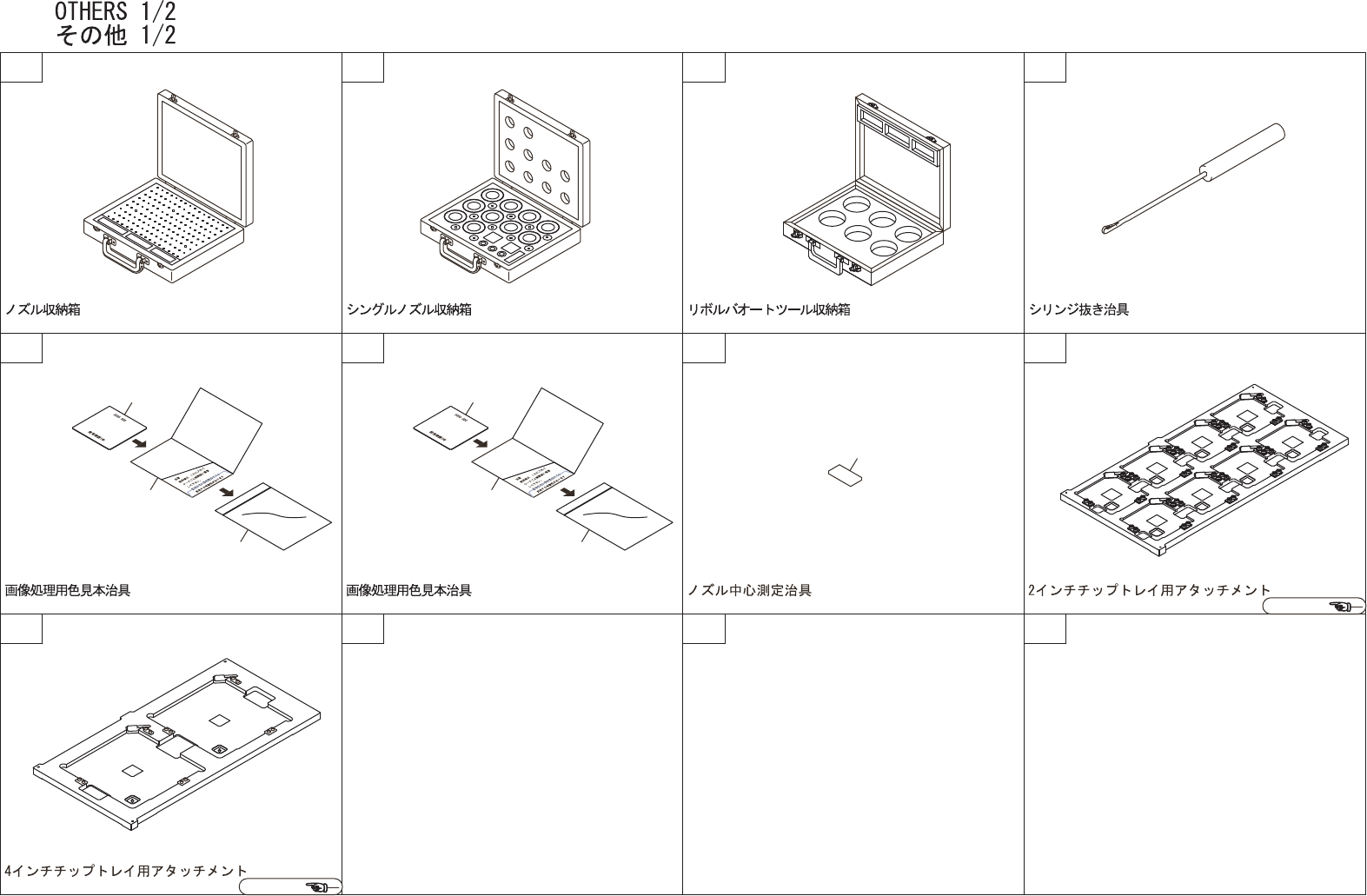

A1 A2 A3 A4
A5
A9
A6 A7 A8
A10 A11
A12
DEPJ0113
DEPJ0062
H3046E
XPF-L
XPF-S
ADNPJ8030 x1GAUGE MASTER
Vision processing color test jig
ADNPJ8040
DNPJ0380
H3046E
XPF-L
XPF-S
DEAJ1031 x1 AGGTS8190 x1GAUGE
Nozzle center calibration jig
XPF-L
XPF-S
ATTACHMENT
DEAJ1031
Revolver Auto-Tool Box
XPF-L
XPF-S
N2150A x1NEEDLE
Syringe removal jig
DETAIL A8
AGGTS8200 x1
XPF-L
XPF-S
ATTACHMENT
DETAIL A9
Attachment for 2-inch Chip Tray
Attachment for 4-inch Chip Tray
284
PTS-XPFL-02JE
CGPJ1540
PP01870
A

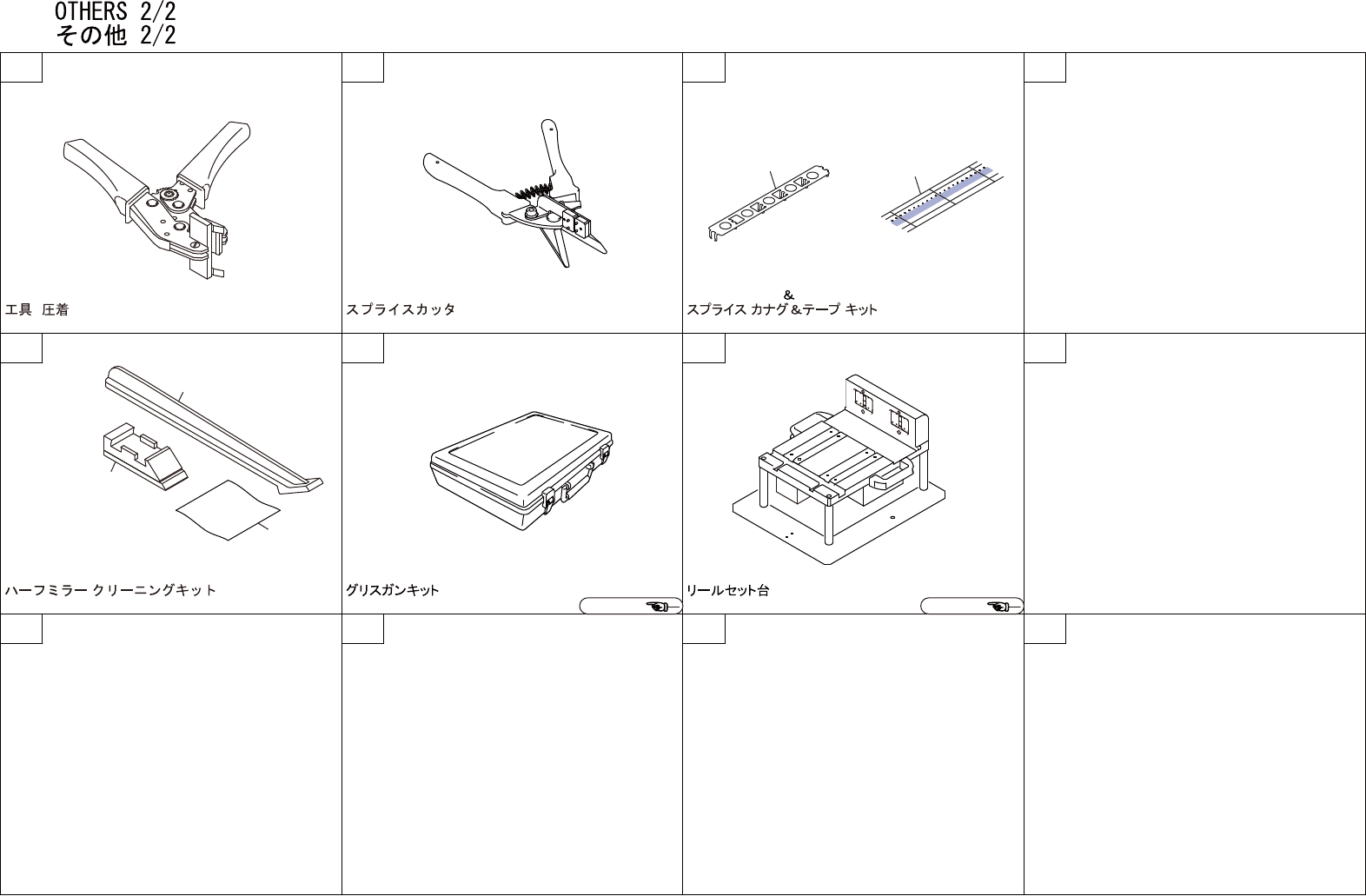

A13 A15A14 A16
A17 A18 A19 A20
A21 A22 A23 A24
CGPJ1530 x1CUTTER
Splicing cutter
XPF-L
XPF-S
WIPER ADNPJ8010 x1
XPF-L
XPF-S
Half mirror cleaning kit
DNPJ0260
ADNPJ8020
A4565T
AA41B01 x1TOOL, CRIMPING
Tool, crimping
ACGPJ8520 x1
Splicing fixture
tape kit
JIG
AA87512 x1JIG, INSPECTION
Feeder setting standFUJI grease gun kit
AWPJ8202 x1
GUN, GREASE
XPF-L
XPF-S
DETAIL A18 DETAIL A19
XPF-L
XPF-S
XPF-L
XPF-S
285
