31 Description Despite the highl y stable machine frame, slight distortions of the gan- try axes cannot alw ays be avoided. With the aid of the m apping proc- ess the high placem ent accur acy of the machine is preserved…

Description

In addition to correct positioning,

placement reliability is important.

On the SIPLACE S-25 HM this is

ensured through a number of con-

trol functions, such as vacuum

checks and component vision

testing during the placement se-

quence.

Out of tolerance components are

rejected, placed on the repair list

and automatically processed dur-

ing a repair cycle. An offset in the

position of the PCB relative to the

conveyor system (PCB vision) and

an offset of the X-axis, Y-axis or ro-

tation of the component relative to

the midpoint of the nozzle (com-

ponent vision) trigger an immedi-

ate correction to ensure placement

accuracy.

Since the PCB is fixed, the com-

ponents remain in the exact posi-

tion they are placed. The stationary

component table ensures a pre-

cise pick up. Options, such as the

component bar code scanner, can

be added to further enhance reli-

ability.

Placement errors

Placement errorsPlacement errors

Placement errors

Errors that occur after the compo-

nent has been placed on the PCB.

They include:

§ Component is missed on PCB

§ Too many components on PCB

§ Components not placed prop-

erly on PCB

§ Components placed while

standing on edge

Machine Criteria:

Placement Reliability

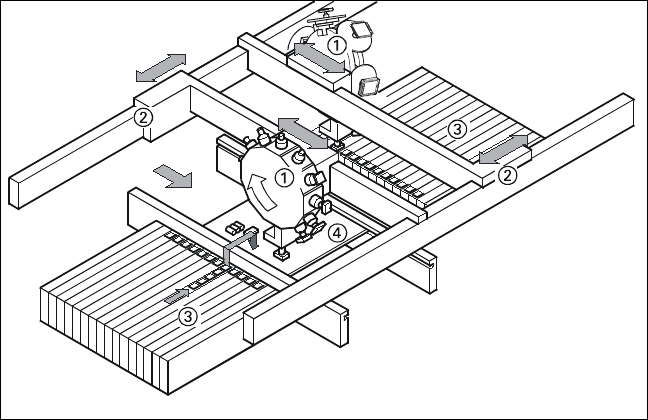

Placement Principle of SIPLACE S-25

➀ 6-Nozzle or 12-Nozzle

Collect & Place Head

➁ X-/Y-Gantry System

➂ Fixed Component Supply

➃ Fixed PCB

Description

Despite the highly stable machine

frame, slight distortions of the gan-

try axes cannot always be avoided.

With the aid of the mapping proc-

ess the high placement accuracy

of the machine is preserved

throughout its entire service life.

With this calibrating procedure,

which can be conducted quickly

and easily, the PCB camera recog-

nizes the fiducials on a mapping

calibration plate placed in its oper-

ating area. Any distortions are re-

vealed by comparing the nominal

grid on the glass plate with the ac-

tual grid “drawn” by placement

head. These distortions are taken

into account during all further posi-

tioning of X-/Y-axes and thus com-

pensated for.

Machine Criteria:

Mapping (Option)

Technical Data

Dimensions of the mapping

test plate

520 x 460 mm

(for single conveyor)

520 x 215 mm

(for dual conveyor)

Number of measurement

points

13 x 11 (standard resolution)

26 x 21 (high resolution)

Ambient temperature during

calibration + 20° ± 3°C

Components of the option Test plate (special glass)

Calculation data (disk)

Case for secure storage

Nominal Grid of Mapping Plate and Actual Grid with

Deviations Due to Gantry

Corrected

Position

Description

SIPLACE Pro is the programming

software for all SIPLACE place-

ment machines and placement

lines. It is designed to support the

stand alone capability, Siemens

line configuration and the seam-

less integration into a CIM envi-

ronment.

SIPLACE Pro is a client/server

software system that delivers out-

standing PCB programming per-

formance. It consists of the

SIPLACE Pro Server and Database

for centralized storing of all placing

programs in use and the SIPLACE

Pro Desk to assist all day to day in-

teractions with SIPLACE place-

ment machines.

SIPLACE Pro runs on standard

hardware (PC). It is based on Win-

dows NT with tree controls, drag

and drop as well as all standard

Windows NT features.

It works directly on the placement

system itself for operator interac-

tion, or any PC – standing alone or

connected to the LAN of the

SIPLACE line. SIPLACE Pro has

features for monitoring, program-

ming, line balancing and set-up

optimization. Thus a separate line

computer is no longer necessary.

But for offline programming the

SIPLACE Pro software can be run

on a separate standard PC as well.

With its powerful and enhanced

graphical user interface SIPLACE

Pro offers programmers and day

to day users

For more detailed information

please see “SIPLACE Software

Specification”.

SIPLACE Software Architecture:

SIPLACE Pro

Functions

SIPLACE Pro Server and

Database

Data Preparation

Optimization

Line control

Line monitoring

Data management

Softwareversion SIPLACE Pro 1.3

SIPLACE Pro Desk

Machine control

Machine monitoring

Machine operation

Softwareversion From 503.xx

SIPLACE Pro Server and

Database

SIPLACE Pro Desk
