ACT - Accurac y Check Tool / User Manual 09/2015 Edition 10 2.2.2 Individual Component s in the ACT Set Measuring plate (glass plate) in met al frame ( Figur e 2-1 and Figure 2-2 ): The glass compone nts and the measuri …
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
9
2.2.1 Options / Spare Parts
Item description Item number Quantity
Glass component CC02-005 (single) 00338002-01 Glass component (single)
Glass component CC07-500 (single) 00338000-02 Optional glass component
(single)
1)
Cerampads 2x2 mm in blister tape (for
use in dust-free rooms)
03116117-01 Reel with 2 500 components
Base ACT magazine, complete 03069924-01 Empty magazine (tray) without
cover
Cover for ACT magazine, complete 03069888-01 Cover for ACT magazine (tray)
Cover for glass plate, complete 03056782-01 Cover for glass plate
(Calibration Board)
Light plate 03056307-01 Plate on the underside of the
glass plate
Knurled screw DIN 464 M4 x 16 03031104-01 For closing the glass plate
Knurled screw DIN 464 M4 x 12 03031103-01 For closing the magazine (tray)
Tray in Conveyor for ACT option See chapter 5
Consists of:
Tray glass1, complete 03058749-01 Empty tray with space for 117
glass components of size
18x18 mm
Cover for tray AVS, complete 03063446-01 Cover for tray mentioned
above
Knurled screw DIN 464 M4 x 12 03031103-01 For closing the magazine (tray)
Long adapter (4 knurled screws
included)
03056010S01 For connecting tray and glass
plate (for single lane conveyor)
Table 2-3: Options / Spare parts
NOTICE
1)
Optional glass components CC07-500
The optional CC07-500 glass components, item no. [00338000-02] were offered as
option for measuring the SST25 (FC camera) up to station software version 707.1.
As of station software version 707.1 and SIPLACE Pro 11.x, this component is not
supported anymore.
Instead, a component description CC02-05_FC is available in SIPLACE Pro as of
version 11.x.
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
10
2.2.2 Individual Components in the ACT Set
Measuring plate (glass plate) in metal frame (Figure 2-1 and Figure 2-2):
The glass components and the measuring plate are kept in a storage case.

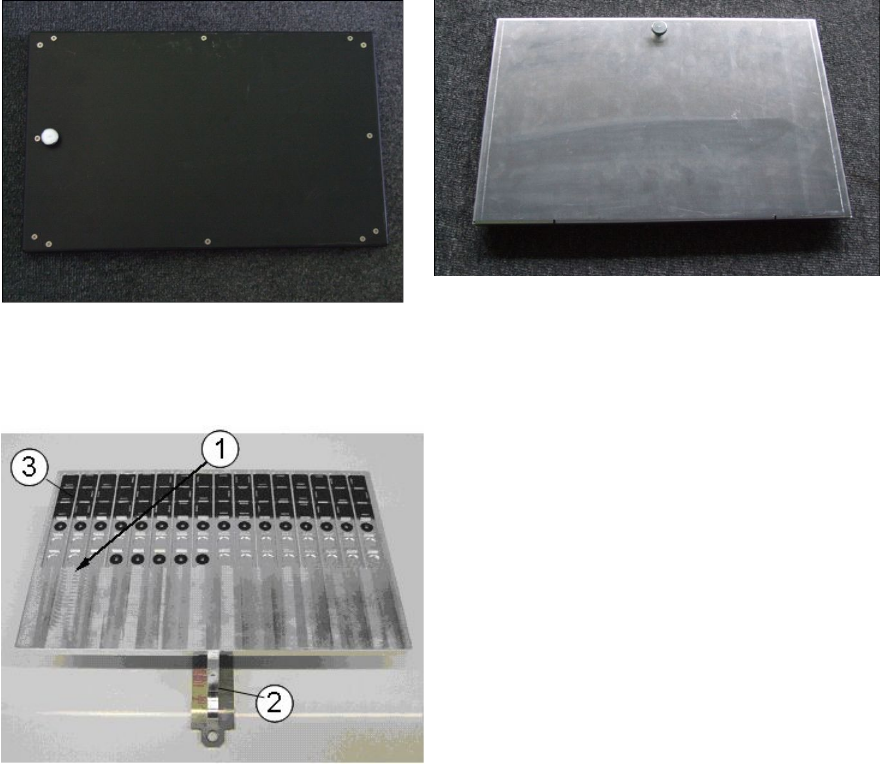

Figure 2-1: Storage case for measuring plate Figure 2-2: Storage case for glass components
The glass components used for ACT are placed in the milled divisions in the waffle pack tray
(Figure 2-3).
Figure 2-3: Waffle pack tray for glass components
Key:
(1) Waffle pack tray
(2) Waffle pack tray carrier
(3) Glass components
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
11
Figure 2-4: Manual waffle pack tray holder for S-table (carrier) for the glass components
Figure 2-5: Manual waffle pack tray holder for X-table (carrier) for the glass components
Figure 2-6: Measuring plate for ACT
