ACT - Accurac y Check Tool / User Manual 09/2015 Edition 35 ► Drag the selected t able to the requir ed location. ► Use the empty tables to create a setu p for ceramic pads, for instance. NOTICE If you create a set up wi…
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
34
Available S-tables:
Available X-tables:
Available tables (setups) for WPC/MTC:
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
35
► Drag the selected table to the required location.
► Use the empty tables to create a setup for ceramic pads, for instance.
NOTICE
If you create a setup with more than one table with ceramic pads, make sure that the
same component is not set-up at more than one location at the same time.
Predefined tables already exist for setting up the tray with the glass components.
NOTICE
● The X- and Y-offsets for the waffle pack trays on the tables have already been
entered! They may need to be corrected!
● The predefined Arbitrary Carrier tray holder should be left on track 21 and the ACT
X-table (Tray)holder should also be physically placed there. Otherwise, it is not
possible to pick-up with all segments (TH) on all machines.

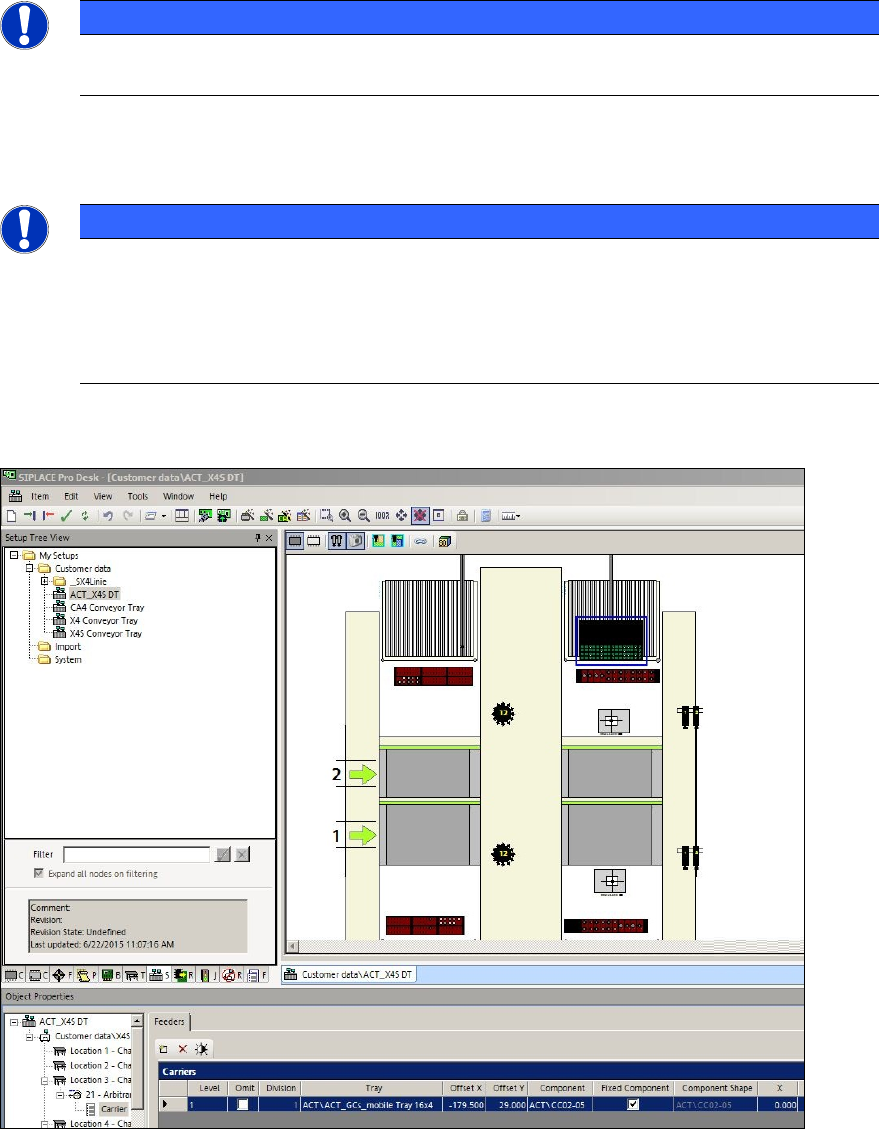

Figure 4-6 displays an example of a setup:
Figure 4-6: Setup on an X4 S with Twin Head at gantry 3. Waffle pack tray with 16x4 glass components (CC02-05) on an
X-table
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
36

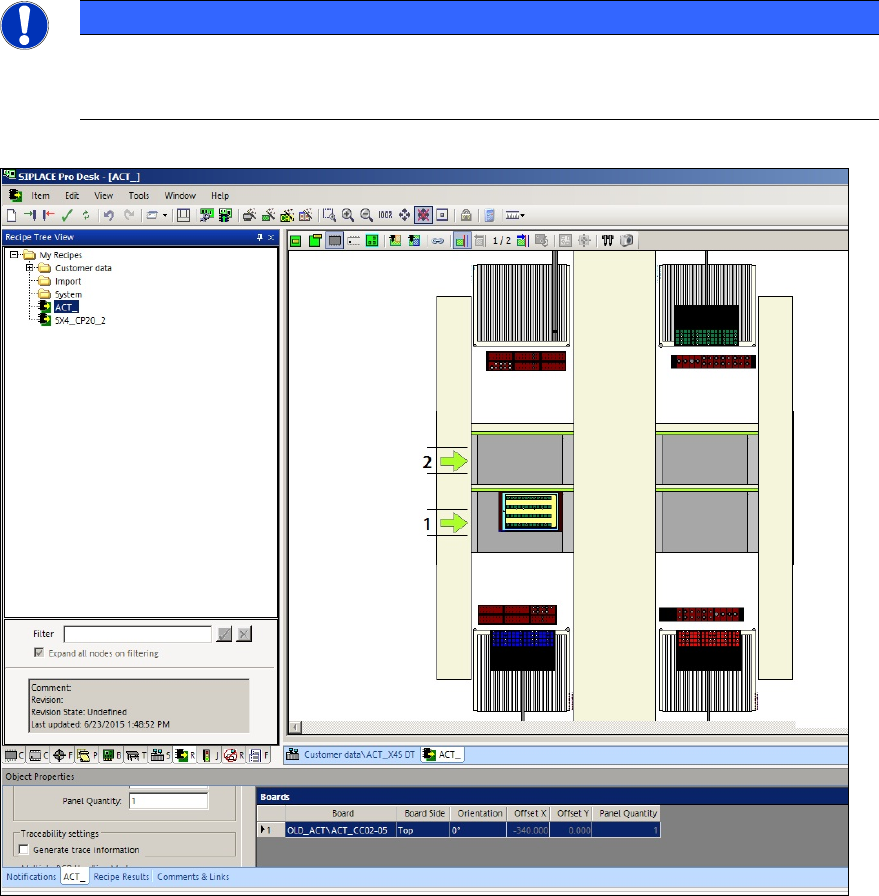

The next screen displays an example of a recipe:
NOTICE
The different ACT glass component types are displayed in different colors. For a
successful download to the station, the colors of the components in the tray and on the
board have to match each other. This is visible in the recipe.
Figure 4-7: Example of a recipe with ACT board and glass components (CC02-05)
► Make sure that the number of required nozzles is available in the nozzle changer for the head
to be measured, i.e. in accordance with the number of segments of the head to be measured.
