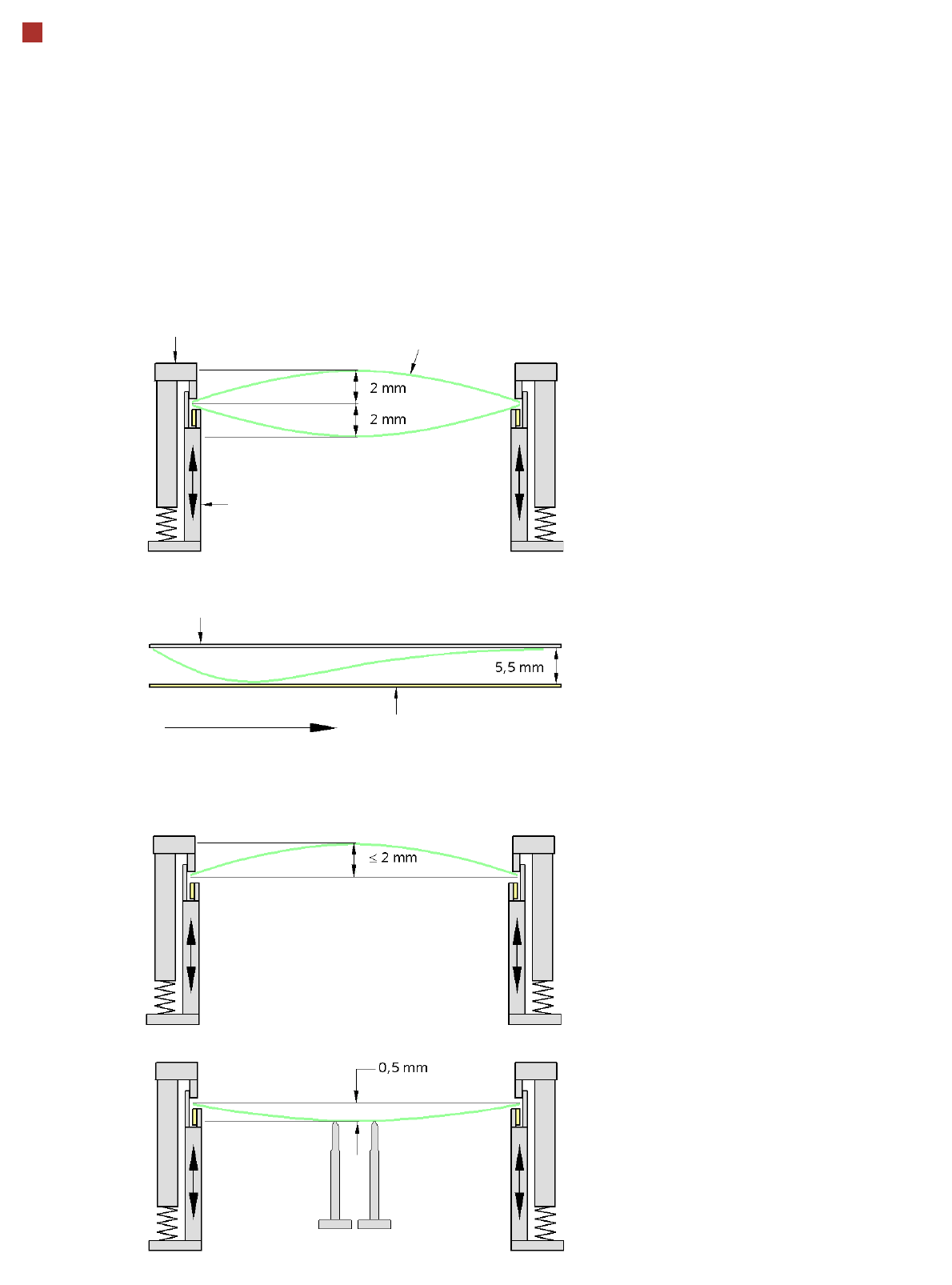

PCB Warpage

PCB warpage across the direction of travel

max. 1 % of the PCB diagonal, but not

exceeding 2 mm

PCB warpage on the conveyor

PCB warpage during placement

PCB transport direction

PCB warpage downwards max. 0.5 mm

Use the magnetic pin supports, to achieve

this value.

Conveyor belt

Fixed clamped edge

PCB warpage in direction of travel

+ PCB thickness < 5.5 mm

Fixed clamped edge

Movable clamping device

When there is warpage under 2 mm, the

inkspots in the center of the board are also

within the focus of the digital camera. When

all the tolerances are taken into account,

this value is reduced to 1.5 mm.

You should also note that the warpage

reduces the component height.

Magnetic pin support

PCB

Component Feeding

SIPLACE DX Table

In its default configuration,

the SIPLACE DX1/DX2 has

two DX tables which, if used

with SIPLACE 2x8mm X

feeder modules, can be set

up to achieve capacity of up

to 60 tracks for accommodat-

ing component types. Feeder

modules can be torn down or

added to the configuration

even during ongoing place-

ment.

External setup tables, which

can be equipped with a sin-

gle-track feeder module-

energy interface, help to sup-

ply the feeder modules with

materials. These are then

easily and quickly docked

into the machine.

The component feeders are

at rest during the placement

process - allowing tapes to

be spliced without stopping

the machine.

With the help of an optional

component barcode reader

and the Setup Center option,

the barcodes on the tape

reels can be read and

checked.

This ensures the correct

assignment of components

to tracks and the traceability

of PCB placement with the

Traceability software.

For safety reasons, unoccu-

pied locations are fitted with

so-called dummy feeder

modules.

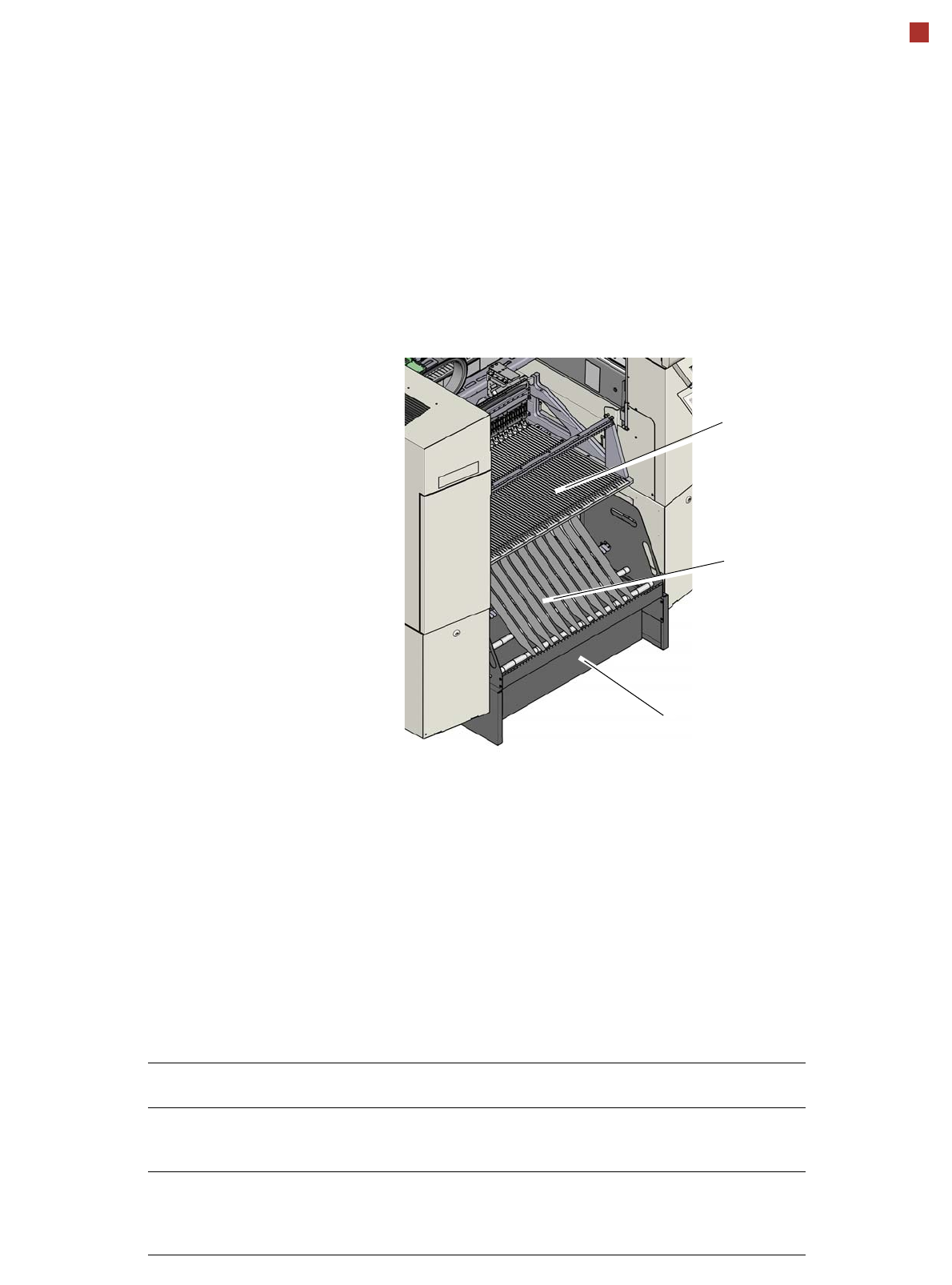

Tape container

Waste container for remaining empty tape

DX table

Technical Data

Tape reel diameter 178 mm to 381 mm diameter (7“ - 15“)

Locations for feeder modules

DX table with 60 tracks

DX table with 30 tracks

max. 30 feeder modules, each of 2x8 mm X

max. 15 feeder modules, each of 2x8 mm X

Max. component feeding

(Two

DX tables on the SIPLACE DX1/DX2)

When using a Waffle Pack Changer:

60 feeder modules, each with 2x8 mm X

45 feeder modules, each with 2x8 mm X

Component Feeding

SIPLACE DX Changeover Table (Option)

DX Changeover Table

The DX changeover tables

are independent and easily

maneuverable modules. The

SIPLACE DX machines can

accommodate two DX

changeover tables, each with

60 tracks. If a WPC5/WPC6

is set up at one of the loca-

tions, the other location can

accommodate a DX change-

over table with 30 tracks.

Just like the fixed DX tables,

the DX changeover tables

are optimized for the use of

2x8 mm SIPLACE tape

feeder modules when using

8 mm tapes. By using 30 of

these feeder modules, you

can achieve a full setup

capacity of 60 8mm tracks.

The tape reels are taken up

into the tape container of the

DX changeover table. A cut-

ting device on the machine

automatically cuts the used

tape material. The DX

changeover tables can be

set up directly on the

machine or at an external

setup area with feeder mod-

ules. The benefits of offline

setup are that the configura-

tions can be prepared with-

out stopping the line.

This allows the setup to be

changed very quickly using

the DX changeover table

principle.

The SIPLACE DX change-

over table also support fast

setting up and tearing down

of feeder modules even dur-

ing the placement process.
