Component Feeding

X Tape Feeder Modules

SIPLACE X tape feeder

modules are intelligent tape

feeder modules for flexible

production environments,

which simplify upgrading and

conversion tasks consider-

ably. All SIPLACE X feeder

modules support tape splic-

ing as a standard, which pre-

vents machine stoppages

when refilling.

The benefits at a glance:

Conversion-friendly

• The SIPLACE X tape

feeder modules are

designed as single-track

feeder modules. This min-

imizes any restrictions

during conversion.

• Omega profiles on the

tape feeder module and

table facilitate safe and

reliable upgrading and

conversion of tape feeder

modules during ongoing

production.

Robust

• Brushless motors extend

the service life of the X

tape feeder modules.

Intelligent

• A unique tape feeder mod-

ule ID ensures a precise

assignment of the compo-

nent to the tape feeder

module. This makes reli-

able setup verification

very simple.

• Component pitch, feeder

speed and other functions

are automatically set

when the setup program is

downloaded.

High feeding accuracy

• Closed loop control path

measurement ensures

highly accurate compo-

nent feeding, even for

01005 placements.

Operator-friendly

• Contactless data and

power transmission make

it easier to attach/remove

the tape feeder modules

• A menu-controlled LCD or

LED display supports the

user with current informa-

tion.

• A multicolor status display

signals the operating sta-

tuses of the X tape feeder

module:

- Green: "Ready for

operation/in cur-

rent setup"

- Orange: "Compo-

nent runs empty"

- Red: "Malfunc-

tion"

- LED off: "Tape

feeder module is

not in current setup

and can be torn

down"

a) 01005-compliant

b) In 4mm increments

Technical Data

Tape feeder

module

L x H

[mm]

Width

[mm]

Loca-

tion

Transport

increment

[mm]

Max. tape

height

[mm]

8 mm X

587x200 10.8 1 1/2/4/8 3.5

2x8 mm X 587x200 22.9 2 1/2/4/8 3.5

12 mm X 587x200 22.6 2 4 - 16

6.5

Smart Feeder 12 mm 587x200 22.6 2 4 - 16

16 mm X 587x200 34.4 3 4 - 20

Smart Feeder 16 mm 587x200 22.6 2 4 - 20

24 mm X 587x200 34.4 3 4 - 32

32 mm X 587x200 46.2 4 4 - 40

44 mm X 587x200 58.0 5 4 - 52

56 mm X 587x200 69.8 6 4 - 64

72 mm X 587x200 81.6 7 4 - 80

88 mm X 587x200 105.2 9 4 - 96

Tape reels 178 to 483 mm in diameter (7“ - 19“)

Changeover time 8 s

Component Feeding

Alternative SIPLACE Feeder Modules

Technical Data

Linear vibratory feeder,

type 3

Packaging style

track number and width of

tracks

Stick magazines

DX table for SIPLACE

DX1/DX2

3 x  9.5 mm

2 x  15 mm

1 x  30 mm

Occupies 3 locations of an

8 mm X feeder module

Linear Dipping Unit

(LDU X)

for DX tables used with the

SIPLACE DX1/DX2

Occupies 9 locations of an

8 mm X feeder module,

max. 1 per head

SIPLACE Glue Feeder Occupies 5 locations of an

8 mm X feeder module,

max. 1 per head

a) With X adapter

Description

Linear vibratory feeders pro-

cess components in stick

magazines. These can be

easily configured with the X

adapter for use with the DX

table for the SIPLACE DX1/

DX2. They can be refilled

without stopping the

machine. The X adapter also

allows you to set up the label

presenter and the reject

conveyor on the X compo-

nent trolley. The LDU X is

suitable for dip fluxing of flip

chips, CSP (Chip Scale/Size

Packages) and for coating

flip chip bumps with isotropic

conductive adhesive.

The SIPLACE Glue Feeder

allows you to position dots of

adhesive on a component,

before it is placed.

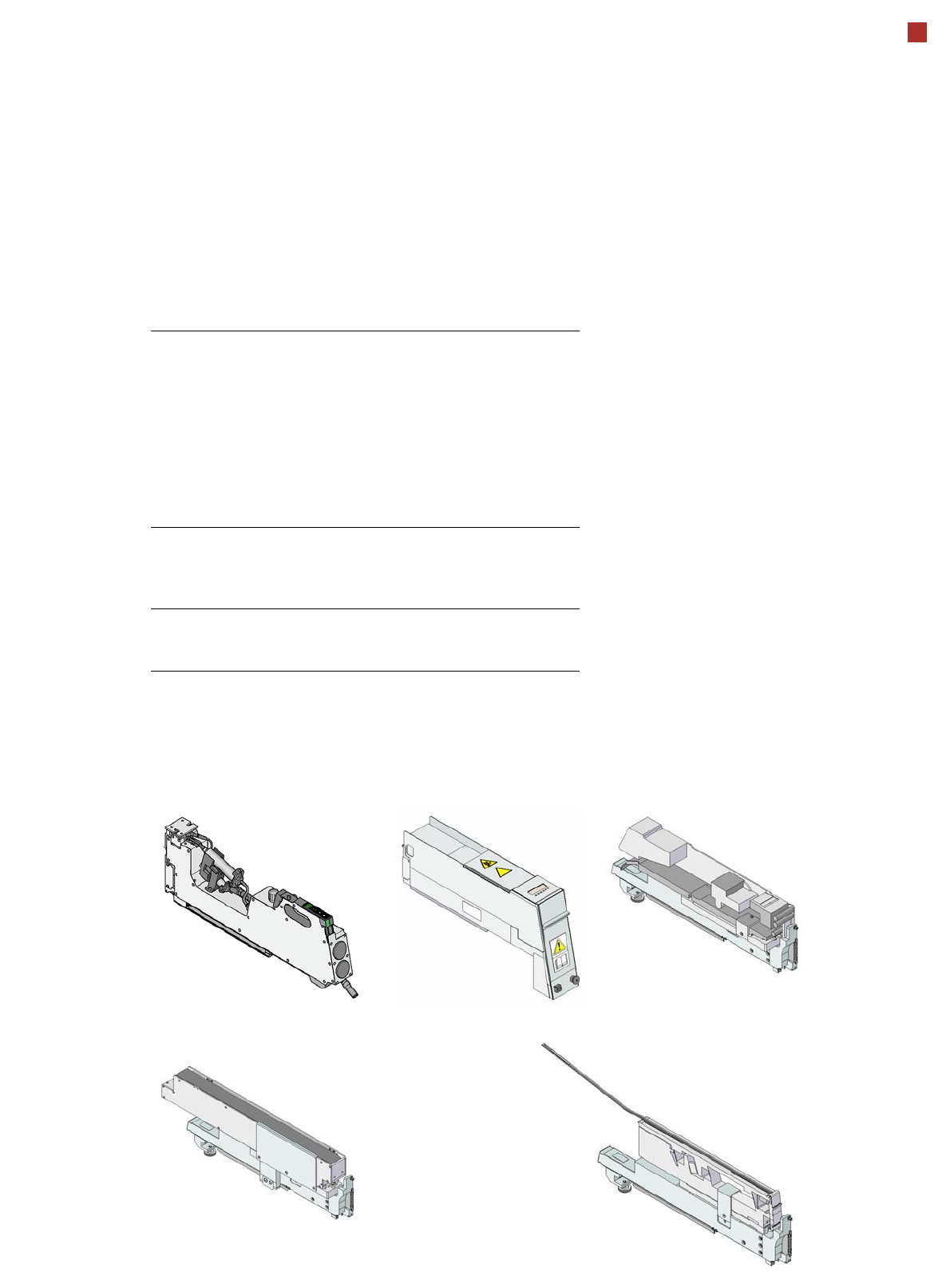

Reject conveyor

with X adapter

SIPLACE Glue Feeder

Linear vibratory feeder, type 3

with X adapter

Linear Dipping Unit

(LDU X)

Label presenter with X adapter

Component Feeding

Waffle Pack Changer (WPC5/WPC6)

If you need to prepare com-

ponents in multiple waffle

pack trays for the placement

process, we recommend the

use of a Waffle Pack

Changer (WPC5 or WPC6)

for automatic magazine

(tray) changing.

The WPC setup is coordi-

nated with the placement

sequence to ensure optimum

use of distances and time.

The magazine storage unit

with waffle pack trays moves

in a vertical direction, until

the required magazine is in

the access range of the feed

axis.

The horizontal feed axis

transports the waffle pack

tray from the tower into the

access range of the place-

ment head. The first maga-

zine is made available as

soon as a PCB moves onto

the PCB conveyor, and valid

panel and setup data is avail-

able. All magazine changes

are performed within the

placement cycle time. Jedec

magazines can be refilled

without machine stoppages.

Faulty components are sim-

ply placed back in the origi-

nal magazine.

The Waffle Pack Changer

can be used together with

the (C&P20).

WPC6

However, the WPC6 also

has a nonstop module. This

enables the user to refill waf-

fle pack trays during ongoing

operations. The nonstop

module facilitates opening of

the loading flap during opera-

tion, for insertion of waffle

pack trays. Additional func-

tions in SC version 704 and

higher allow component fill-

ing levels to be updated or

individual levels to be manu-

ally refilled.

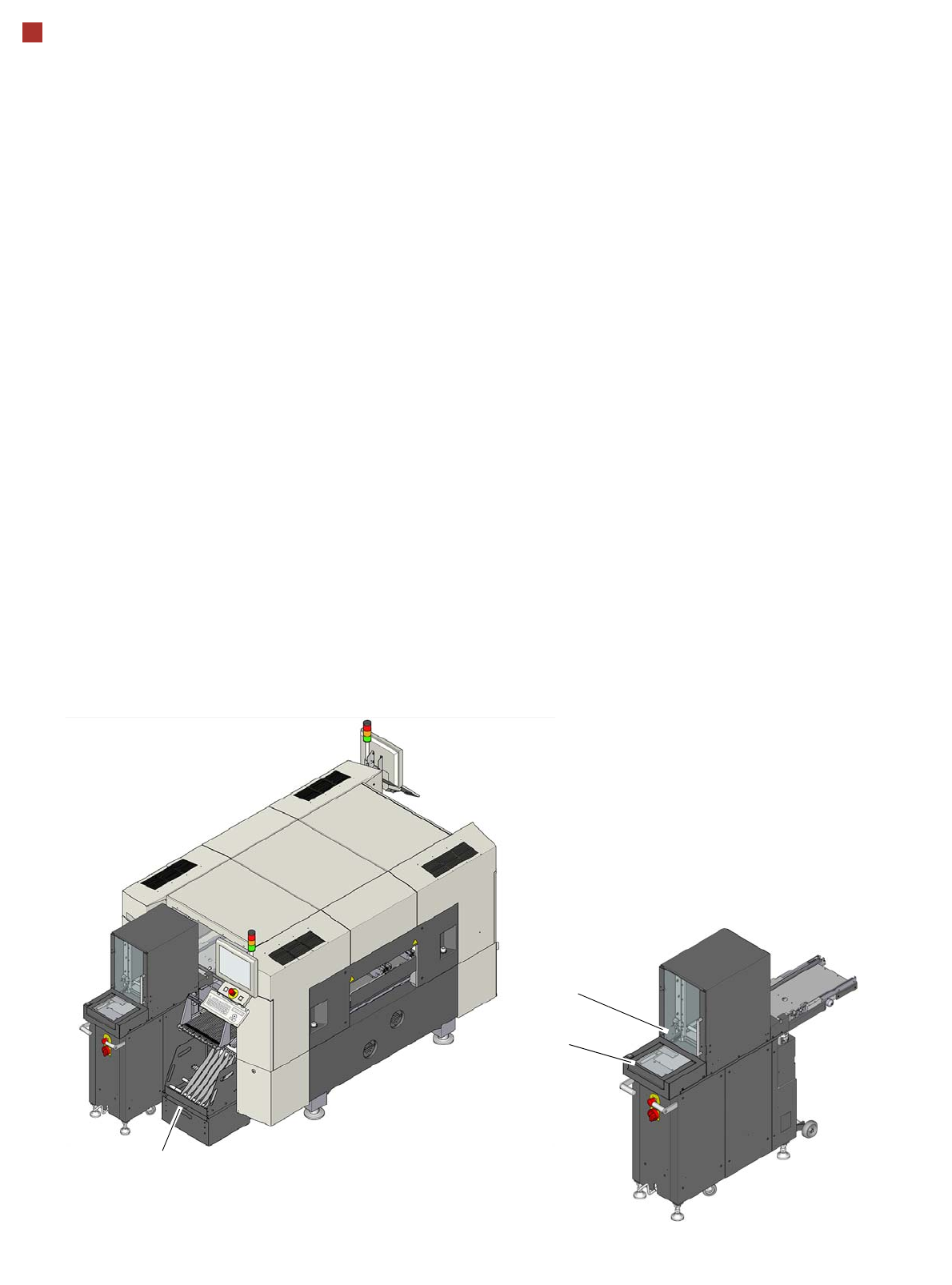

Location with 30 tracks next to the

WPC

Waffle pack tray storage

unit

WPC6

Nonstop module

WPC6
