55 Technical Data Placement System Center of Gravity X = 0 mm Y = 0 mm Z = 738.5 mm
54
Technical Data

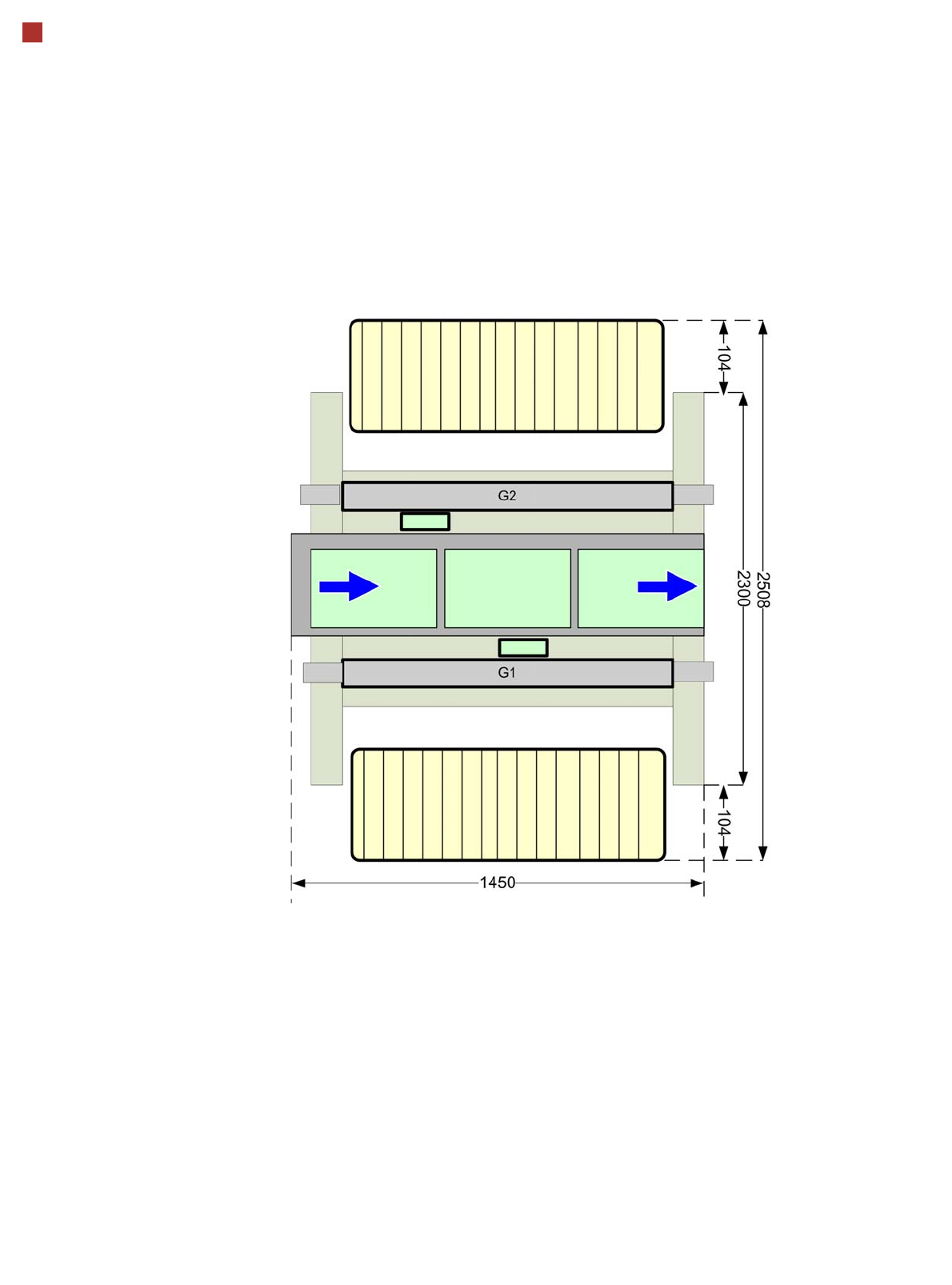

Placement System Dimensions
55
Technical Data

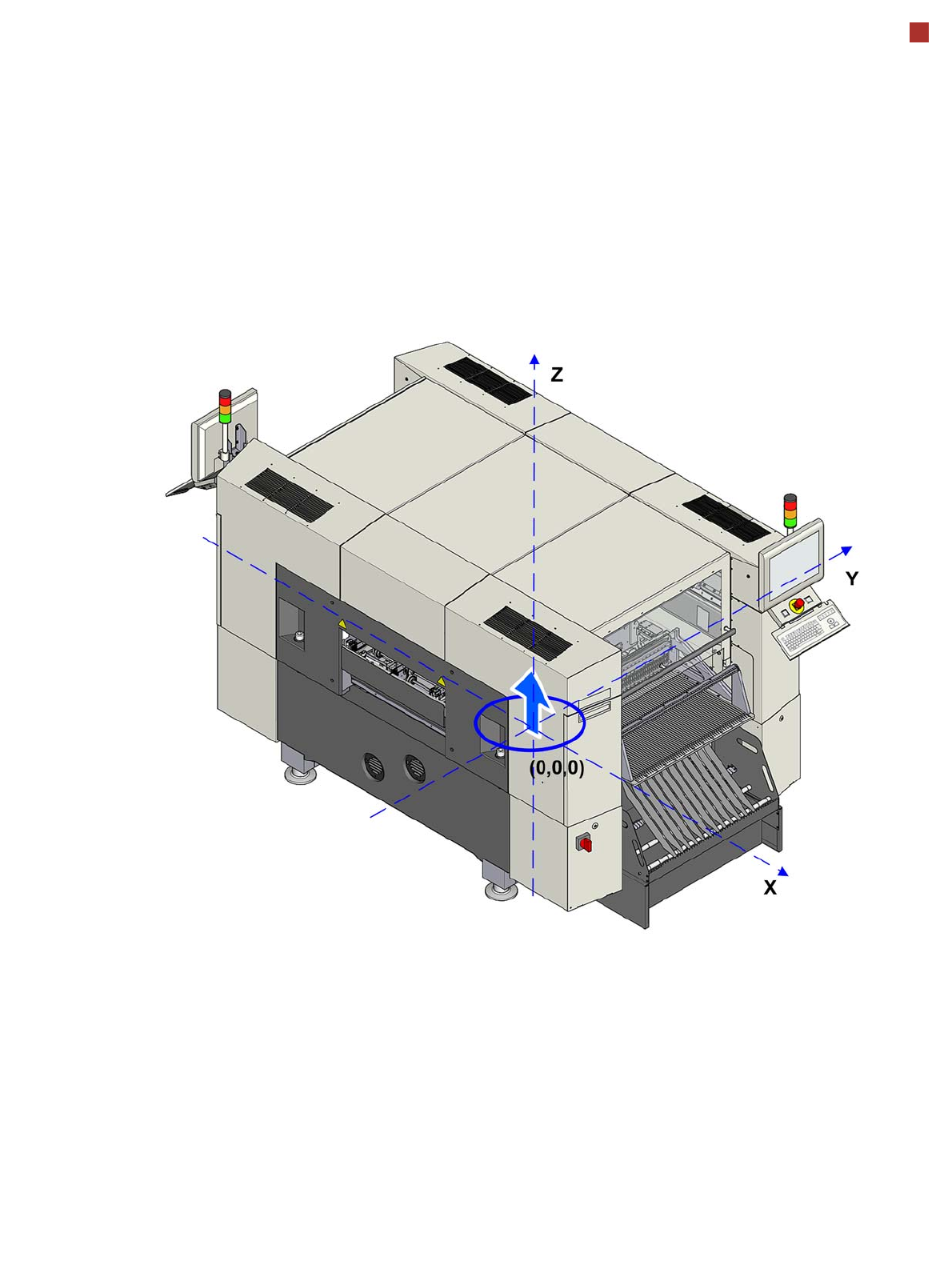

Placement System Center of Gravity
X = 0 mm
Y = 0 mm
Z = 738.5 mm
56
Technical Data

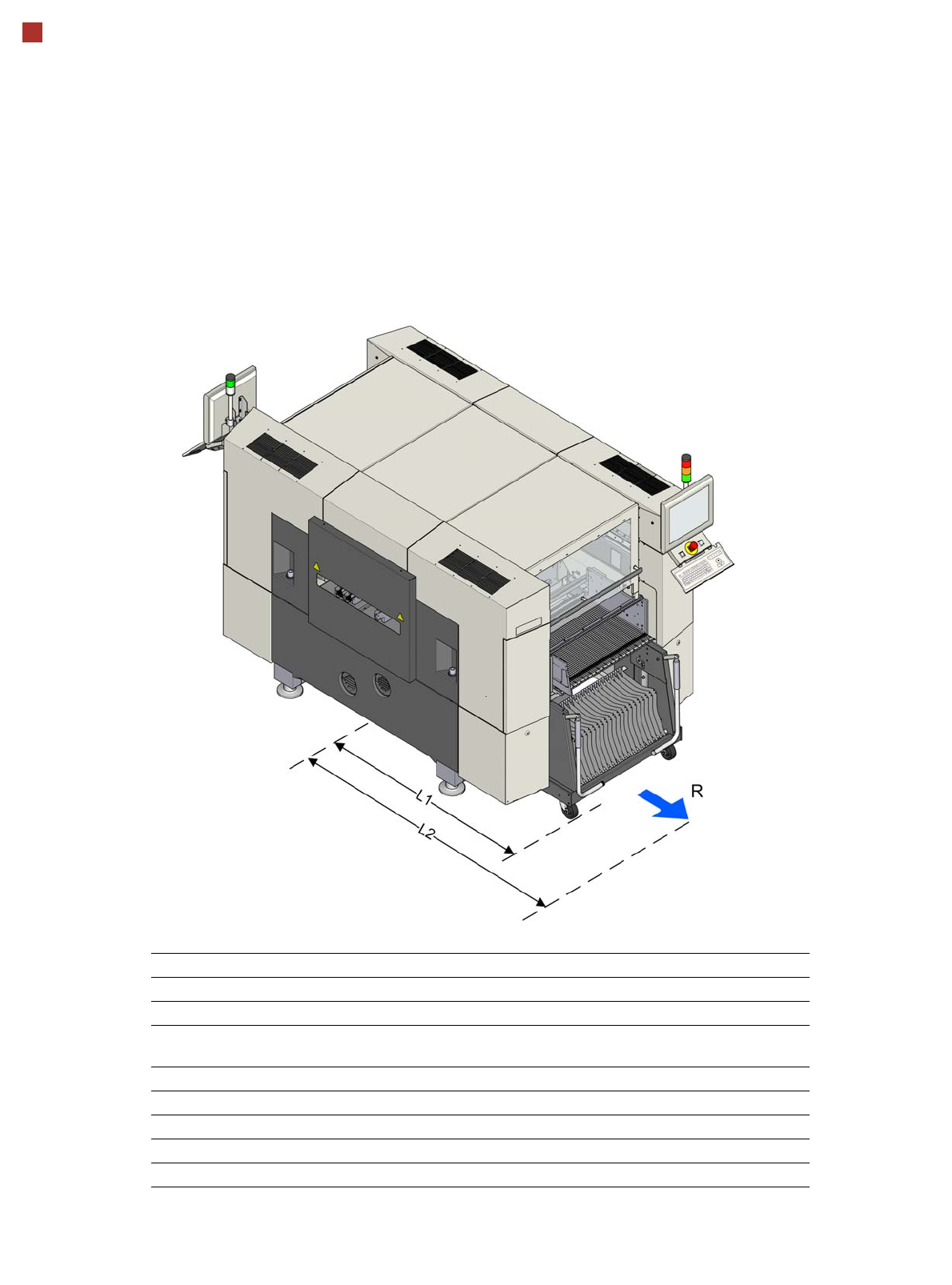

Maneuvering Radii for DX Changeover Tables
Component trolleys Location 1 (outside) Location 2 (inside)
Maneuvering radius R
Handles folded out 2950 mm 2825 mm
Distance L1: Machine center to outer edge of component
trolley
Handles folded in 1300 mm 1175 mm
Handles folded out 1750 mm 1625 mm
Distance L2: Machine center to wall
Handles folded in 2060 mm 1935 mm
Handles folded out 2950 mm 2825 mm
