Overview of Technical Data

Maximum Values

Placement performance

IPC value

Benchmark value

Theoretical value

a) Definition of performance values see page 12.

48,000 comp./h

60,000 comp./h

67,750 comp./h

Component spectrum 01005 - 200 mm x 110 mm

Placement accuracy

Angular accuracy

b) Accuracy values measured in accordance with vendor-neutral IPC standard.

± 26 µm, ± 0.05° / (3),

± 35 µm, ± 0.07° / (4)

Feeder module types Tape feeder modules, waffle pack tray, linear

vibratory feeders, dip modules, application-

specific OEM feeder modules

Feeding capacity (component trolley) 60 tape feeder modules 2x8 mm X

Board format

(length x width)

c) Longer boards available on request

610mm x 560mm

PCB thickness 0.3 - 6.5 mm

PCB weight up to 5 kg

Camera 6 illumination levels

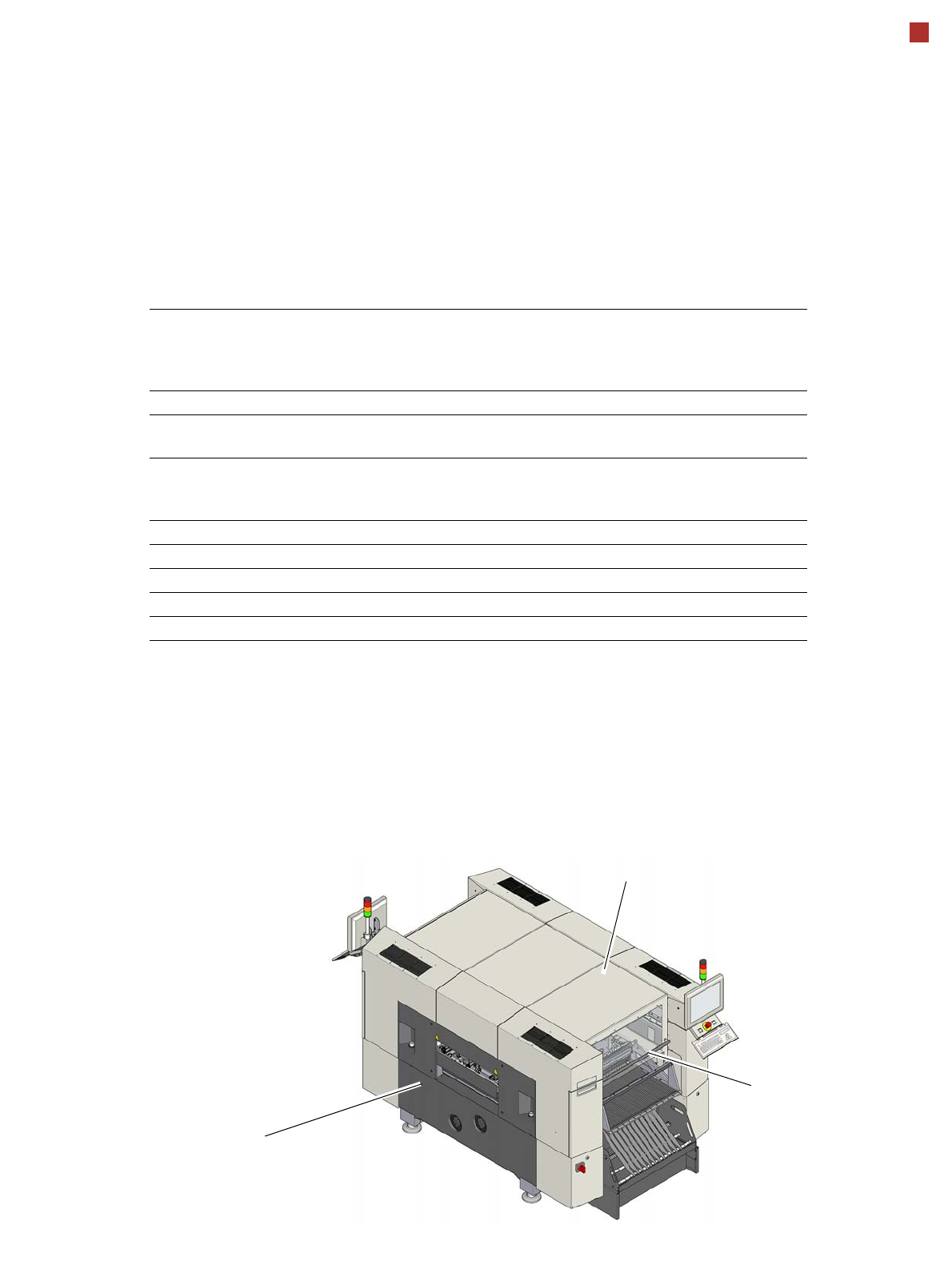

Machine frame: Graphite black

(RAL 9011)

Covers/protective covers: Light gray

(RAL 7047)

Machine colors SIPLACE DX1/DX2

Handles: Dark pearl gray

(RAL 9023)

Machine Description

Intelligent Placement Machine

The SIPLACE DX is the lat-

est innovation from the pio-

neering SIPLACE team. This

state-of-the-art, intelligent

production family is aimed at

electronics manufacturers

looking for highly reliable and

cost-effective placement

solutions. Designed specifi-

cally for the Asian market,

this new production line

offers dependable top qual-

ity, coupled with high place-

ment speeds, enhanced

configuration and component

spectrum flexibility and sim-

ple operation with a competi-

tive price/performance ratio.

We call this our

INTELLIGENT solution:

•INTELLIGENT

placement optimization

•INTELLIGENT

configuration strategies

•INTELLIGENT

operation

Intelligent Placement Opti-

mization

The SIPLACE DX1 and

SIPLACE DX2 supplement

the high-performance

SIPLACE DX4 with excellent

end-of-line features, guaran-

teeing a perfectly balanced

and utilized line. The

machines can be fitted with a

20 or 12 segment Col-

lect&Place head or with the

SIPLACE TwinHead for fast

and reliable placement of

special component shapes.

The highly robust and low-

maintenance SIPLACE

2x8 mm X feeder modules

and Waffle Pack Changer

(WPC) ensure speedy, reli-

able and accurate compo-

nent feeding.

The SIPLACE DX also uses

linear drives for all axes. This

technology facilitates and

supports highly accurate and

rapid placement.

Since the head and pickup

concepts of SIPLACE solu-

tions ensure a low derating

(which is the difference

between theoretically possi-

ble and real placement

speed), the real placement

performance is even more

impressive.

However, the performance of

the production line as a

whole is a more decisive fac-

tor for electronics manufac-

turers than that of individual

machines. This depends not

only on the hardware fea-

tures of the machine but

increasingly on the capacity

of the software used. The

software, particularly the

optimization of placement

programs, is one of the inter-

nationally recognized key

strengths of SIPLACE solu-

tions. The SIPLACE DX

range is no exception to this

and demonstrates its mus-

cles with the popular

SIPLACE Pro software,

which employs powerful opti-

mization algorithms to

ensure the best possible line

utilization.

The SIPLACE DX1 and DX2

solutions combine great line

performance with optimum

quality - while still retaining

top flexibility.

Machine Description

Intelligent Placement Machine

INTELLIGENT Configura-

tion Strategies

The SIPLACE DX supports a

wide variety of setup con-

cepts, despite the fixed table

installations. Intelligent

2x8mm feeder modules com-

plete the flexible configura-

tion concept. These can be

pre-configured at a separate

pre-setup area, away from

the line, and then linked to

the component reel via the

software (component kitting).

The complete feeder module

is then docked into the

machine where all configura-

tion details (e.g. component

type and pitch) are recog-

nized.

One example of intelligent

configuration strategies are

the customized SIPLACE DX

tables, on which the feeder

modules and components

are set up for the machine.

The financial benefit of fixed

tables on the SIPLACE DX

machine is coupled with

innovative software and the

intelligent SIPLACE X feeder

modules. This facilitates

implementation of highly flex-

ible setup concepts, with

minimum time required for

setup and product change-

overs.

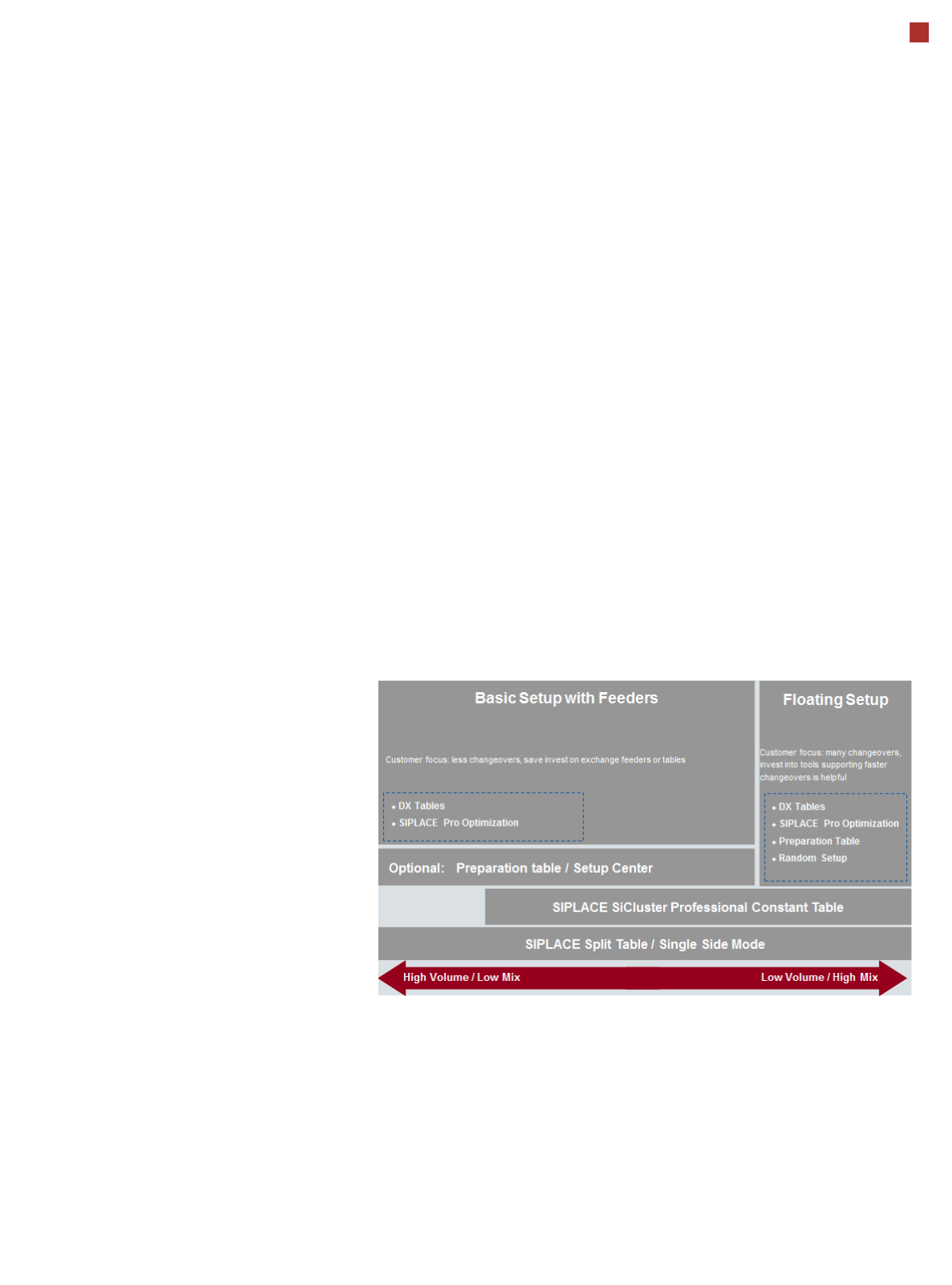

New in this class: the large

range of setup concepts

Fixed setups, family setups,

random setup, offline pre-

setups, split table mode and

much more: the high-perfor-

mance SIPLACE Pro and

SIPLACE Setup Center soft-

ware and the ability to

change SIPLACE X feeder

modules during ongoing pro-

duction, gives SIPLACE DX

users access to a range of

setup concepts previously

unknown in this price class.

Electronics manufacturers

will enjoy a new level of flexi-

bility, leading to a significant

reduction in setup change-

over times and the frequency

of related errors, thereby

achieving great line utiliza-

tion and enhanced efficiency

and productivity figures.
