60
Technical Data

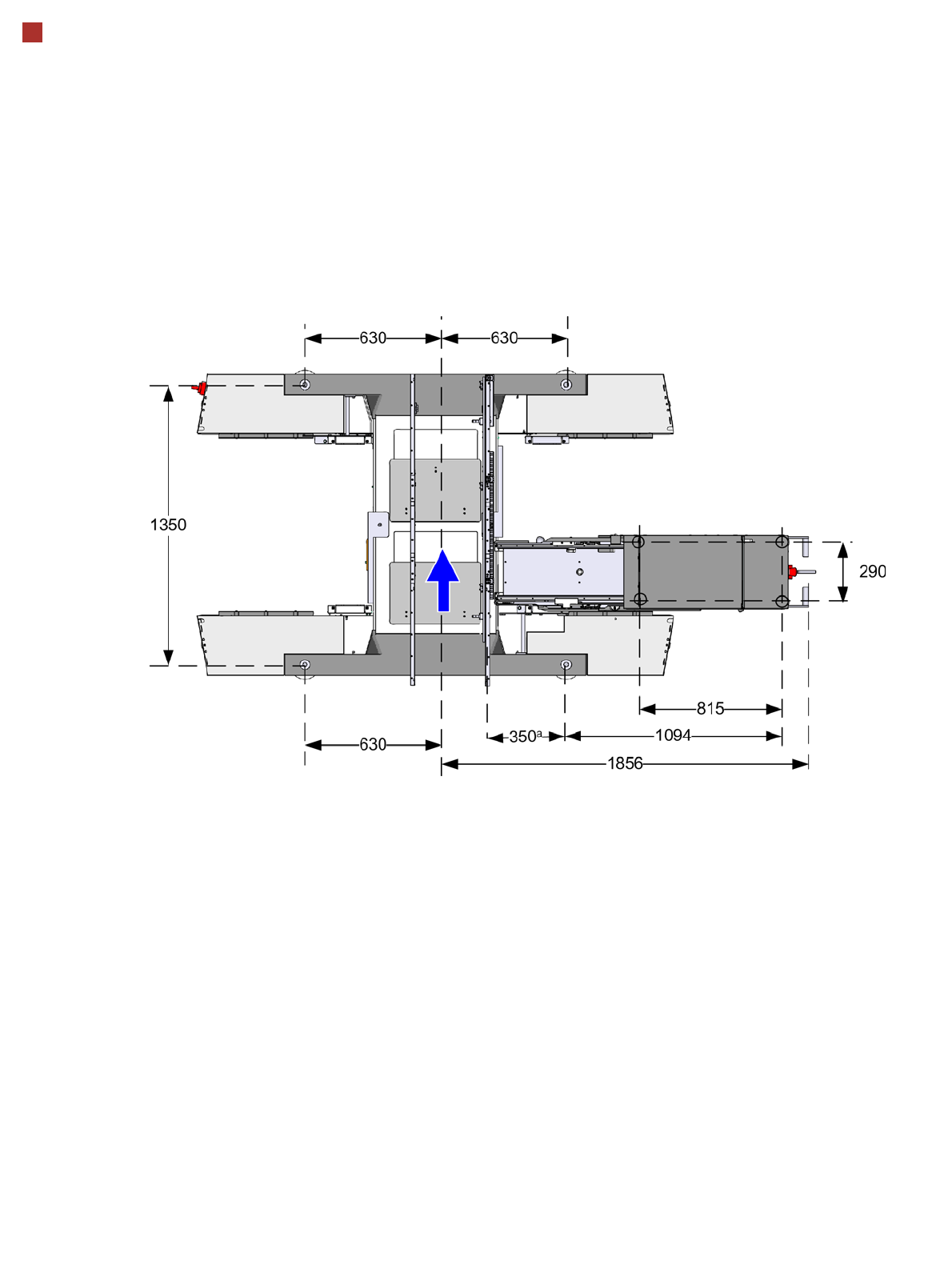

Distances for Machine with WPC5/WPC6
a) Fixed conveyor side at maximum right position. The value depends on the position of the fixed side.
All dimensions in millimeters.
61
Technical Data
Transport and Delivery Configuration
Description
Within Europe, the machine
is delivered on a robust
wooden pallet. If sent over-
seas, the machine is pack-
aged in a wooden crate.
Configuration when deliv-
ered
• The lane on the single con-
veyor is set to a width of
210 mm.
• Both keyboards, the oper-
ating panel and the moni-
tors are dismantled.
• The indicator lamp is dis-
mantled.

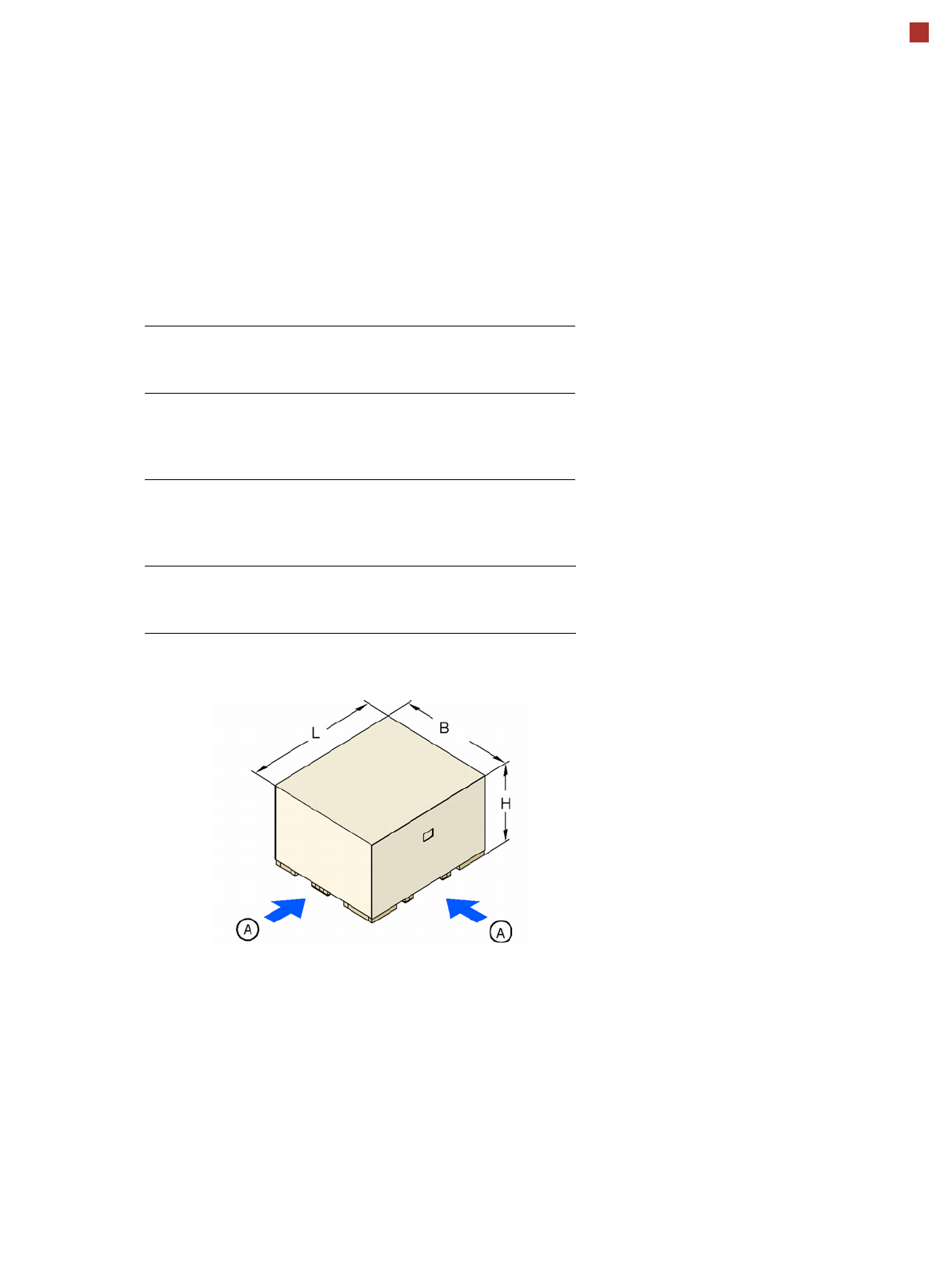

Transport dimensions and weight
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Length
Width
Height
2630 mm
1840 mm
1880 mm
Weight
DX1/DX2
Dispatch Dispatch
within Europe overseas
2500 kg 2800 kg
Fork length
Lifting power
Clear fork width
min. 1800 mm
min. 6000 kg
min. 350 mm
Attachment point
for the fork-lift
Attachment point
for the fork-lift
62
Standard Features
The following functions are included in the standard SIPLACE DX1/DX2 package:
Standard features DX1 DX2
Vacuum sensor X X
Force measurement X X
Fiducial & ink spot detection X X
Nozzle changer for the TwinStar X X
Set of TwinStar nozzles X X
Set of standard nozzles per head X X
Service box X X
Single conveyor, fixed edge right X X
Single conveyor, fixed edge left X X
Wide board
configuration
XX
Automatic electrical PCB width adjustment X X
Operation on both sides X X
LCD monitors X X
Touch-screen monitor X X
3-part signal lamp X X
Tape cutter with reject bin X X
Tape separating plates X X
01005 Placement X X
Support pins X X
