27
Component Feeding
SIPLACE X-Series Component Trolley
Description
The component trolleys are
stand-alone modules that
can be set up with feeder
modules at an external setup
area. Up to four component
trolleys can be docked onto
the machine. A component
changeover table can be re-
placed with just a short inter-
ruption of the production
process. The chassis runs
smoothly and is easy to
maneuver.
The changeover table has a
capacity of up to 40 locations
for 8 mm X tape feeder mod-
ules. The total capacity with
four component trolleys is
thus 160 tracks x 8 mm.
Dummy feeder modules are
used at unassigned locations
to protect the operators.
The component feeders are
at rest during the placement
process - allowing tapes to
be spliced without stopping
the machine.
With the help of an optional
component barcode reader
and the Setup Center option,
the barcodes on the tape
reels can be read and
checked, thus guaranteeing
that the components are allo-
cated to the correct tracks.
Location 1
Location 3
Location 2
Location 4
28
Component Feeding
SIPLACE Wafer System

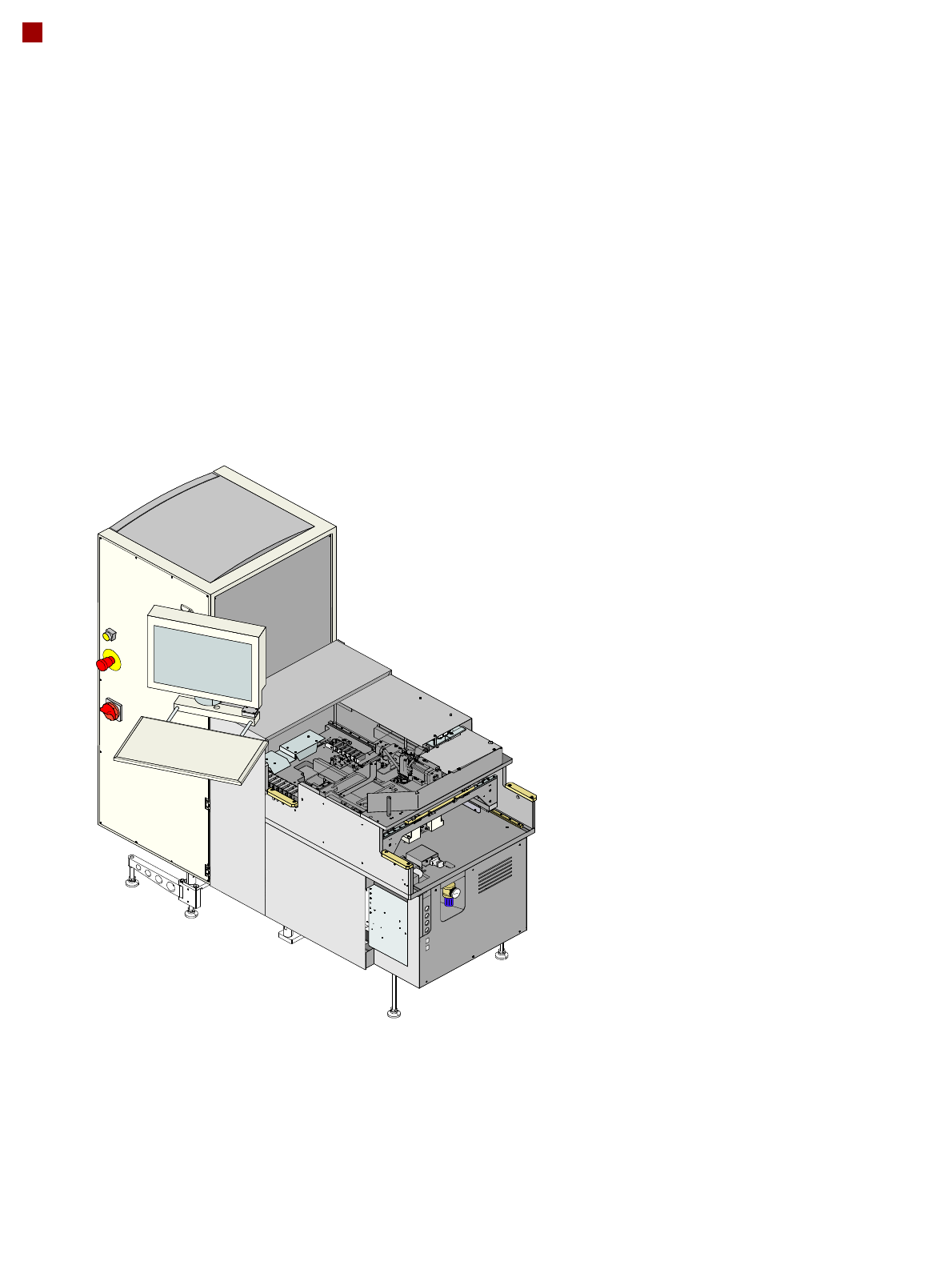

The new SIPLACE Wafer
System (SWS) provides a
fully automatic wafer and
chip handling system.
The SWS is completely inte-
grated into the locations of
the SIPLACE CA placement
system. Each location can be
equipped with an SWS or an
X table.
The SWS functions like a
feeder for the SIPLACE sys-
tem and transports the dies
from the wafer to a single,
fixed pickup position for the
placement head.
The placement head picks
the die up from the SWS and
places this on the board as
done during SMD handling.
The SWS is shown as a spe-
cial feeder type in SIPRO.
The SIPLACE CA system is
programmed as usual for the
SIPLACE X series.
The die handling is pro-
grammed via the SWS GUI.
The main parameters to be
programmed are as follows:
– Wafer and die dimen-
sions
– Die recognition
– Die ejection parameters
– Wafer map system
– Link to the component
programmed in SI-
PLACE Pro
