31 Component Feeding X Tape Feeder Modules SIPLACE X tape feeder modules are intelligent tape feeder mo dules for flexible production environments, which simplify upgrading and conversion tasks consider- ably. All SIPLAC…
30
Component Feeding
Component Trolley
Technical Data
SIPLACE X-Series Component Trolley
Length x width 752 mm x 592 mm
Height at
900 mm PCB conveyor height
930 mm PCB conveyor height
950 mm PCB conveyor height
890 mm
920 mm
940 mm
PCB conveyor height 900 mm ± 15 mm (option)
930 mm ± 15 mm (standard)
950 mm ± 15 mm (SMEMA option)
Weight
Without feeder modules
With feeder modules at all
locations
80.4 kg
139.6 kg
Reel diameter
Standard
Maximum
up to 432 mm (17“)
483 mm (19“)
Locations for feeder modules max. 40
Waste container
for pieces of used tape
Changeover table

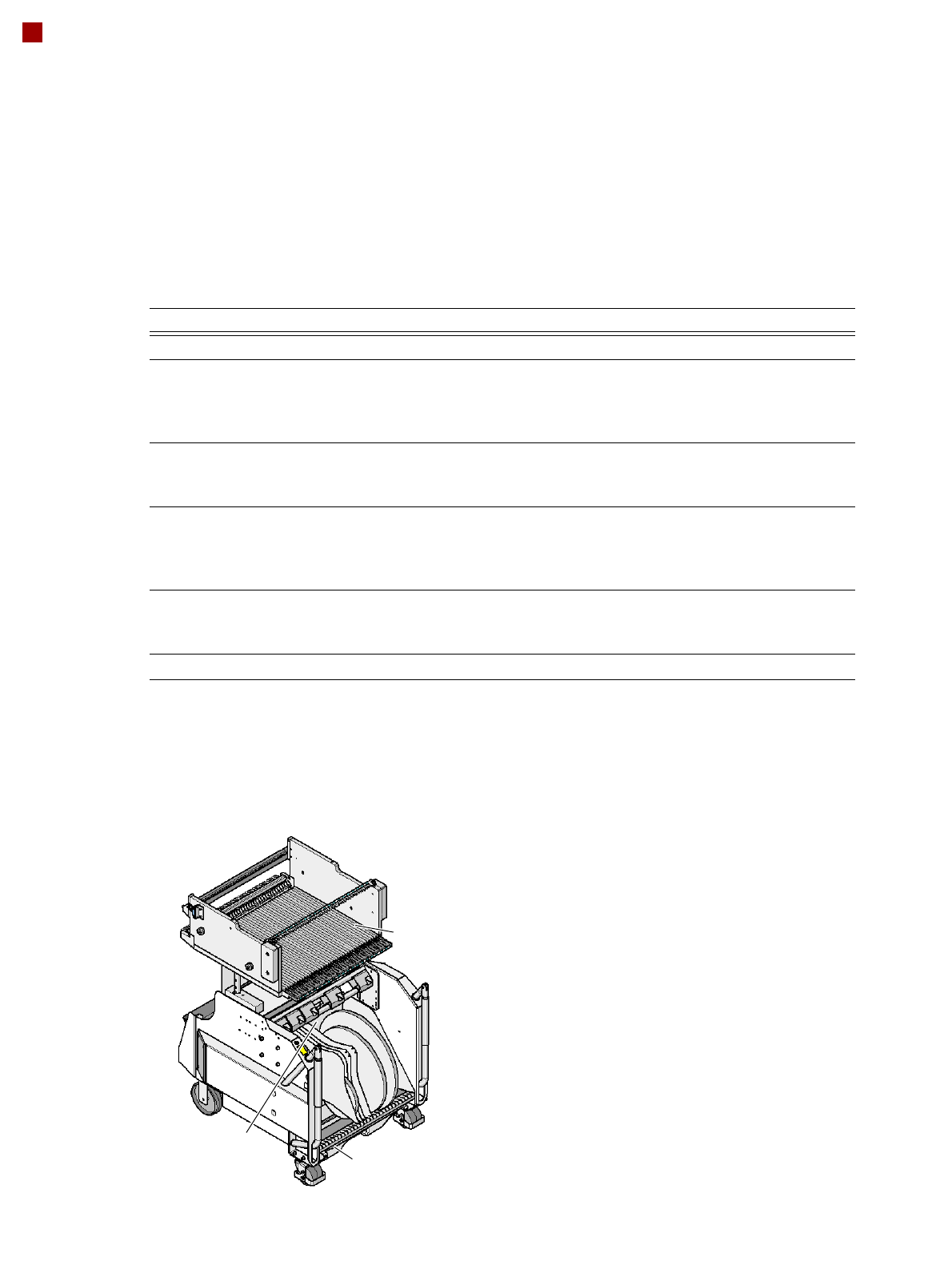

SIPLACE X-Series component trolley
Tape container
31
Component Feeding
X Tape Feeder Modules
SIPLACE X tape feeder
modules are intelligent tape
feeder modules for flexible
production environments,
which simplify upgrading and
conversion tasks consider-
ably. All SIPLACE X feeder
modules support tape splic-
ing as a standard, which pre-
vents machine stoppages
when refilling.
The benefits at a glance:
Conversion-friendly
• The SIPLACE X tape
feeder modules are
designed as single-track
feeder modules. This min-
imizes any restrictions
during conversion.
• Omega profiles on the
tape feeder module and
on the table facilitate reli-
able setup and teardown
of tape feeder modules
during ongoing produc-
tion.
Robust
• Brushless motors extend
the service life of the X
tape feeder modules.
Intelligent
• A unique tape feeder mod-
ule ID ensures a precise
assignment of the compo-
nent to the tape feeder
module. This makes reli-
able setup verification
very simple.
• Component pitch, feeder
speed and other functions
are automatically set
when the setup program is
downloaded.
High feeding accuracy
• Closed loop control path
measurement ensures
highly accurate compo-
nent feeding, even for
03015 placements.
Operator-friendly
• Contactless data and
power transmission make
it easier to attach/remove
the tape feeder modules

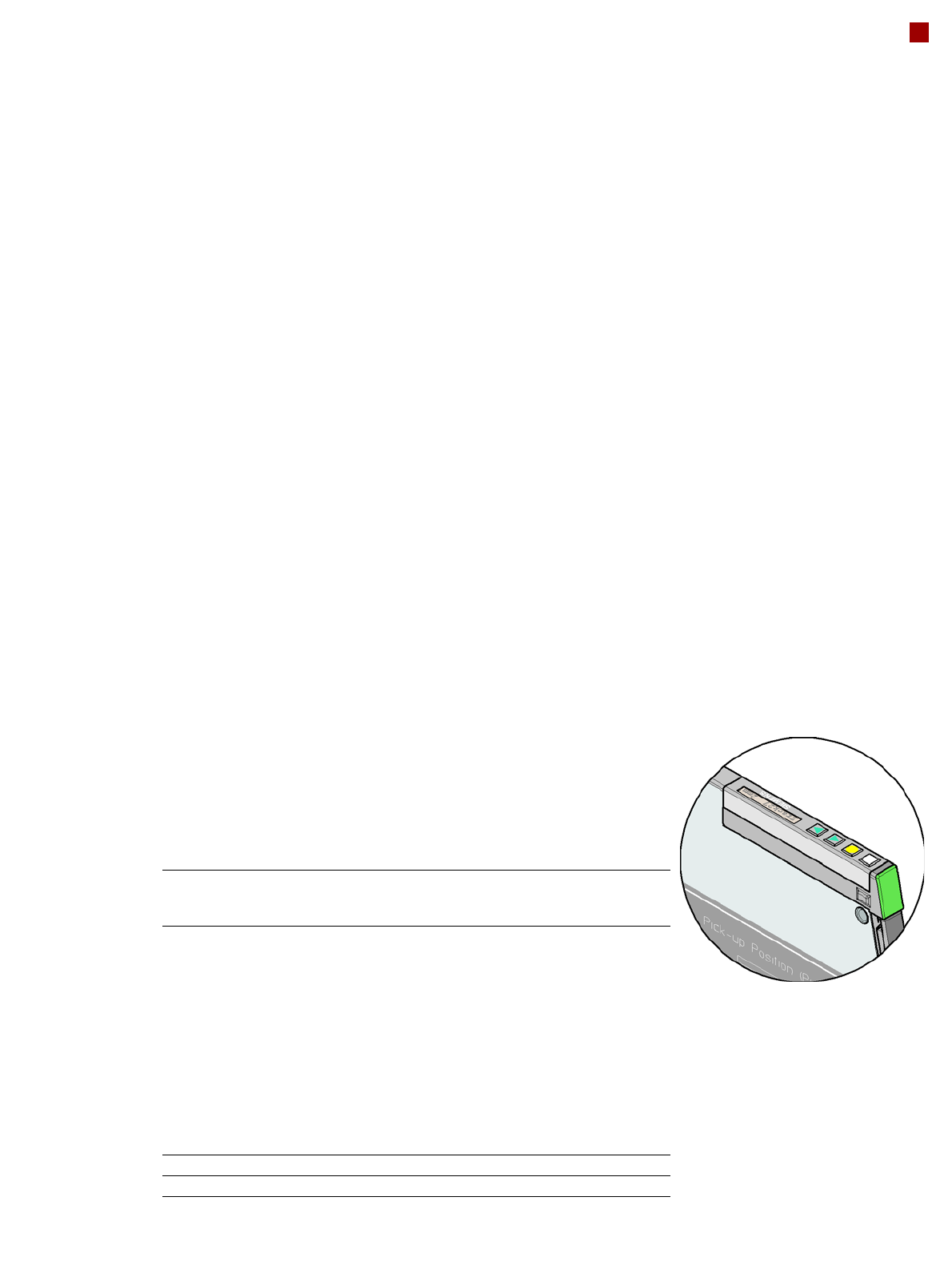

• A menu-controlled LCD
display supports the user
with current information.
• A multicolor status display
signals the operating sta-
tuses of the X tape feeder
module:
- Green: "Ready for opera-
tion/in current setup"
- Orange: "Com-
ponent running
empty"
- Red: "Malfunc-
tion"
- LED off: "Tape
feeder module is
not in current set-
up and can be
torn down"
Technical Data
Tape feeder
module
L x H
[mm]
Width
[mm]
Loca-
tion
Transport
increment
[mm]
Max. tape
height
[mm]
4 mm X 587x200 10.8 1 1 1.1
8 mm X 587x200 10.8 1 1/2/4/8 3.5
Smart Feeder 2x8 mm X 587x200 22.9 2 1/2/4/8 3.5
Smart Feeder 12 mm X 587x200 22.6 2 4 - 16
a
16
Smart Feeder 16 mm X 587x200 22.6 2 4 - 20
a
16
24 mm X 587x200 34.4 3 4 - 32
a
25
32 mm X 587x200 46.2 4 4 - 40
a
25
44 mm X 587x200 58.0 5 4 - 52
a
25
56 mm X 587x200 69.8 6 4 - 64
a
25
72 mm X 587x200 81.6 7 4 - 80
a
25
88 mm X 587x200 105.2 9 4 - 96
a
25
Tape reels 178 to 483 mm diameter (7" - 19")
Changeover time ≤ 8 s
a) In 4mm steps
32
Component Feeding
Alternative SIPLACE Feeder Modules
Technical Data
Linear vibratory feeder
type 3
Packaging style
track number and width of
tracks
Stick magazines
X component trolley
a
3 x ≤ 9.5 mm
2 x ≤ 15 mm
1 x ≤ 30 mm
Occupies 3 locations of an
8 mm X feeder module
Linear Dipping Unit
(LDU X)
b
for X component trolley
Occupies 9 locations of an
8 mm X feeder module,
max. 1 per head
SIPLACE Glue Feeder Occupies 5 locations of an
8 mm X feeder module,
max. 1 per head
a) With X adapter
b) With restrictions
Description
Linear vibratory feeders pro-
cess components in stick
magazines. These can be
easily configured with the X
adapter for use with the X
component trolley. They can
be refilled without stopping
the machine. The X adapter
also allows you to set up the
label presenter and the
reject conveyor on the X
component trolley. The LDU
X is suitable for dip fluxing of
flip chips, CSP (Chip Scale/
Size Packages) and for coat-
ing flip chip bumps with iso-
tropic conductive adhesive.
The SIPLACE Glue Feeder
allows you to position dots of
adhesive on a component,
before it is placed.
Reject conveyor
with X adapter
Glue Feeder
Linear vibratory feeder, type 3
with X adapter
Linear Dipping Unit
(LDU X)
Label presenter
with X adapter
