54 Technical Data Center of Gravity for SWS Center of gravity coordiates: SWS X coordinate 0 mm Y coordinate 650 mm
53
Technical Data

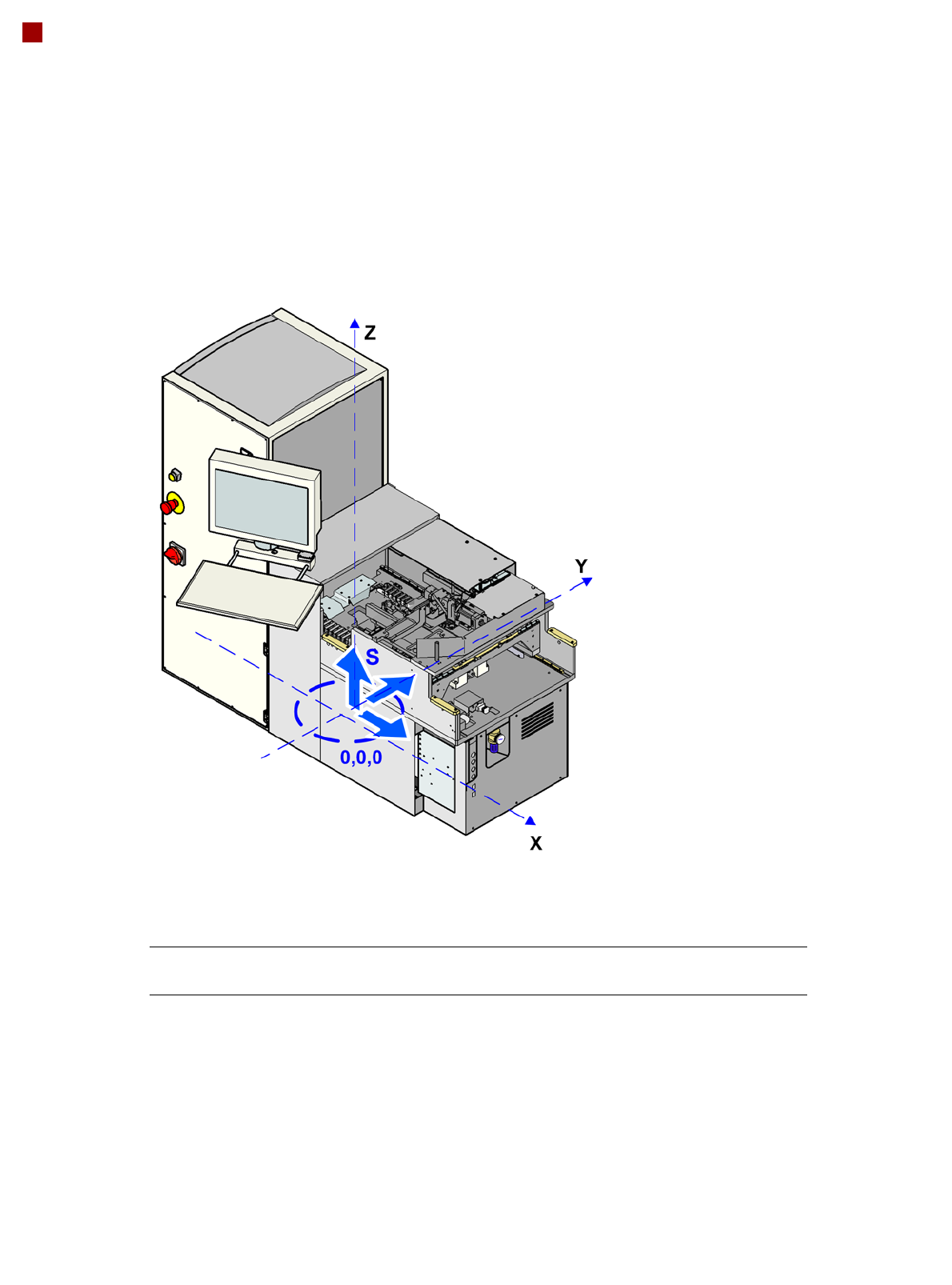

Placement System’s Center of Gravity
These center of gravity coordinates relate to placement machines with a PCB conveyor
height of 930 mm.
CA4 machine
Without SWS, without compo-
nent trolley
a
a) The SWS and component trolley must be removed before transporting the CA machine.
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 120 mm high
54
Technical Data

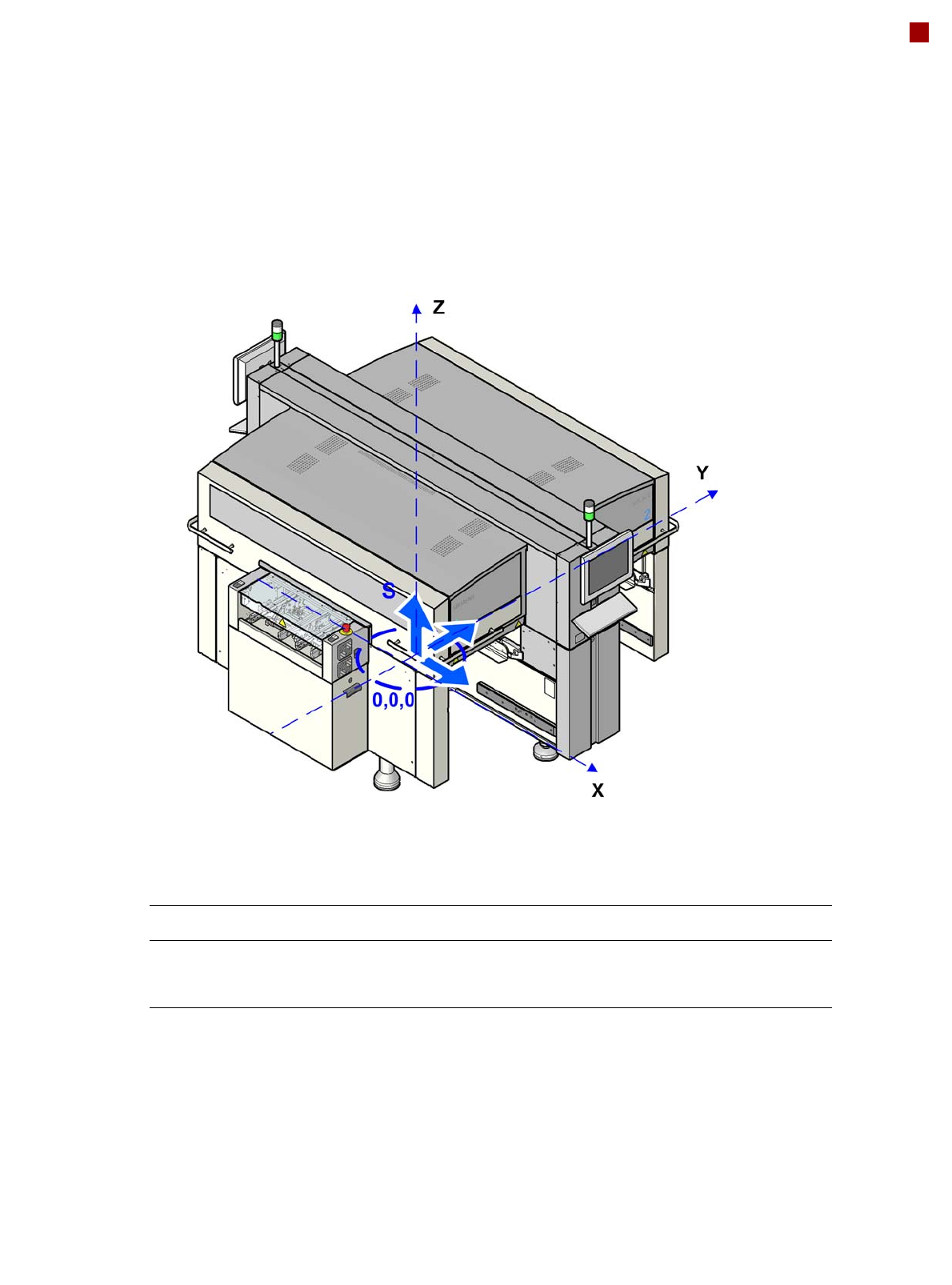

Center of Gravity for SWS
Center of gravity coordiates:
SWS X coordinate 0 mm
Y coordinate 650 mm
55
Technical Data

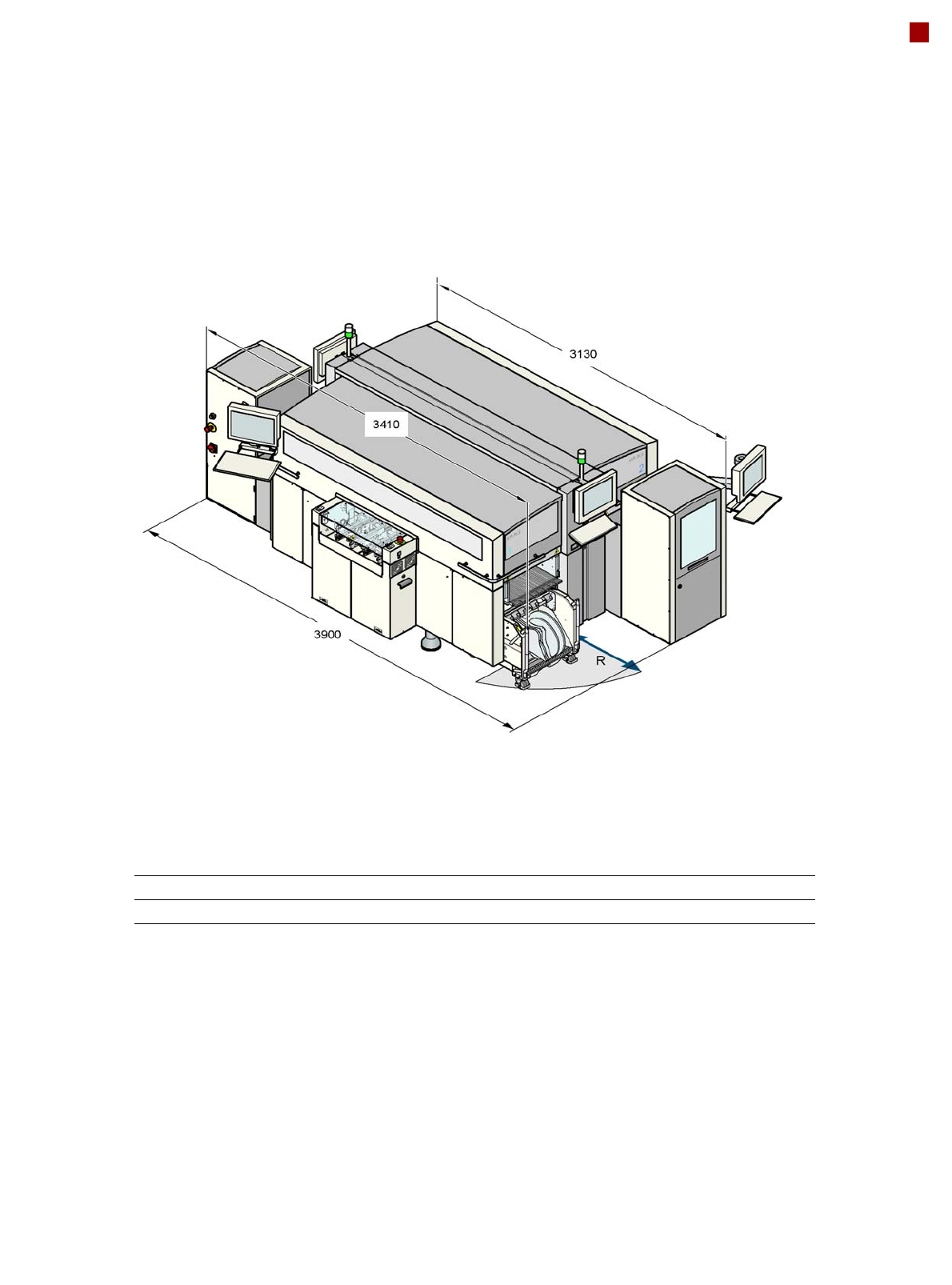

Maneuvering Radii for the Component Trolleys
Maneuvering radius:
Machine Location 1 Location 2 Location 3 Location 4
CA4 750 mm 750 mm 750 mm 750 mm
