Twin tape feeder and intelligent tape feeders User benefits Twin tape accommodates two 8mm tapes in a single feeder slot, enhancing the support for family setup and increasing productivity Optional the feeder intelligenc…
Multi language support
For description of error-messages and more comprehensive feedback to the user,
the user interface can be set to different language modes. This can be done while
the production is running and is therefore, suited to multi-lingual environments.
The available languages that can be ordered are (in alphabetical following order):
Traditional Chinese, Simplified Chinese, English, German, Italian, Korean, Russian,
Spanish (Mexican), Swedish, Turkish and Vietnamese. Other languages can be
made available upon request.
Chinese user interfaceFigure 10
Contents
15 of 34
Twin tape feeder and intelligent tape feeders
User benefits
Twin tape accommodates two 8mm tapes in a single feeder slot, enhancing the
support for family setup and increasing productivity
Optional the feeder intelligence can be used to eliminate incorrect feeder setup,
to provide pre-empty reel warning and is a basis for tracking and tracing (see
chapter 3 for more info)
Single handed operation facilitates fast setup
All-in-one feeder concepts; one feeder support various reel sizes, pitches and
tapetypes reduces feeder inventory
Accurate component positioning and precise repeatability for maximum pick
performance
Support from 8 to 56mm tapes, for wide application support
Supports splicing for uninterrupted production
Support tapes based on the IEC 60286-3 specifications
2.11 Component
feeding
2.11.1 Tape
feeding

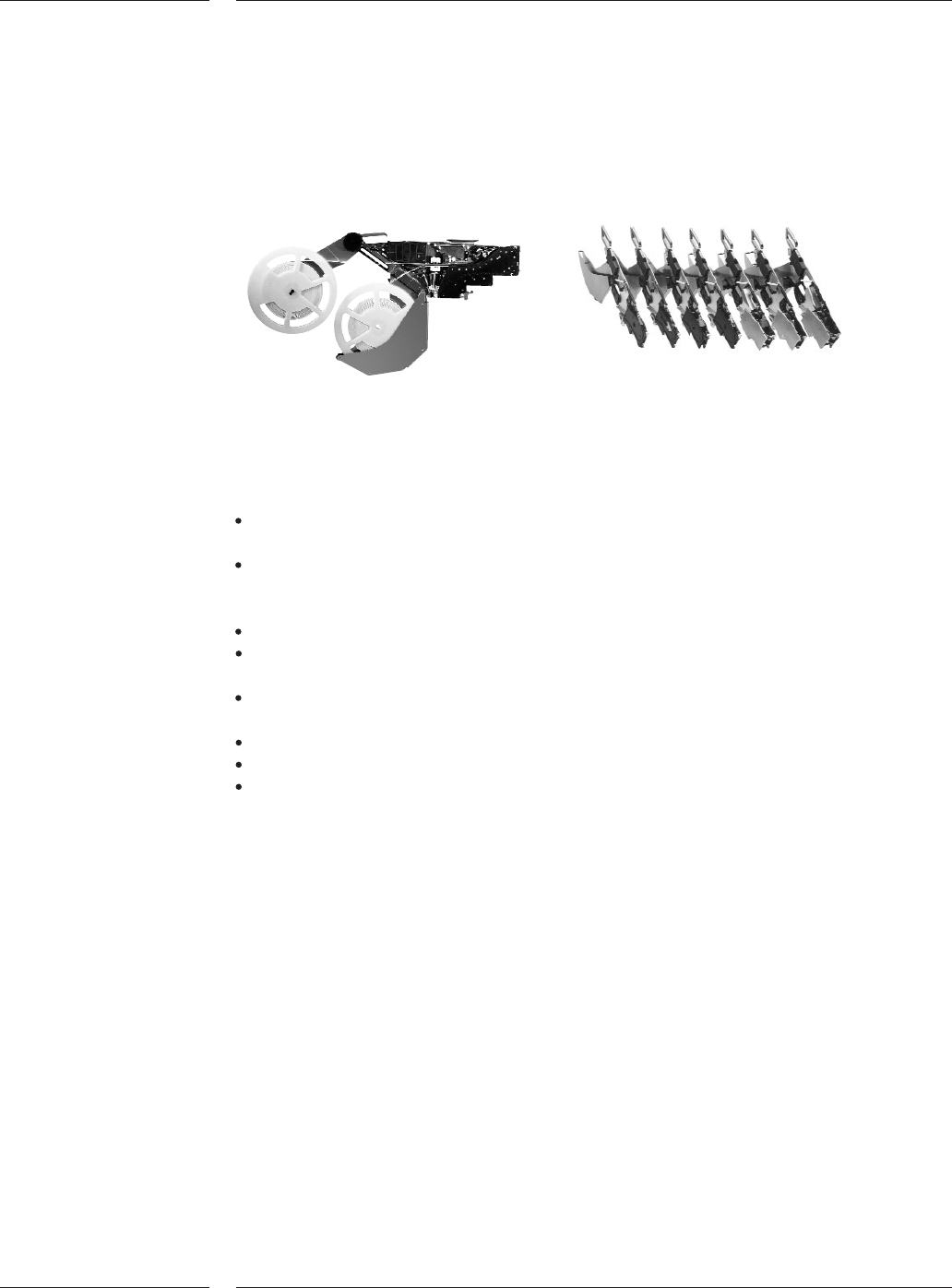

Figure 11
Features
16 of 34
Feeder Width Pocket Reels Pitches Carrier Cover tape types
type depths tape
types
TTF 8mm 3.5mm 7" - 13" 2,4 Paper, HA, PSA
(default) embossed
ITF 8mm 12mm 7" - 13" 2,4 (default) Paper, HA, PSA
(default) 8 ~ 56 pitch embossed
15" option support
available
ITF 12mm 12mm 7" - 13" 2,4,8,12,16 Paper, HA, PSA
(default) 20 embossed
15" option 24 ~ 56mm
pitch support
available
ITF 24mm 12mm 7" - 13" 2,4,8,12,16 Embossed HA, PSA
15.4mm (default) 20,24
option 15” option 24 ~ 56mm
22" option pitch support
available
ITF 32mm 12mm 7" - 13" 2,4,8,12,16 Embossed HA, PSA
15.4mm (default) 20,24,28,32
option 15" option 36 ~ 56mm
22" option pitch support
available
ITF 44mm 12mm 7" - 13" 2,4,8,12,16 Embossed HA, PSA
15.4mm (default) 20,24,28,32,
option 15" option 36,40,44
22" option pitch support
available
ITF 56mm 12mm 7" - 13" 2,4,8,12,16, Embossed HA, PSA
15.4mm (default) 20,24,28,32,
option 15" option 36,40,44,48
22" option
