Feeder Width Pocket Reels Pitches Carrier Cover tape types
type depths tape
types
TTF 8mm 3.5mm 7" - 13" 2,4 Paper, HA, PSA
(default) embossed
ITF 8mm 12mm 7" - 13" 2,4 (default) Paper, HA, PSA
(default) 8 ~ 56 pitch embossed
15" option support
available
ITF 12mm 12mm 7" - 13" 2,4,8,12,16 Paper, HA, PSA
(default) 20 embossed
15" option 24 ~ 56mm
pitch support
available
ITF 24mm 12mm 7" - 13" 2,4,8,12,16 Embossed HA, PSA
15.4mm (default) 20,24
option 15” option 24 ~ 56mm
22" option pitch support
available
ITF 32mm 12mm 7" - 13" 2,4,8,12,16 Embossed HA, PSA
15.4mm (default) 20,24,28,32
option 15" option 36 ~ 56mm
22" option pitch support
available
ITF 44mm 12mm 7" - 13" 2,4,8,12,16 Embossed HA, PSA
15.4mm (default) 20,24,28,32,
option 15" option 36,40,44
22" option pitch support
available
ITF 56mm 12mm 7" - 13" 2,4,8,12,16, Embossed HA, PSA
15.4mm (default) 20,24,28,32,
option 15" option 36,40,44,48
22" option
Contents
17 of 34

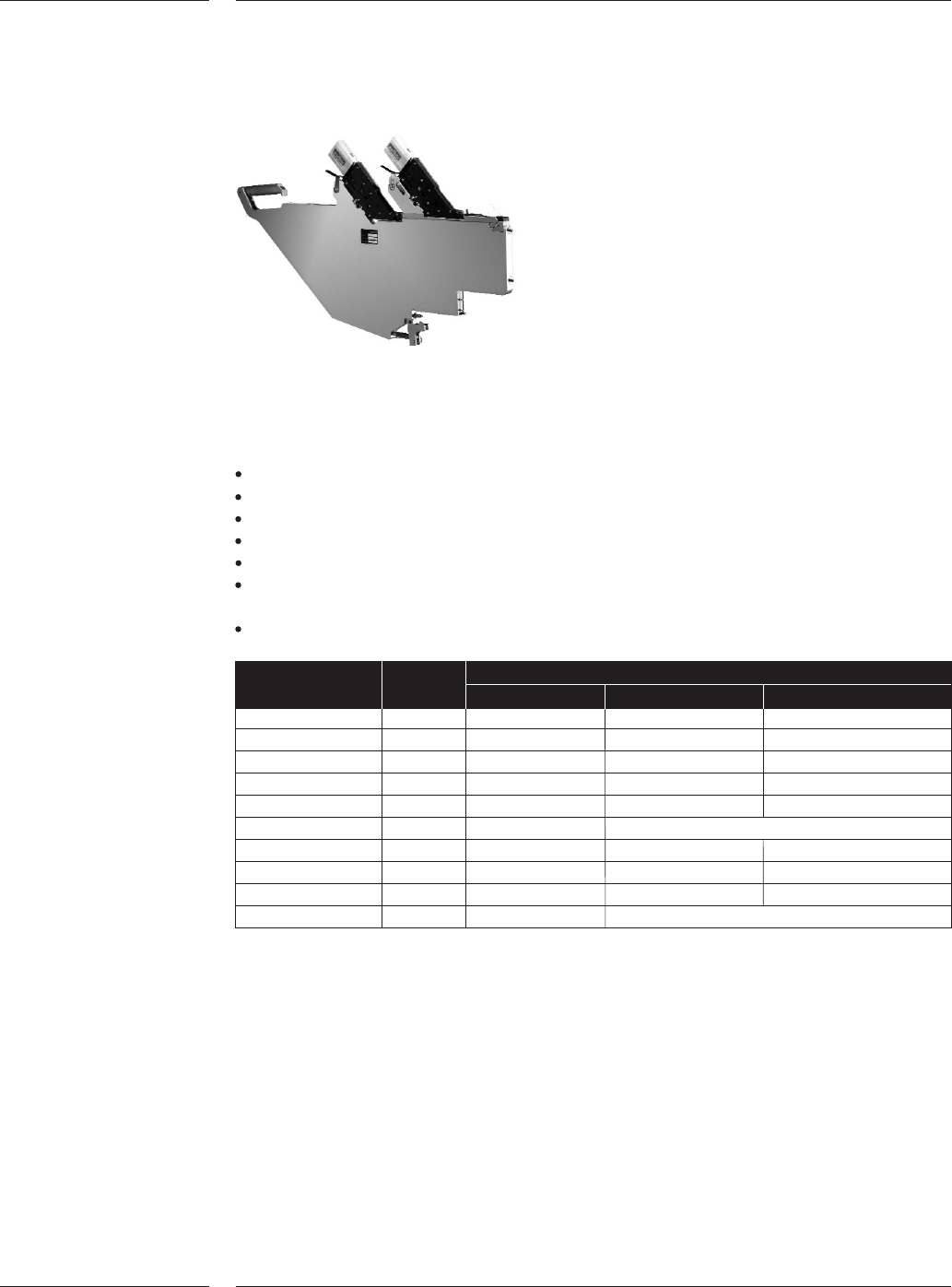

Twin bulk feeder
User benefits
Increased ease of use
Low operator interaction for care-free operation
No splicing required
No waste handling necessary
Reduced storage space and shipping costs
Low maintenance costs due to no moving parts or paper dust or cover tape glue
edges
Reliable pick due to no tape pocket tolerances, increases machine efficiency
Component EIA Lanes EIA Component specifications
description Length (mm) Width (mm) Thickness (mm)
C0201 2 0.57 ~ 0.63 0.27 ~ 0.33 0.27 ~ 0.33
C0402 2 0.95 ~ 1.05 0.45 ~ 0.55 0.45 ~ 0.55
R0402 2 0.95 ~ 1.05 0.45 ~ 0.55 0.30 ~ 0.40
C0603 2 1.53 ~ 1.67 0.73 ~ 0.87 0.73 ~ 0.87
R0603 2 1.50 ~ 1.70 0.70 ~ 0.90 0.35 ~ 0.55
MELF R0604 2 1.50 ~ 1.70 Ø 0.90 ~ Ø 1.10
C0805T0.6 2 1.90 ~ 2.10 1.15 ~ 1.35 0.50 ~ 0.70
C0805T1.25 1 1.90 ~ 2.10 1.15 ~ 1.35 1.15 ~ 1.35
R0805 2 1.90 ~ 2.10 1.15 ~ 1.35 0.50 ~ 0.70
MELF R0805 1 1.90 ~ 2.10 Ø 1.15 - Ø 1.35
2.11.2 Bulk feeding
Figure 12
Features
18 of 34

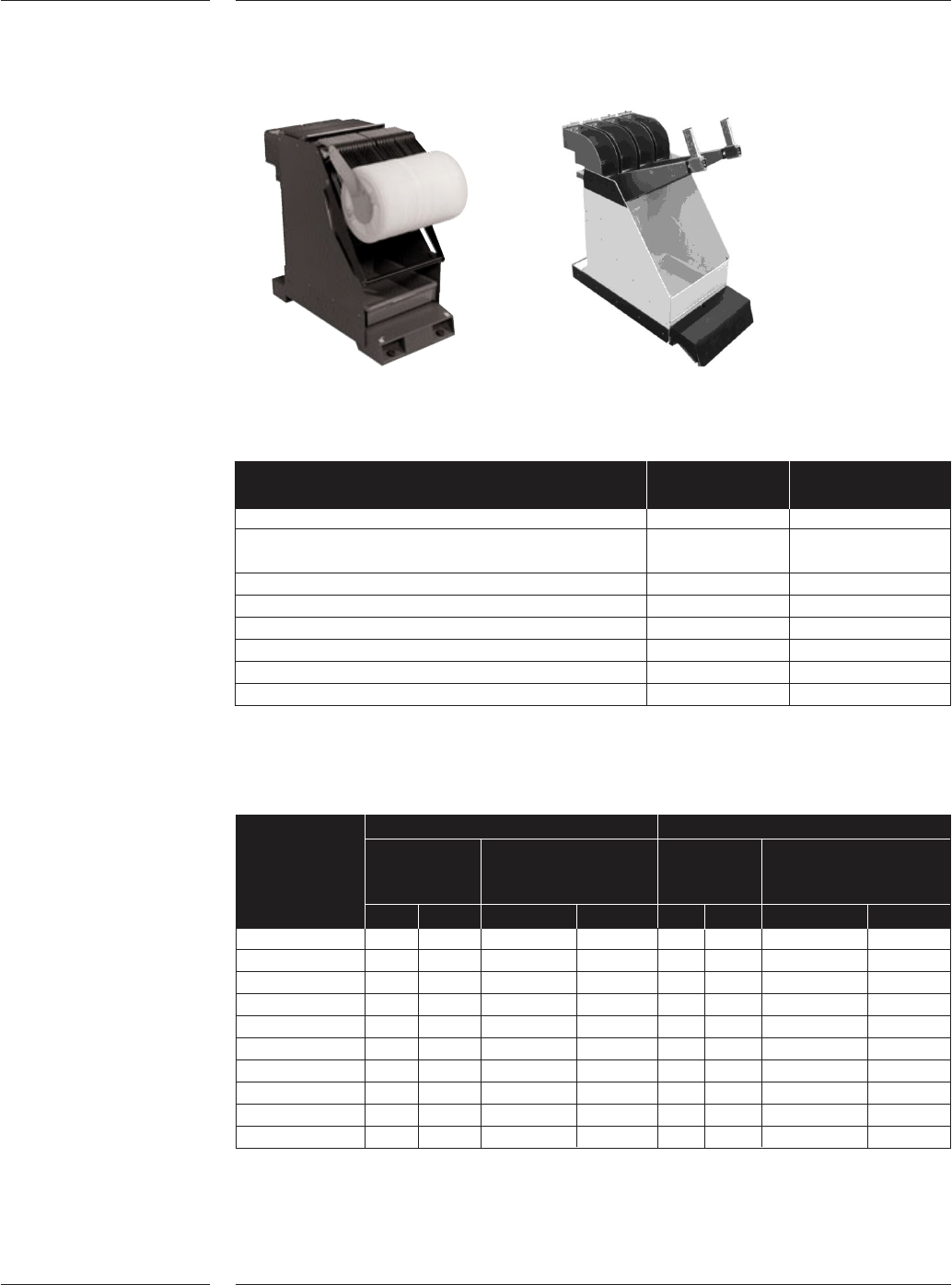

A-Series feeder trolley and FCM II Trolley for AX
Below table shows for both trolley types the user benefits.
User benefits FCM II Trolley A-Series feeder
for AX trolley
Facilitates fast changeover by off-line set-up Yes Yes
Self aligning mechanism provides optimal pick Yes Yes
reliability
Platform trolley that fits AX-3, AX-5 and AQ-2 No Yes
SMEMA and Japanese height compatible No Yes
Compatible on AQ No Yes
SVS-pro controller integrated Optional Standard
Feeder positioning security system Mandatory optional
Air supply for bulkfeeding Standard Optional
Below table shows for both trolley types the maximum number of feeding positions
per placement robot type. This is then translated to the maximum number of
feeding positions on the AX-3 or AX-5.
Feeder FCM II Trolley for AX A-Series feeder trolley
# feeders per # feeding positions # feeders per # feeding positions
placement on AX placement on AX
robot robot
CPR SPR AX-3 AX-5 CPR SPR AX-3 AX-5
Twin bulk feeder 12 24 144 240 10 26 120~156 200~260
Twin Tape Feeder 10 22 120~132 200~220 11 26 132~156 220~260
ITF 8mm 6 12 72 120 5 13 60~78 100~130
ITF 12mm SV 5 11 60~66 100~110 5 13 60~78 100~130
ITF 12mm 3 6 36 60 4 9 48~54 80~90
ITF 16mm 3 6 36 60 4 9 48~54 80~90
ITF 24mm 3 6 36 60 3 6 36 60
ITF 32mm 2 4 24 40 2 5 24~30 40~50
ITF 44mm 1 2 12 20 2 4 24 40
ITF 56mm 1 2 12 20 1/2 3 15~18 25~30
2.11.3 Feeder
trolleys
Figure 13
