AX-layout Dimensions and installation requirements AX-3 AX-5 Maximum height 1905mm (+25 / -0 SMEMA) (incl. light tower) Topside standard placement 1290mm (+25 / -0 SMEMA) robot Board transport 940mm (+25 / -0 SMEMA) Ambi…
Circuit board
Board material Phenolic/paper (FR2)
Glass-Epoxy (FR4)
Composite materials
IPC 9850 Glass verification panel
Optionally:
Ceramics
Auer carriers
Flex foil
Board artwork material / Hot Air Solder Leveled (HASL)
surface finish Bare copper with OSP
Electroless Ni / Immersion AU
Board range min (L x W) 50 x 50mm (L = Board transport direction)
50 x 25mm optional
Board range max (L x W) AX-3 : 475 x 390mm
(L = Board transport direction)
475 x 457mm optional
AX-5 : 515 x 390mm
(L = Board transport direction)
515 x 457mm optional
Y/X ratio < 2.5
Board thickness 0.3 - 6mm. Optional other transport systems are
available like 11 mm for boats
Pre-mounted components Max. 20mm bottomside, max. 6.3mm topside
Warpage (Flatness) Topside: Max. 0.6% of diagonal to max +2mm
Bottomside: Max. -2mm (due to board weight)
Edge clearance 3mm from front and rear edge of board
Board weight < 2 kg
Transport direction Standard left to right
Optional right to left
4.4 Board
specifications
Features
30 of 34
AX-layout

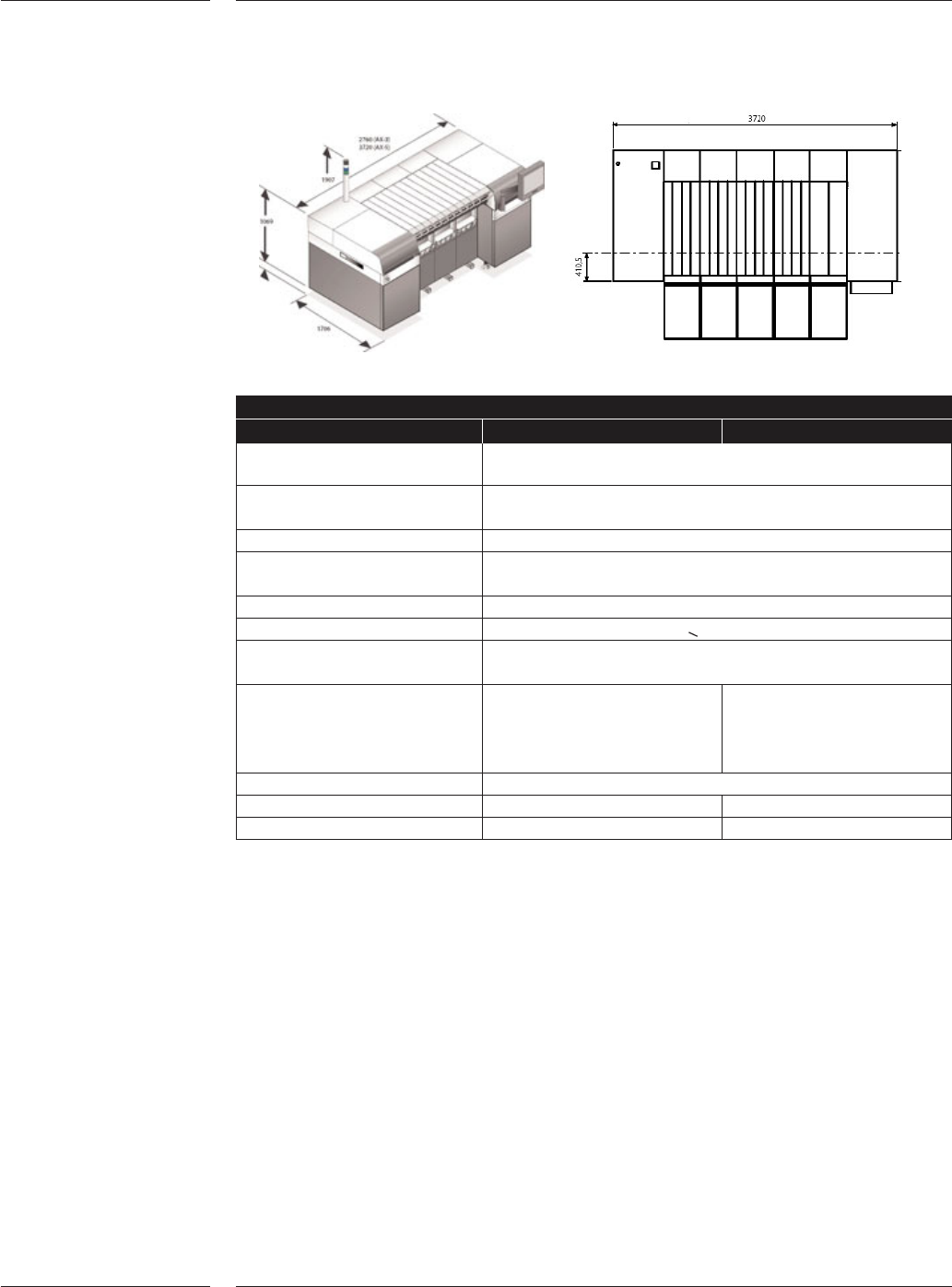

Dimensions and installation requirements
AX-3 AX-5
Maximum height 1905mm (+25 / -0 SMEMA)
(incl. light tower)
Topside standard placement 1290mm (+25 / -0 SMEMA)
robot
Board transport 940mm (+25 / -0 SMEMA)
Ambient temperature 15-35°C functions guaranteed
20-28°C specifications guaranteed
Humidity 20-90%, no dew
Floor flatness < 1%
Power supply 200-480V 3-phase, 47-63Hz,
AX-3: 5 kVA, AX-5: 7 kVA
Air supply 6-8 bar, 150 Nl/min 6-8 bar, 230 Nl/min
(Tape feeding only) (Tape feeding only)
6-8 bar, 185 NI/min 6-8 bar, 290 Nl/min
(Tape & Bulk feeding) (Tape & Bulk feeding)
Width including trolleys 2285mm
Length 2760mm 3720mm
Weight (excl trolleys) <2500kg <3200kg
