S2-9XXX Series Dispensing System IOM Manual Parts Replacement
© 2023 Nordson Corporation 8-17
8.13.3 Replacing the Gas Spring
This procedure is applicable to the left or right spring.
8.13.3.1 Replacing the Gas Spring and Retaining Clip
This procedure assumes that the gas spring has a retaining clip installed. Repeat this procedure for both
the left and right gas spring as necessary. If a retaining clip is not installed, see 8.11.3.2 Replacing the
Gas Spring and Ball Joint.
To remove the gas spring (Figure 8-14):
1.
Perform a service shutdown, see 2.14 Service Shutdown.
2. Open and support the dispensing area door during removal and installation.
3. Remove the retaining clip securing the gas spring to the dispensing system.
Pull up on the gas spring and twist it in the opposite direction.
4. Remove the gas spring.
Item
Description
1
2
Gas Spring
Retaining Clip
Figure 8-14 Replacing the Retaining Clip
To install the gas spring (Figure 8-14):
1. Replace the gas spring.
2. Secure the gas spring with the retaining clip.
Verify that the retaining clip is wrapped around the gas spring.
1
2
2
1
S2-9XXX Series Dispensing System IOM Manual Parts Replacement
8-18 © 2023 Nordson Corporation
8.13.3.2 Replacing the Gas Spring and Ball Joint
This procedure assumes that a retaining clip securing the gas spring to the dispensing system IS NOT
installed. Repeat this procedure for both the left and right gas spring as necessary.
To remove the gas spring and ball joint:
1. Perform a service shutdown, see 2.14 Service Shutdown.
2. Open and support the dispensing area door during removal and installation.
3. Remove the hex nut
and two (2) washers securing the gas spring to the dispensing area door
(Figure 8-15).
Item
Description
1
2
Hex Nut
Washers (2)
3 Spring, Gas 30LB, 15.23” Long (Item 27)

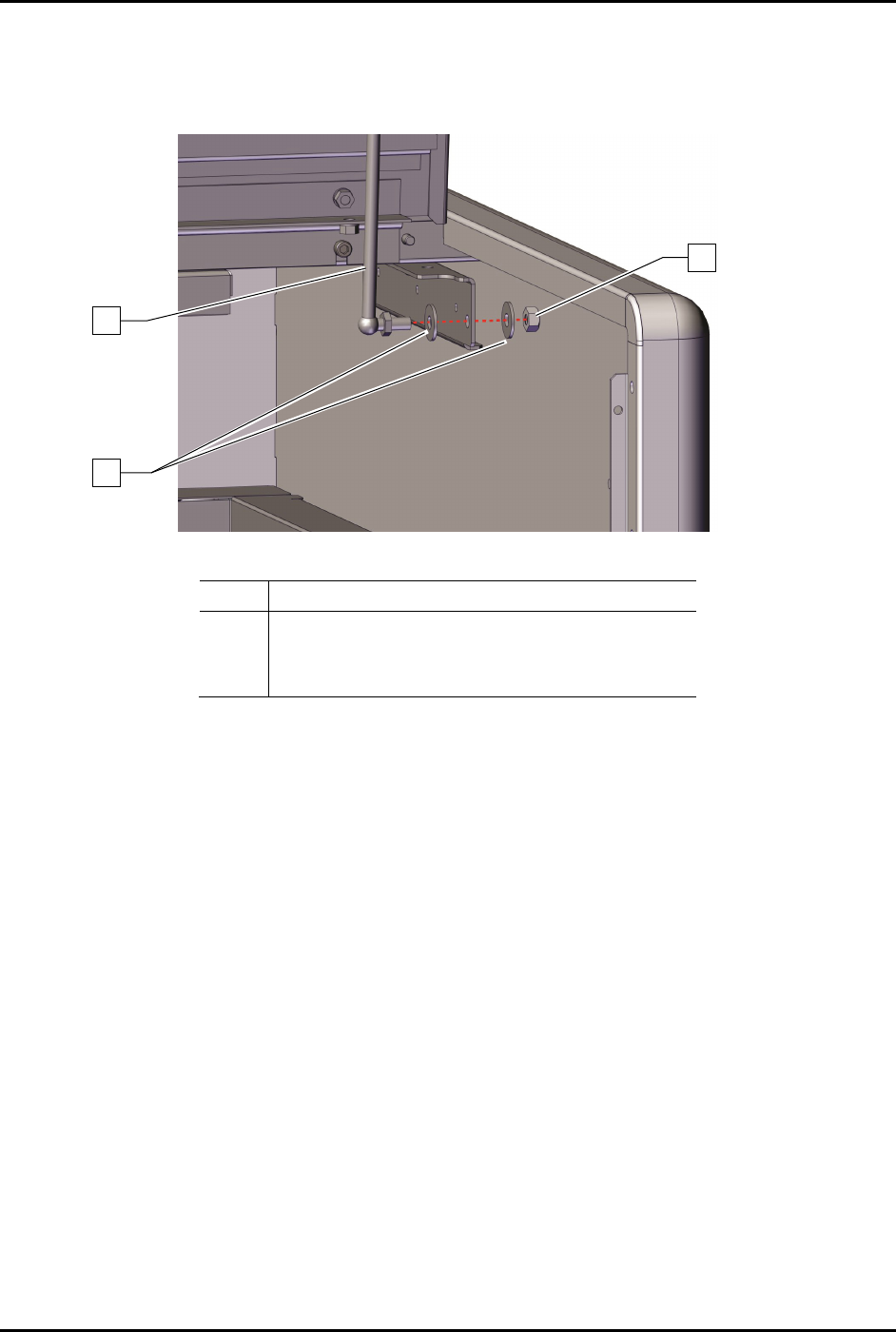

Figure 8-15 Replacing the Upper Portion of the Gas Spring
1
2
3
S2-9XXX Series Dispensing System IOM Manual Parts Replacement
© 2023 Nordson Corporation 8-19
4. Remove the hex nut and two (2) washers securing the gas spring to the dispensing system
(Figure 8-15).
5. Remove the gas spring from the dispensing system (Figure 8-16).
Item
Description
1
2
C-Clips (2)
Standoff (Item 46)
3
Handle (Item 46)
Figure 8-16 Replacing the Lower Portion of the Gas Spring
To install the gas spring and ball joint:
1. Install the hex nut and two (2) washers securing the gas spring to the dispensing area door
(Figure 8-15).
2. Install the hex nut and two (2) washers securing the gas spring to the dispensing system.
(Figure 8-16).
3. Torque the two (2) hex nuts to 9.8 Nm (87 in-lbs) (Figure 8-15 and Figure 8-16).
4. Install a retaining clip, see 8.11.3.1 Replacing the
Gas Spring and Retaining Clip.
5. Close the dispensing area door.
3
2
1
