S2-9XXX Series Dispensing System IOM Manual Introduction
1-16 © 2023 Nordson Corporation
1.9.6 Front Cabinet
S2-9XXX Series Systems
S2-9XXP Series Systems
NOTE The S2-9XXP Series features programmable fluid and valve pressure. Air pressure is set
through the Fluidmove software. This feature is an option on the S2-9XXX Series Systems.
Item
Name
Description
1 Vacuum Air Regulator Controls the air pressure supplied to the vacuum air.
2 Cooling Air Regulator Controls the air pressure supplied to the cooling air.
3 Valve Air Regulator Controls the air pressure supplied to the valve air.
4 Fluid Air Regulator Controls the air pressure supplied to the fluid air.
5
Tooling Pressure
Regulator
Controls the air pressure supplied to the stop pins and lift tables. The
regulator receives air from the main air regulator located on the back of
the dispensing system.
6
Conveyor/Heater
Module (systems with
heat)
Controls all conveyor functions (motors, sensors, pneumatics, etc.). It
receives power from the power manager and supplies AC power to the
substrate heaters in the dispensing area. Dual conveyor systems require
two conveyor/heater modules.
7
Tooling Pressure
Gauge
Displays the air pressure supplied to the stop pins and lift tables.
8
Impingement
Flowmeters*
(S2-9XXP)
Not on S2-9XXC
Controls the airflow through the impingement heaters in the dispensing
chamber. A manual shut-off valve controls the air going to the
flowmeters. Note: Depending on system configuration, a dispensing
system may have up to six (6) flowmeters (pre-dispense, dispense, and
post-dispense for Conveyor 1 and Conveyor 2).
9
Conveyor Controller
Module (systems
without heat)
Controls all conveyor functions (motors, sensors, pneumatics, etc.). If
your system is equipped with dual conveyors, two Conveyor Controller
Modules are required.
Figure 1-9 Front Cabinet
*Impingement flowmeters are standard on the S2-9XXP. The flowmeters may be optionally replaced by
Controlled Process Heat (CpH) software, see 5.15 Controlled Process Heat.
1
2
3
4
9
5
6
7
8
S2-9XXX Series Dispensing System IOM Manual Introduction
© 2023 Nordson Corporation 1-17

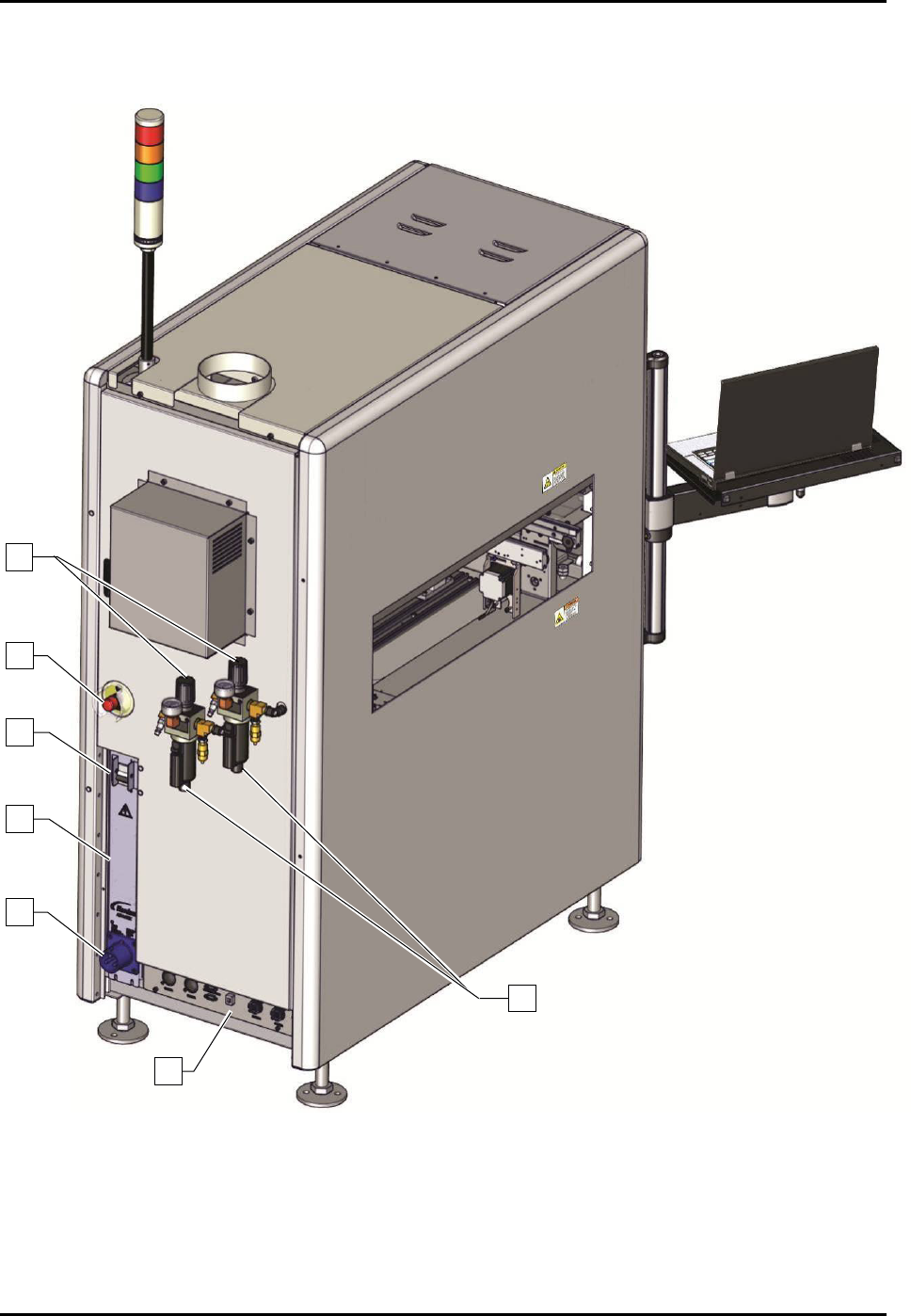

1.9.7 Rear View
Figure 1-10A Figure S2-9XXX Rear View (30A Power Manager shown)
2
3
4
5
6
1
7
S2-9XXX Series Dispensing System IOM Manual Introduction
1-18 © 2023 Nordson Corporation
Figure 1-11B Main Air Regulator and Gauge Sets (Close-up)
Item
Name
Description
1
Main Air Regulator
and Gauge (2)
The system is equipped with two (2) Main Air Regulators and Gauges.
They control the air pressure supplied to all other system regulators. The
regulators contain built-in air filter and water traps to ensure that only
clean, dry air enters the system.
2 Rear EMO
The Rear EMO is a built-in safety feature located on the rear panel of the
dispensing system. Activating the EMO vents all pressure in the
pneumatic system, de-energizes the servo power, and cuts power to all
system components except the computer.
3 Main Circuit Breaker
The Main Circuit Breaker is the main power switch for the dispensing
system. It protects the dispensing system from facility power surges and
controls the flow of facility AC power supplied to the power manager. A
flange to the right of the Main Circuit Breaker allows it to be locked in the
OFF position during servicing. Switching OFF the Main Circuit Breaker
cuts power to all dispensing system electrical components.
4 Power Manager See 1.11.9 Rear Cabinet.
5
Main Power
Connection
The Main Power Connection connects the dispensing system to the
facility power supply via the main power cord (not shown).
6
Rear Panel
Connections
See 1.11.10 Rear Panel Connections.
7 Water Traps (2)
The facility air supply may contain moisture that can damage the
dispensing system. The Water Trap condenses this moisture before it
enters the dispenser pneumatic system.
Figure 1-12 Rear View
Fluid/Valve
Pneumatics
Conveyor/Heater
Pneumatics
