S2-9XXX Series Dispensing System IOM Manual Safety
© 2023 Nordson Corporation 2-7
2.10 Safety Warning Labels
Safety warning labels on the dispensing system point out potentially hazardous areas and remind
personnel to take necessary safety precautions. Table 2-3 describes safety warning labels that may be on
the dispensing system. The location of warning labels found on a typical dispensing system are shown in
Figure 2-2 through Figure 2-8.
WARNING! Comply with all safety warning labels or serious injury to personnel or damage to
the dispensing system may occur. Worn or damaged labels should be replaced
with new labels having the same part number.
NOTE Triangular labels with symbols only are placed on machines that are shipped to the
E
uropean community, referred to as “CE labeled” machines. Rectangular labels with
symbols and text are placed on machines that are shipped outside the European
community.

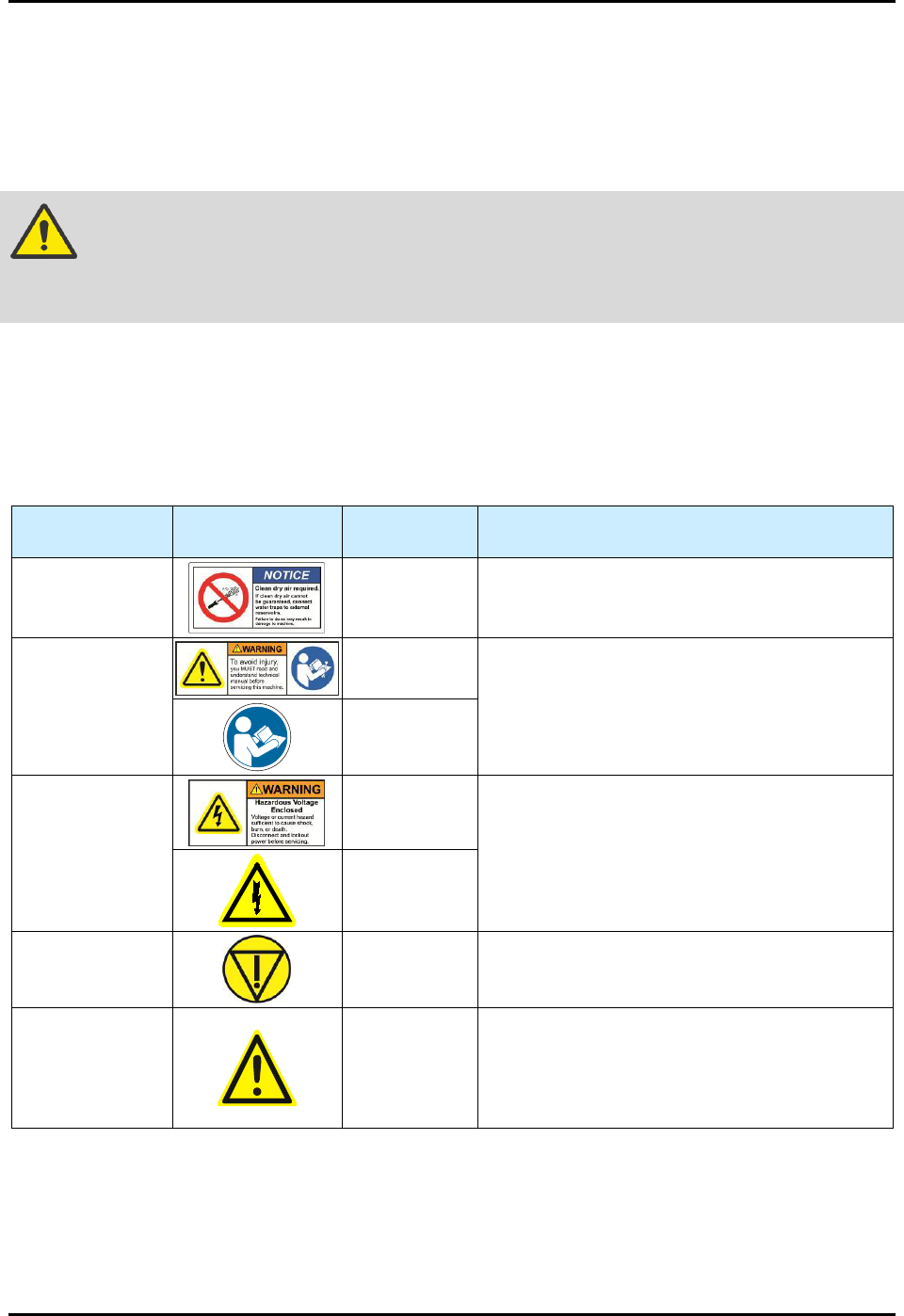

Table 2-2 Safety Warning Labels
Warning Type
Label/
Symbol
Part
Number
Hazard
Clean Dry Air
Required
7241298
Warns that the water traps must be connected
to clean dry air.
Consult
Technical
Manual
7219555
Warns personnel to read the technical manual
before operating the machine.
7206854
Electrical
(Shock Hazard)
7243245
Warns personnel of a high-voltage component
that can cause shock, burn, or death.
Use extreme caution when working in or
around these areas.
Disconnect and lock out power before
servicing.
7257510
Emergency
Machine Off
Symbol
---
This symbol is located on the Emergency
Machine Off Buttons located on the front and
back of the dispensing system.
General
Warning
7275803
T
his label identifies a component that requires
special attention. May cause serious bodily
harm to the user.
Disconnect and lock out power before
servicing.
S2-9XXX Series Dispensing System IOM Manual Safety
2-8 © 2023 Nordson Corporation
Table 2-3 Safety Warning Labels (Continued)
Warning Type
Label/
Symbol
Part
Number
Hazard
Hand
Entanglement/
Moving Material
7214
364
Warns of moving parts that can cause serious
injury to hands and fingers.
Disconnect and lock out power before
servicing.
Hot Surface
7207207
Warns personnel of potentially hot components
and surfaces. Use extreme caution when
working on or around these areas.
Can cause severe burns.
7207206
Laser Radiation
(Class 2)
6113313
Warns personnel of the possibility of
hazardous radiation exposure if your system is
equipped with a Class 2 Laser Height Sensor
or other Class 2 laser device.
---
7201438
Moving Parts
Present
198883
Warns personnel of moving parts that can
cause serious injury to hands or fingers. Keep
hands away from moving parts.
Disconnect and lock out power before
servicing.
7279014
7253636
S2-9XXX Series Dispensing System IOM Manual Safety
© 2023 Nordson Corporation 2-9
Item Description
1 Read Manual Label
2 Emergency Machine Off Symbol
Figure 2-2 Safety Warning Labels - Front Cover
Item Description
1 Laser Radiation Warning Label (if Class 2 Laser Height Sensor present)
2 Hot Surface Label (if heaters present)
Figure 2-3 Safety Warning Labels - Front Inside Panel
2
1
1
2
