S2-9XXX Series Dispensing System IOM Manual Installation
© 2023 Nordson Corporation 3-11
3.10 Installing the Laptop Computer
NOTE The laptop computer is shipped from the factory fully charged.
To install the laptop computer:
1. Remove the laptop computer from its packaging.
2. Remove the keys from the lock and give them to the person responsible for the machine.
The keys are used to lock the laptop computer to the dispensing system tray.
3. Power on the laptop computer.
4. Open Windows Explorer.
5. Follow the steps below to verify the serial number of the dispensing system and the laptop
computer are the same.
a. Locate C:\Asymtek\Recovery\SNXXXXX.ACL.
b. Compare the serial number located in the name of the ACL file with the serial number
on the dispensing system (Figure 3-10). If the numbers are not the same, contact
Asymtek Technical Support.
Item
Description
1
Serial Number Label
Figure 3-10 Dispensing System Serial Number Label
6. Power off the laptop computer.
7. Move the laptop tray arm bracket on the dispensing system so that the laptop tray is facing
forward (Figure 3-11).
8. Attach the USB and network cables and grounding wire attachment to their respective ports
on the computer.
1
S2-9XXX Series Dispensing System IOM Manual Installation
3-12 © 2023 Nordson Corporation
9. Attach the power cable to the rear of the computer.
NOTE The laptop is adhered to the tray with a hook and loop fastener. Align the laptop
computer before placing it on the tray.
10. With the laptop lid closed, align the computer with the covers so that no gaps exist on the
left side or the back edge.
11. Gently press the laptop onto the base.
12. Attach the locking cable to the laptop.
Item
Description
1 Power Cable
2
Laptop Tray

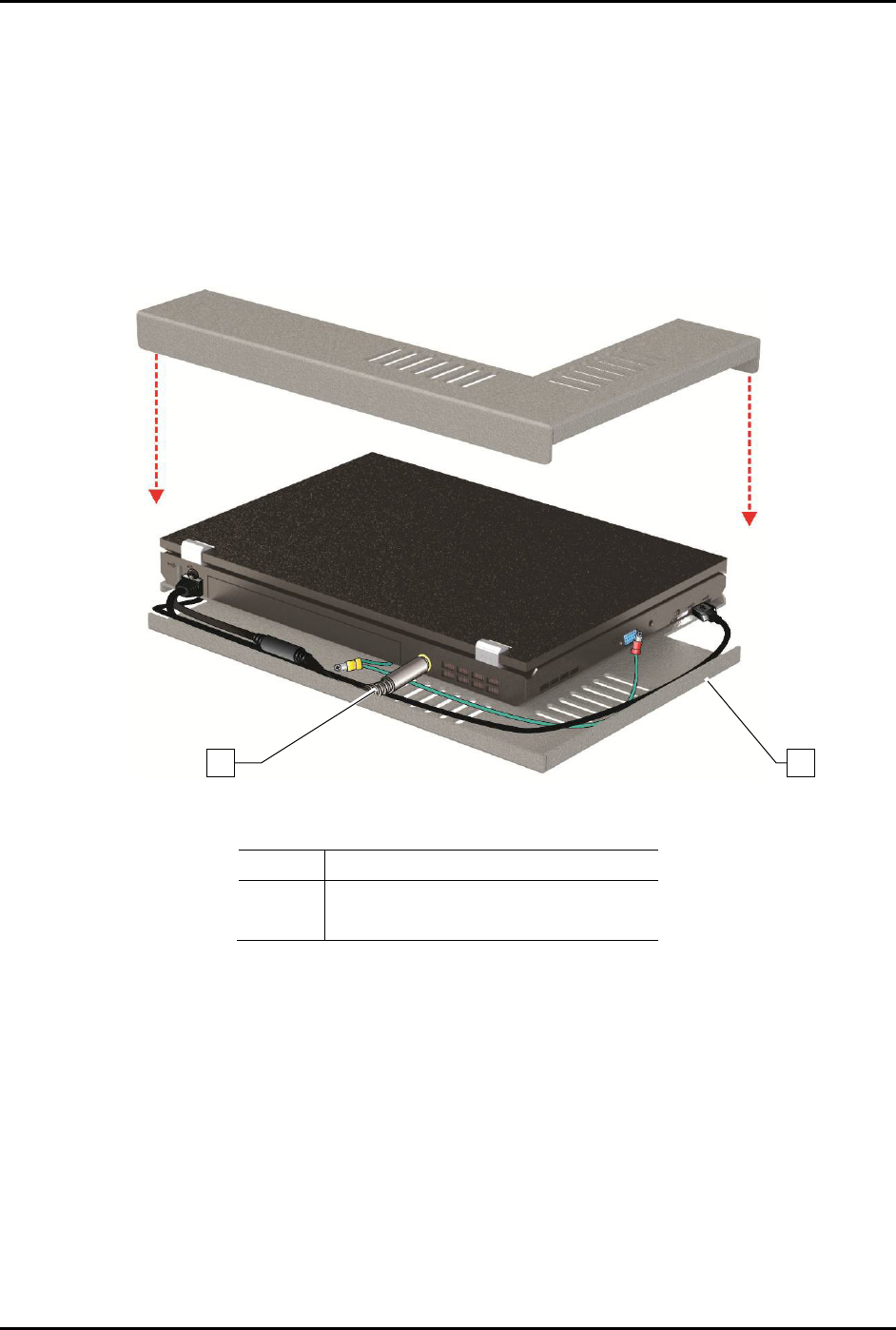

Figure 3-11 Aligning the Laptop Computer to the Tray
2
1
S2-9XXX Series Dispensing System IOM Manual Installation
© 2023 Nordson Corporation 3-13
3.11 Anchoring the Dispensing System
To prevent movement that could cause injury to personnel and damage to the dispensing system and
facility, each dispensing system leveler (foot) should be anchored to the floor with two bolts
(Figure 3-12). The anchor joint (the point between each anchor bolt and the floor) must be able to
withstand at least 100 kg (220 lbs) of pullout force. For additional information, see 9.5 Stability Analysis.
Item
Description
1
Bolt
2 Leveler (Foot)

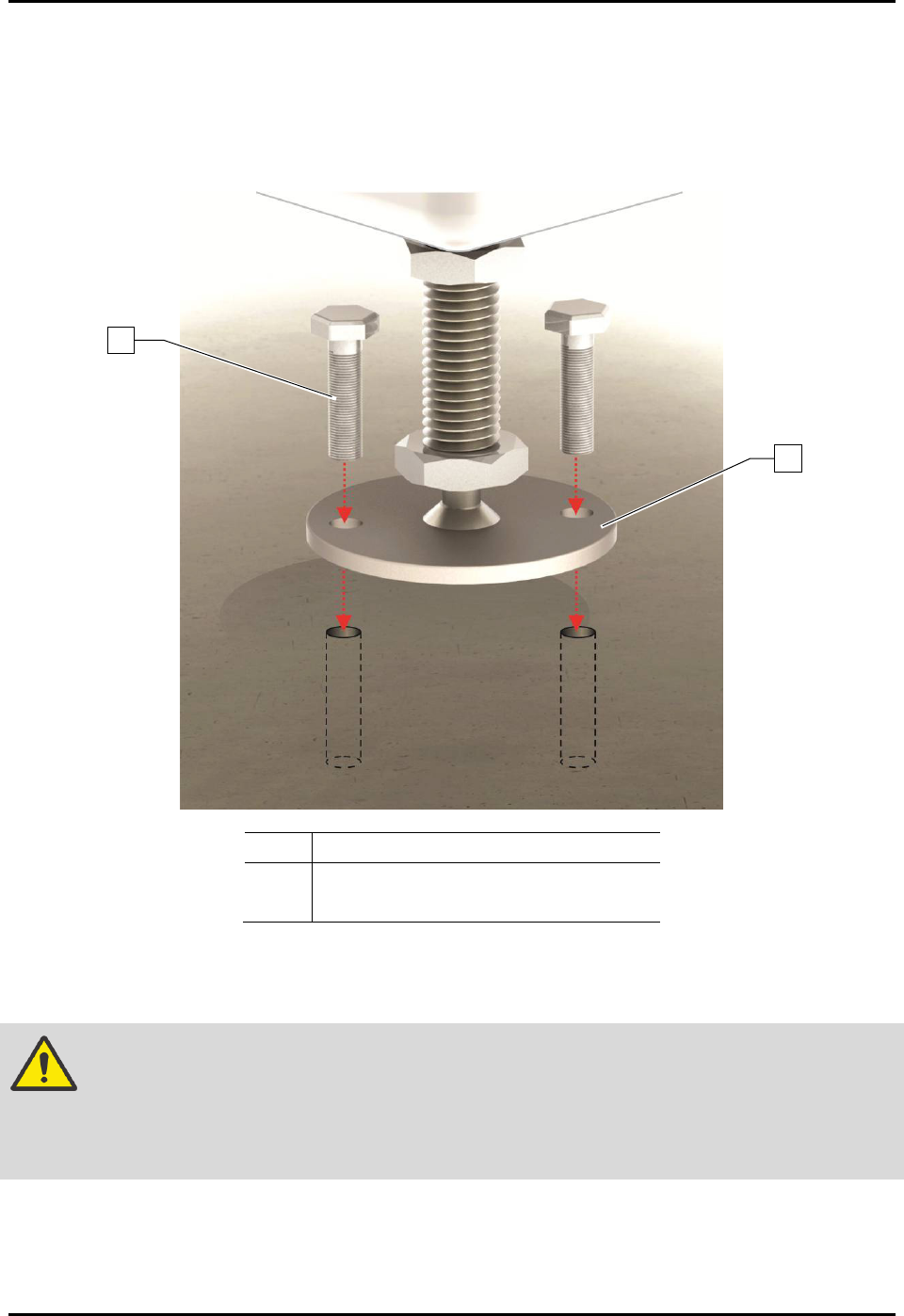

Figure 3-12 Anchoring the Dispensing System
NOTE You may also use the shipping brackets to anchor the dispensing system.
WARNING! The dispensing system is designed to be used as an inline system. When using
the dispensing system for batch operations, make sure it is configured with the
optional conveyor closeout kit (Item 38) to prevent personal injury and
equipment/workpiece damage.
2
1
