S2-9XXX Series Dispensing System IOM Manual Operation
4-6 © 2023 Nordson Corporation
4.8 Shutdown
4.8.1 Post-Production Shutdown
To shutdown at the end of a production shift:
1. Wait for the dispensing program to complete and verify that all motion has stopped.
2. Unload all workpieces.
3. Move the dispensing head to the front center of the system for easy access.
WARNING! Follow SDS recommendations for the proper handling, cleanup, and disposal of
all fluids used with the dispensing system.
4. Remove the valve, pump or jet and clean it as instructed in the appropriate valve manual.
5. Clean any spilled fluid from the dispensing system.
6. Shutdown the dispensing system, see 4.8.2 System Shutdown.
4.8.2 System Shutdown
To shutdown the dispensing system:
1. If applicable, perform a post-production shutdown, see 4.8.1 Post-Production Shutdown.
2. Exit Fluidmove.
NOTE When Fluidmove closes, the machine will remain powered but the main air
solenoid will close and relieve all air pressure to the system.
3. Exit Windows.
4. Make sure Windows completely shuts down before turning off the computer.
5. Press the black
OFF button on the dispensing system front panel to de-energize the system.
WARNING! Before performing any servicing or parts replacement, the system must be
shutdown for service. Failure to do so could cause serious injury to the user
and/or serious damage to the dispensing system, see 2.14 Service Shutdown.
© 2023 Nordson Corporation 5-1
5 Calibration and Adjustment
5.1 Overview
After initial installation or if any hardware changes have been made, certain dispensing system
components may need to be calibrated or adjusted. This section covers the following topics:
• Focusing the Camera
• Adjusting the Service Station Height
• Calibrating the Camera • Adjusting the Height Sensor Probe
(Option)
• Calibrating the Scale
• Initializing the Digital Gauges
• Adjusting the Z-Head Counterbalance Force
• Calibrating the Heaters
• Adjusting the Board Sensors
• Controlled Process Heat
• Calibrating the E/P Controllers • Adjusting Manual Airflow for
Impingement Heaters
• Adjusting the Air Pressure
• Adjusting the Lift Table Speed
5.2 Safety First
Operation of your dispensing system involves heat, air pressure, electrical power, mechanical devices,
and the use of hazardous materials. Read this manual in its entirety before attempting any system or
component operation. It is essential for all personnel working on or around the dispensing system to fully
understand the hazards, risks, and safety precautions associated with operating the system. When properly
operated and maintained, the dispensing system is safe and reliable. See Section 2 - Safety for additional
information.
WARNING! The procedures in this section should only be performed by a trained
service technician.
5.3 Record Keeping
The type of maintenance performed (such as preventive and parts replacement) should be recorded in
maintenance records for the dispensing system. Dates, part numbers/serial numbers of replaced parts,
names of technicians, and other pertinent data should be recorded.
S2-9XXX Series Dispensing System IOM Manual Calibration and Adjustment
5-2 © 2023 Nordson Corporation
5.4 Focusing the Camera
NOTE This procedure assumes the dispensing system has been powered on, Fluidmove is
running, and a representative substrate is available to teach the focal plane.
Tools and Materials Needed:
• 3 mm hex key
To focus the camera:
1. In the Fluidmove Programming Window, click the
Load a Board icon.
The conveyor will transport the substrate to the dispense station and the lift mechanism
will lift it off the conveyor belt. This establishes the focal plane.
2. In the Fluidmove Main Window, click on
Jog.
The Jog Window opens.
Refer to the Fluidmove User Guide or Fluidmove Online Help
for the Jog Window operation.
3. Click on
Video.
The Video Window opens.
4. Position the camera over a fiducial or an easily recognized feature on the substrate.
5. Loosen the locking ring on the camera lens (Figure 5-1).
6. Turn the middle section of the camera lens, clockwise or counterclockwise, until the middle
of the range of travel is reached. This will allow for fine focus after the camera is adjusted
for rough focus.
7. Tighten the locking ring.
Item Description
1 Locking Ring
2 Middle Section

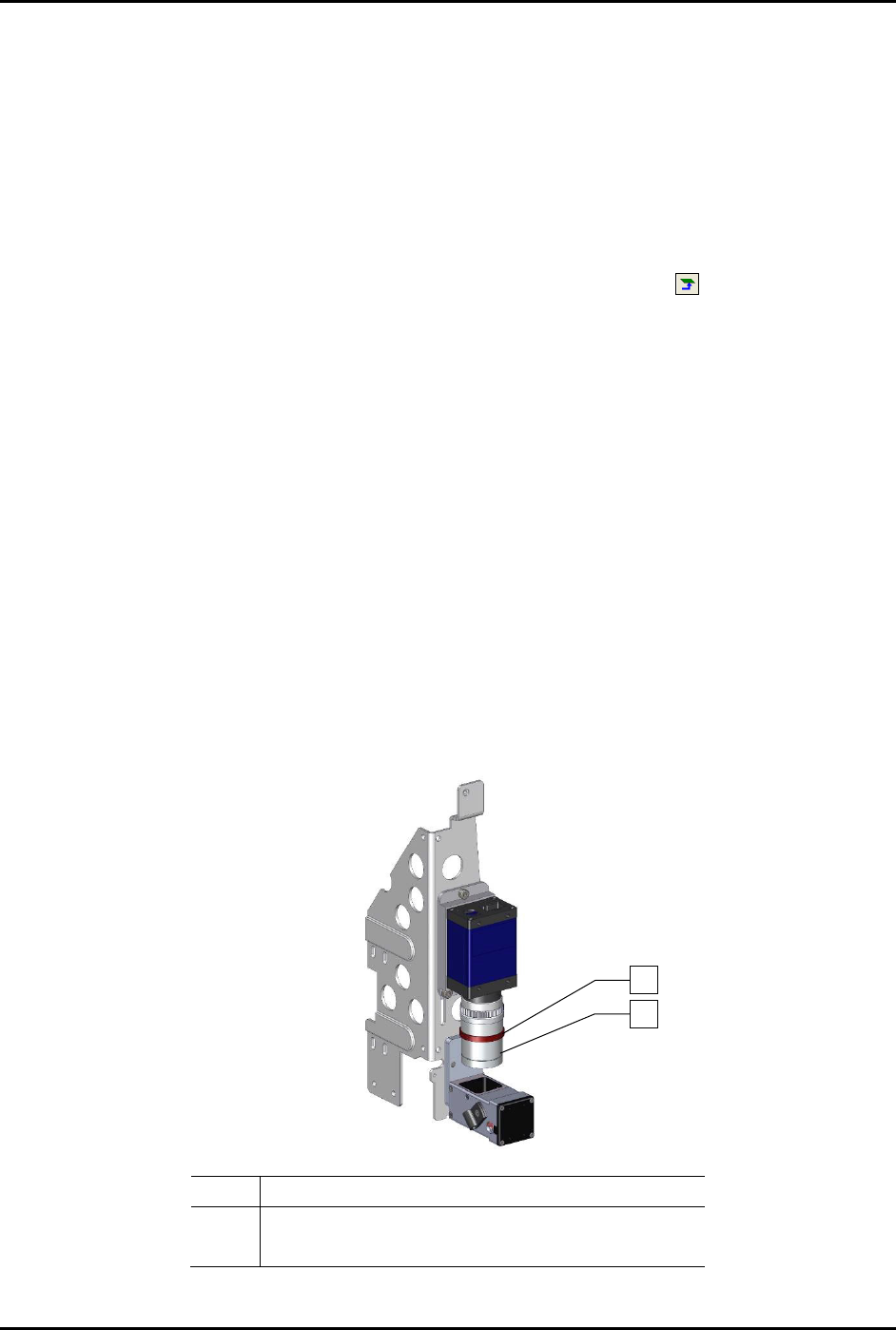

Figure 5-1 Focusing the Camera
1
2
