CM602 Parts List - 第372页
51-A 部品排 出コンベアM Chip Discharge Conveyor M パーツレイアウト Kit No. キット品 番 Kit Name キット名称 N610016666AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No. S163
Ref
No.
Remarks
R
1
Q't
y
50
バルクフィーダ対応ユニット
Unit for Bulk Feeder
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット品
番
Kit Name
キット名称
KXFX036RA00
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
AIR-BLOCK
1
1 KXFB02MUA00
COUPLER
27
2 KXF0DTHAA00 103C-M5-KK(DDA)
JOINT
1
3 KXF029KAA00 KJL06-01S
PLUG
1
4 KXF057WAA00 Plug 1/8
S162

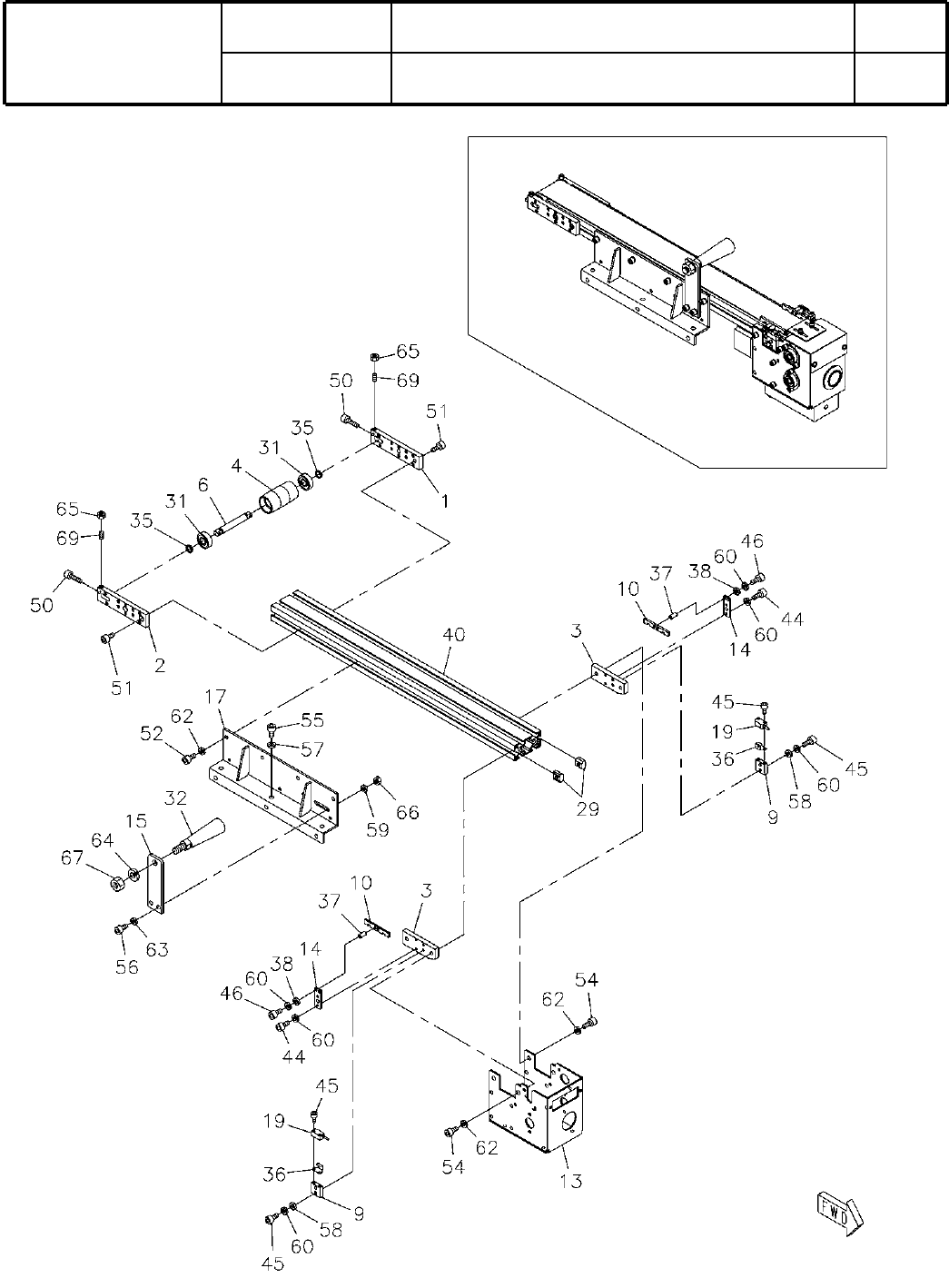

51-A
部品排
出コンベアM
Chip Discharge Conveyor M
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610016666AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
S163
Ref
No.
Remarks
R
1
Q't
y
51-A
部品排
出コンベアM
Chip Discharge Conveyor M
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット品
番
Kit Name
キット名称
N610016666AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 KXFB02TBA00
PLATE
1
2 KXFB02TCA00
PLATE
2
3 KXFB02TDA00
PULLEY
1
4 KXFB02TEA00
SHAFT
1
6 KXFB02TGA00
PLATE
2
9 KXFB02TKA00
BLOCK
2
10 N210045824AA
COVER
1
13 N210027616AA
BRACKET
2
14 KXFB02TTA00
PLATE
1
15 KXFB02TUA00
BRACKET
1
17 KXFB02VEA01
SENSOR
1
19 N610016663AA
NUT
12
29 KXF0ATHAA00 SFB-001
BEARING
2
31 KXF00JZAA00 6000ZZ
KNOB
1
32 KXF0A2XAA00 NP-10
C-RING
2
35 KXF04CRAA00 STW-10
SLIT
2
36 KXF0DG6AA00 OS-EX20E-05
SPACER
4
37 N510017092AA CB-312E
WASHER
8
38 KXF0AKJAA00 MSRB4-1.0
FRAME
1
40 KXF0DLMAA00 SFF-364 L=546(DA 0DLMA)
BOLT
4
44 N510017305AA
Hexagon socket head cap screw M3X10-10.9 A2J (Trivalent)
BOLT
8
45 N510017313AA
Hexagon socket head cap screw M3X16-10.9 A2J (Trivalent)
BOLT
4
46 N510017316AA
Hexagon socket head cap screw M3X20-10.9 A2J (Trivalent)
BOLT
2
50 N510017359AA
Hexagon socket head cap screw M4X25-10.9 A2J (Trivalent)
BOLT
4
51 N510017386AA
Hexagon socket head cap screw M5X10-10.9 A2J (Trivalent)
BOLT
4
52 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
4
54 N510017398AA
Hexagon socket head cap screw M5X20-10.9 A2J (Trivalent)
BOLT
3
55 N510017433AA
Hexagon socket head cap screw M6X16-10.9 A2J (Trivalent)
BOLT
2
56 N510017435AA
Hexagon socket head cap screw M6X20-10.9 A2J (Trivalent)
WASHER
3
57 N510018501AA
Round finish plain washer 6 10H A2J (Trivalent)
WASHER
4
58 N510020098AA Thick washer for M3
WASHER
2
59 N510020101AA Thick washer for M6
WASHER
12
60 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
WASHER
8
62 N510018332AA Spring lock washer No.2 5 S A2J (Trivalent)
WASHER
2
63 N510018334AA Spring lock washer No.2 6 S A2J (Trivalent)
WASHER
1
64 N510018338AA Spring lock washer No.2 10 S A2J (Trivalent)
NUT
2
65 N510017855AA
Hexagon nut Type-1 Best class M4-6H-4T A2J (Trivalent)
NUT
2
66 N510017867AA
Hexagon nut Type-1 Best class M6-6H-4T A2J (Trivalent)
NUT
1
67 N510017887AA
Hexagon nut Type-1 Best class M10-6H-4T A2J (Trivalent)
SCREW
2
69 XXE4D16FT
Hexagon socket set screw M4X16 Cup point Steel Black oxide finish
S164
