7OM-1603 Chapter 3 : 1. Maintenance Menu 3-1 1 102-003 1. Maintenance Menu 1.1 Outline of Maintenance Menu The following shows the hierarchical structure of the menus (including the submenus and windows) for the maintena…

100%1 / 187
7OM-1603
0908-001 3-B
7OM-1603
Chapter 3 : 1. Maintenance Menu
3-11102-003
1. Maintenance Menu
1.1 Outline of Maintenance Menu
The following shows the hierarchical structure of the menus (including the
submenus and windows) for the maintenance menu.
Note
The shadowed (gray) items are related to the multi-layer tray feeder.
Menus for Maintenance Reference Item Nos.
"Unit Adj." Submenu 1.3
1.2
1.4
1.4.1
1.4.2
"TRAY UNIT" Window
1.3.1
"Unit Change" Window
"Shipment Adj." Window
1.4.3
"DVC Check" Submenu
"INP/OUT" Window
"MOTOR" Window
"RECOG" Window
"COM. STAT" Window
"PRGM. INFO." Window
"MaintWM" Window
"Pass Opn." Window

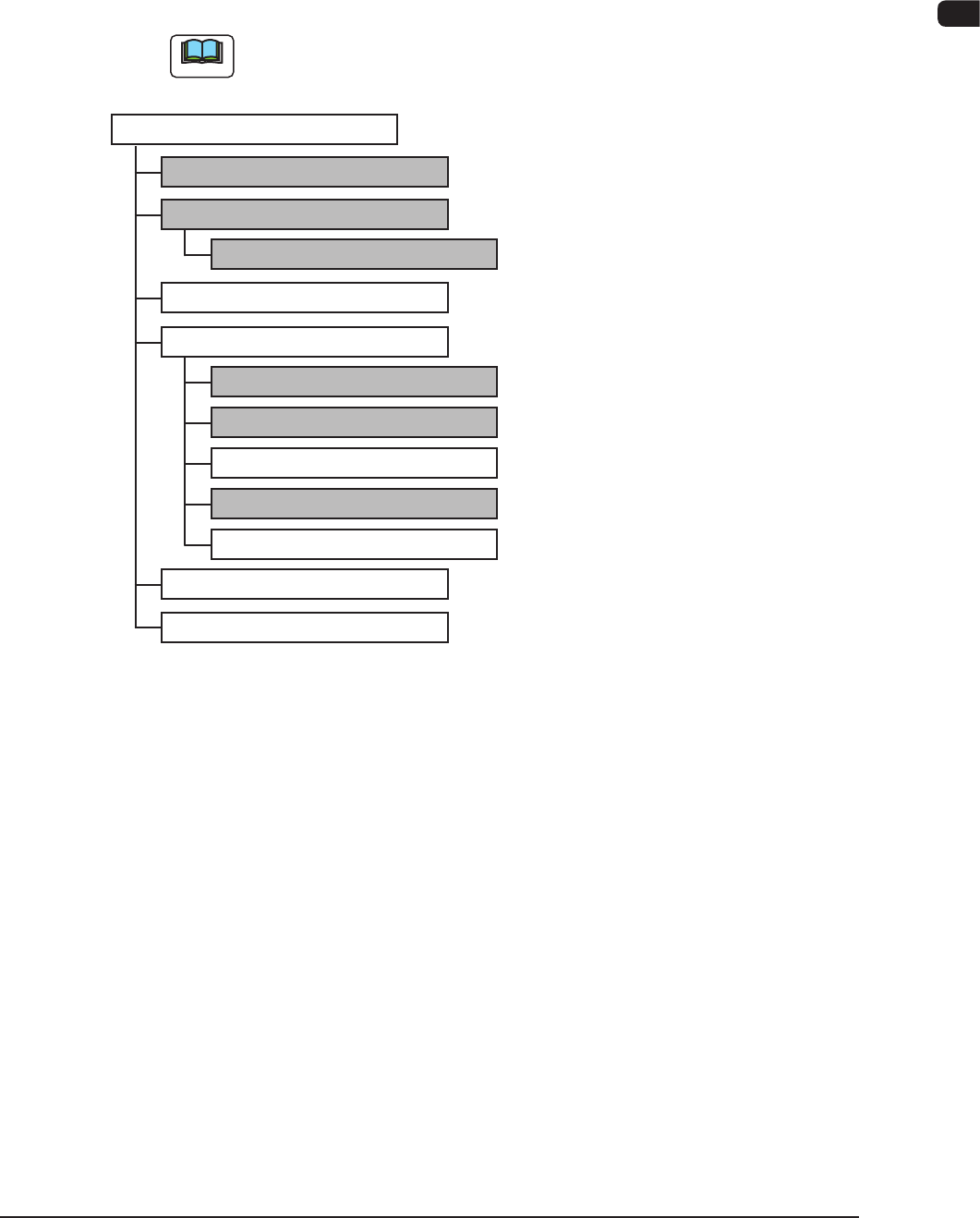

Outline of Maintenance Menu F7C1
7OM-1603
3-2
Chapter 3 : 1. Maintenance Menu
1102-003
1.2 "Unit Change" Window
[1]
[2]
[3]
[4]
[5]

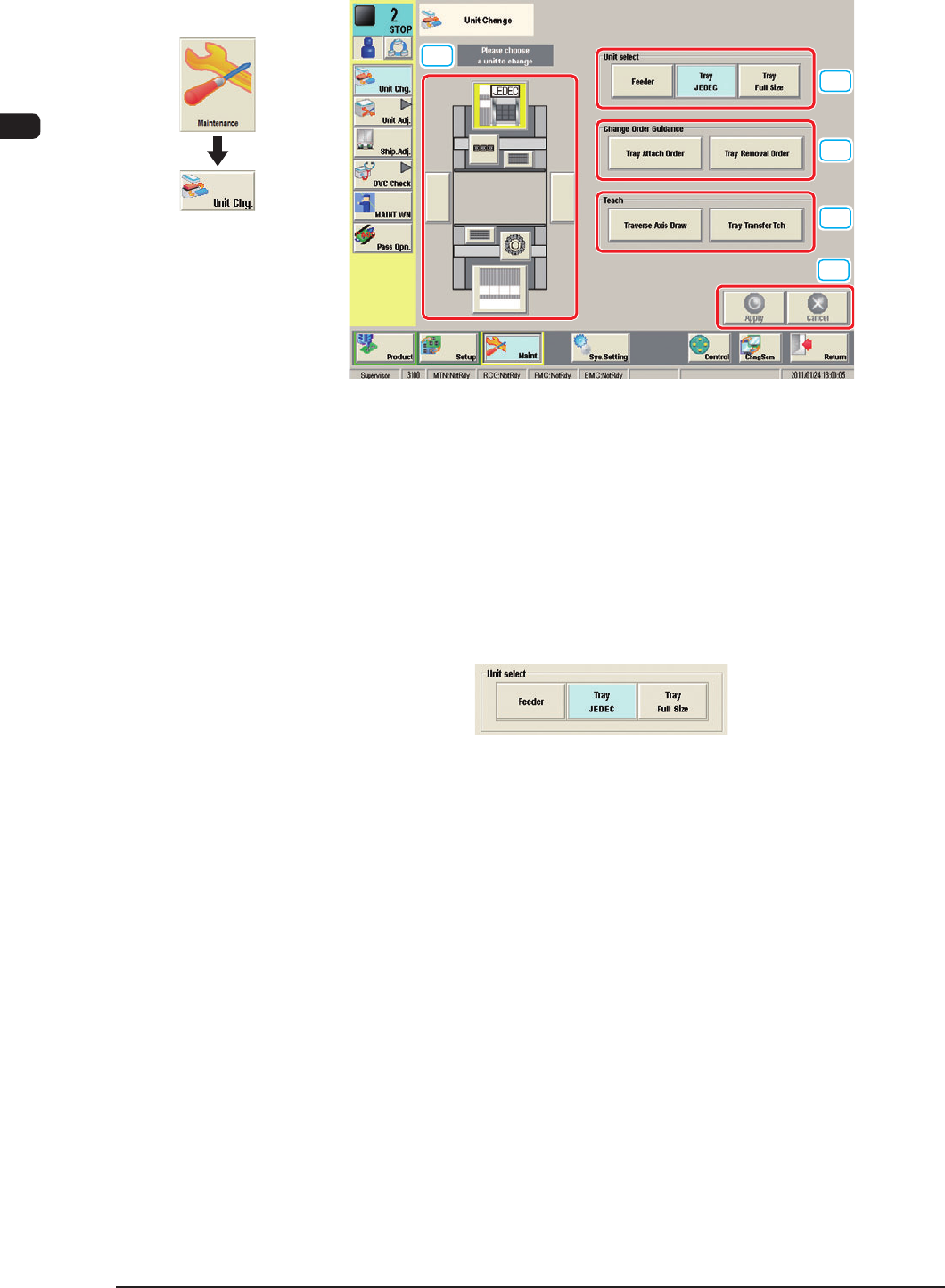

"Unit Change" window F7C2
[1] Unit Image
The image of the unit currently selected is displayed in this section.
[2] Unit select
The selection of the feeder to be changed, is performed using these selection
buttons.
The display changes according to the selected unit.
When "Tray JEDEC" is selected F7C3
