7OM-1603 Chapter 3 : 1. Maintenance Menu 3-3 [3] Change Order Guidance The multi-layer tray feeder attachment procedure window and removal procedure window, are displayed. "Change Order Guidance" Window F7C4 [4…
7OM-1603
3-2
Chapter 3 : 1. Maintenance Menu
1102-003
1.2 "Unit Change" Window
[1]
[2]
[3]
[4]
[5]
"Unit Change" window F7C2
[1] Unit Image
The image of the unit currently selected is displayed in this section.
[2] Unit select
The selection of the feeder to be changed, is performed using these selection
buttons.
The display changes according to the selected unit.
When "Tray JEDEC" is selected F7C3
Graphic
Development
7OM-1603
Chapter 3 : 1. Maintenance Menu
3-3
[3] Change Order Guidance
The multi-layer tray feeder attachment procedure window and removal
procedure window, are displayed.

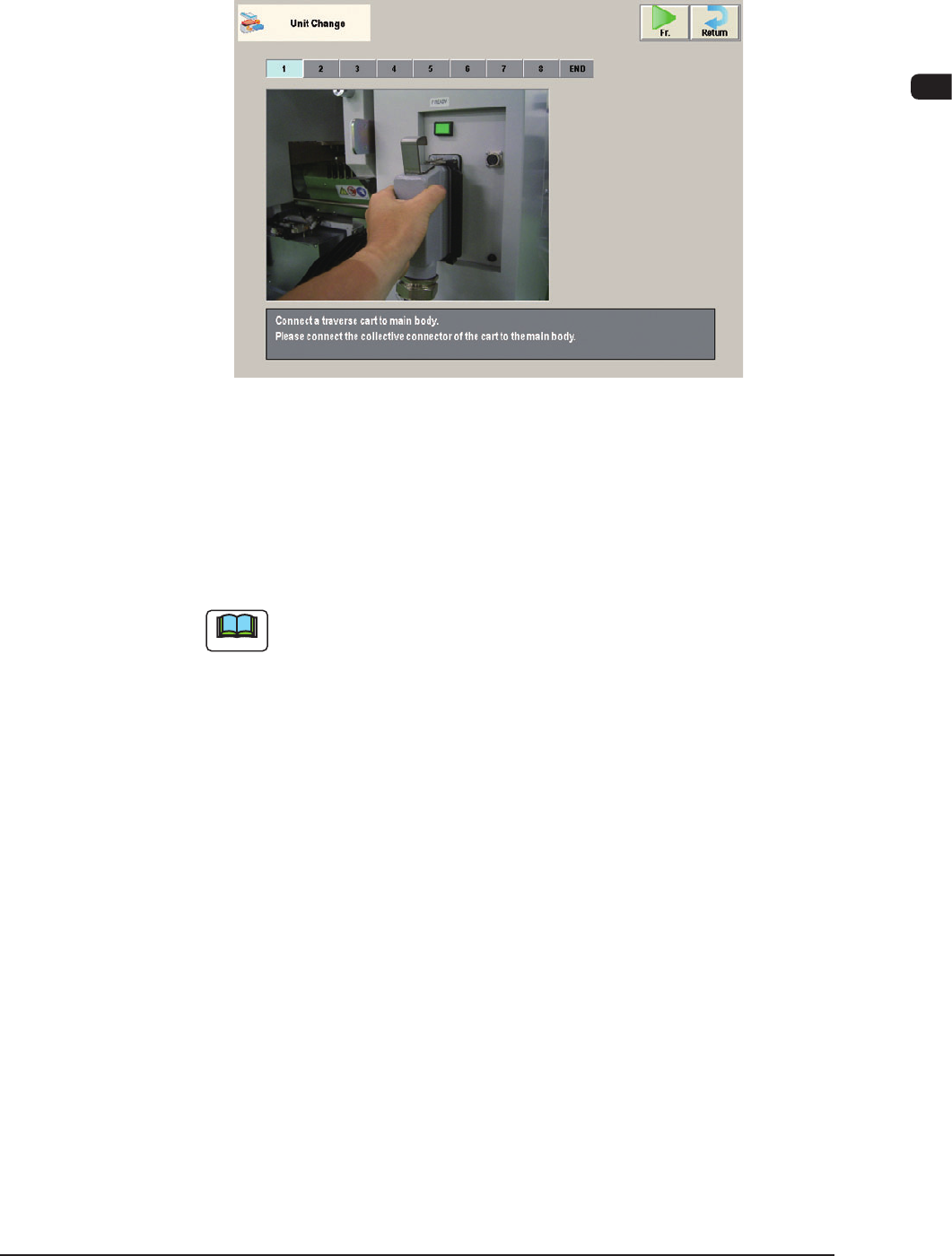

"Change Order Guidance" Window F7C4
[4] Teach
[Traverse Axis Draw] Button
When this button is pressed, the teaching operation for the traverse cart
drawing operation offset for each machine is performed by means of teaching
the mark position setup on the traverse cart chuck claw section.
Note
The traverse cart drawing teaching pin is required separately.
[Tray Transfer Tch] Button
When this button is pressed, the tray pallet transfer teaching operation is
performed.
[5] [Apply] Button, [Cancel] Button
[Apply] Button
When this button is pressed, the changed unit is applied.
[Cancel] Button
When this button is pressed, the changed unit is cancelled and the unit before
the change is returned.
1102-003
7OM-1603
3-4
Chapter 3 : 1. Maintenance Menu
1.2.1 Attachment Procedure of Multi-Layer Tray
Procedure
(1) Select the tray unit to be changed in the "Unit select" section box in the "Unit
Chg." menu.
(2) Press the [Tray Attach Oder] button in the "Change Order Guidance" section.
(3) Connect the traverse cart connecting bundled connector to the main machine
and position it on the main machine positioning section.
(4)
Move the elevator unit to the attachment position and adjust the elevator
height and inclination (It is to be adjusted only once immediately after the
installation.).
(5) Release the elevator clamper attached to the traverse cart.
(6)
Connect the bundled connector for the elevator unit and the air connection
plug to the traverse cart.
(7) Clamp the elevator unit.
(8) Press the [Fdr READY] switch and turn ON the power to the multi-layer tray
unit.
(9)
Turn the pan's knurled section in the elevator unit by hand to ground the feet
and tighten the M16 lock nut attached on the upper section of the pan using a
tool to x.
(10) Press the [Zero] button.
(The motor shaft for the multi-layer tray feeder will be "zeroed".)
(11) After the completion of zeroing operation, the "T
ray Traverse
Tch" is
performed automatically.
1007-003
