7OM-1603 Chapter 3 : 1. Maintenance Menu 3-13 1 102-004 1.4.2 "MOTOR" Window This window enables the operator to perform the manual alignment operation of each unit and display the current system data. "MO…
7OM-1603
3-12
Chapter 3 : 1. Maintenance Menu
1.4 "DVC Check" Submenu
1.4.1 "INP/OUT" Window
This window enables the operator to check the I/O status in each section.
"INP/OUT" window F7C11
Reference
Refer to "6.1 "INP/OUT" Window" in Chapter 1, Volume 3 for the details.
1102-004
Graphic
Development
7OM-1603
Chapter 3 : 1. Maintenance Menu
3-131102-004
1.4.2 "MOTOR" Window
This window enables the operator to perform the manual alignment operation of
each unit and display the current system data.
"MOTOR" window F7C12
Reference
Refer to "6.2 "MOTOR" Window" in Chapter 1, Volume 3 for the details.
1.4.3 "COM. STAT" Window
F7C13
Graphic
Development
7OM-1603
3-14
Chapter 3 : 2. Menus for System Setting
1003-002
2. Menus for System Setting
[1]
F7C14

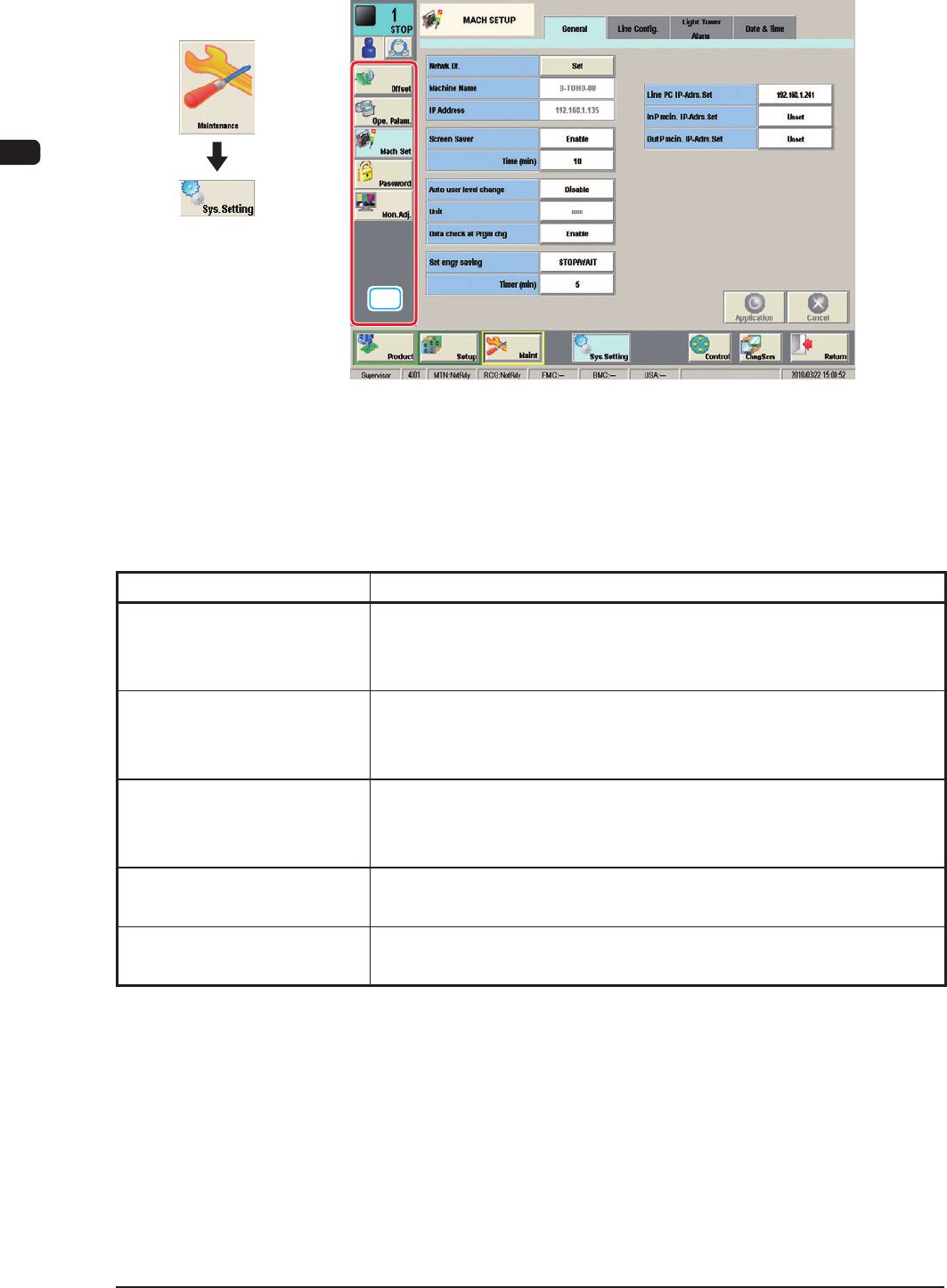

[1] "Sys.Setting" Main Menu Bar
The following buttons are arranged to display the operation windows for the
system environment setting.
Menu Buttons Description
Offset
The corresponding tab sheet enables the operator to set various kinds
of offset data for positional adjustment and accuracy of each device
section related to machine operation.
Ope. Palam.
The corresponding tab sheet enables the operator to set various
parameters related to automatic operation of the machine and check
the machine performance, production rate, production guidance, etc.
Mach Set
This enables the operator to set the screen saver function, specify the
unit of length, and enable or disable the data editing under production
operation.
Password
This enables the operator to set a password and the scope of authority
according to the given authority.
Mon. Adj.
This enables the operator to adjust the monitor.
T7C1
