7OM-1603
4-2
Chapter 4 : 1. Outline of Maintenance
1.2 Preparation for Maintenance
1.2.1 Preparation for Cleaning
Prepare the following items.
•
Rag
Use a rag made of such material as cotton, etc., that produces as less waste
thread as possible.
Notice
The remaining waste thread if any will cause the machine to break down.
•
Oiled Rag
Use a rag made of such material as cotton, etc., that produces as less waste
thread as possible.
Too much grease should not be applied and any different type of grease should
not be mixed into the specied one.
Notice
The remaining waste thread if any will cause the machine to break down.
0908-001
7OM-1603
Chapter 4 : 1. Outline of Maintenance
4-3
1.2.2 Preparation for Lubrication
Prepare for the specied types of grease and lubrication tools.
SpeciedGreases
•
DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)
•
MOLYNOC GREASE AP1 (NIPPON OIL CORPORATION)
Note
Before lubrication, wipe off old grease. Otherwise, the effect of grease and oil
will decrease.
Same Types of Lubricants
•
Grease Types equivalent to DAPHNE EPONEX GREASE No. 1
(IDEMITSU KOSAN)
Grease Names Makers
Alvania Grease No. 1 Showa Shell Sekiyu K.K
Multinoc Grease 1 NIPPON OIL CORPORATION
Jomo Lisonix Grease No. 1 JAPAN ENERGY CORPORATION
Dynamax No. 1 COSMO OIL LUBRICANTS CO., LTD.
Lithtan 1 ESSO OIL
MP Grease 1 KYGNUS
Gemico MP-1 TonenGeneral Sekiyu K.K
Multemp PS1 KYODOH YUSHI CO., LTD.
T7D1
•
Grease Types equivalent to MOLYNOC GREASE AP1
(NIPPON OIL CORPORATION)
Grease Names Makers
DAPHNE Grease M No. 1 Idemitsu Kosan Co., Ltd.
Jomo Lisonix Grease M No. 1 JAPAN ENERGY CORPORATION
COSMO MOLYBDEN
GREASE No. 1
COSMO OIL LUBRICANTS CO., LTD.
BEACON Q2 ESSO OIL
Gemico MD2 TonenGeneral Sekiyu K.K.
M5 GREASE 1 KYGNUS
T7D2
0908-001
7OM-1603
4-4
Chapter 4 : 1. Outline of Maintenance

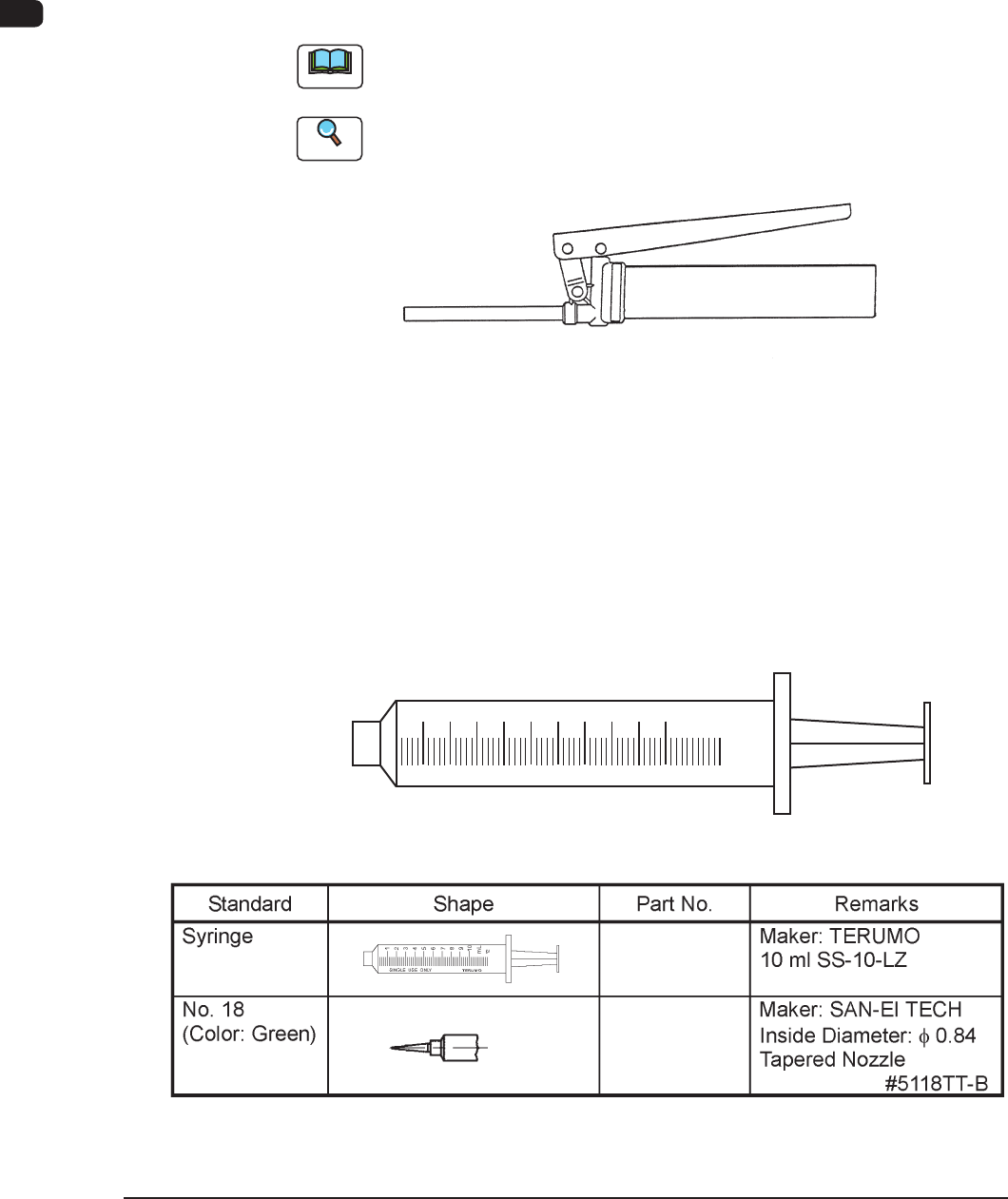

Speciedlubricationtools
(1) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(2) Hand Grease Gun
Standard
: KH-120
Part No.
: 228A022
Maker
: Yamada Corporation
Note
(a) Use this gun only for DAPHNE EPONEX GREASE No. 1.
(b) Please purchase a hand grease gun or attachments whenever necessary.
Reference
Refer to the attached instruction manuals for the hand grease gun for the usage.
F7D1
(3) Syringe
This syringe can be used for two kinds of greases.
Use the syringes and the nozzles properly.
Two Kinds of Greases
: DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance
1
2
3
4
5
6
7
8
9
10
12
mL
SINGLE USE ONLY
TERUMO
F7D2
228A0171
216M0451
0916D712
No. 49
Length : 145 mm
T7D3
1003-002
