7OM-1603 4-14 Chapter 4 : 3. Maintenance Spots Elevator Clamp Rod Every Year Inspection Required Time : 1 minute Check any sign of abrasion on the clamp rod visually. F7D7 0908-001
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-131007-003
•
L-cover Removal from the Elevator Unit Side Surface
(1) Zero the multi-layer tray feeder.
(2) Open the "TRAY UNIT" window and move the eleva
tor to the place where
the grease can easily be supplied. (Operation Sequence: [MAINT] Button on
Main Menu → [Unit Adj.] Button on "MAINT" Submenu → [TRAY] Button
on "Unit Adj." Submenu → "TRAY UNIT" Window)
(3) Turn off the power.
(4) Remove the set screws (M4L6) (6 locations).
WARNING
Before detaching the maintenance cover, be sure
to turn off the power breaker and lock it with a
padlock.
Remove six setscrews (M4L6).
Remove the L-cover from the
elevator unit side surface.
F7D6
(5) Slide the L-cover on the elevator unit side surface and remove it.
•
Attachment of Maintenance Cover
Attach the maintenance cover using the reverse procedure of the L-cover
Removal from the elevator unit side surface.
CAUTION
After the maintenance work, be sure to attach the
cover back in place.
7OM-1603
4-14
Chapter 4 : 3. Maintenance Spots

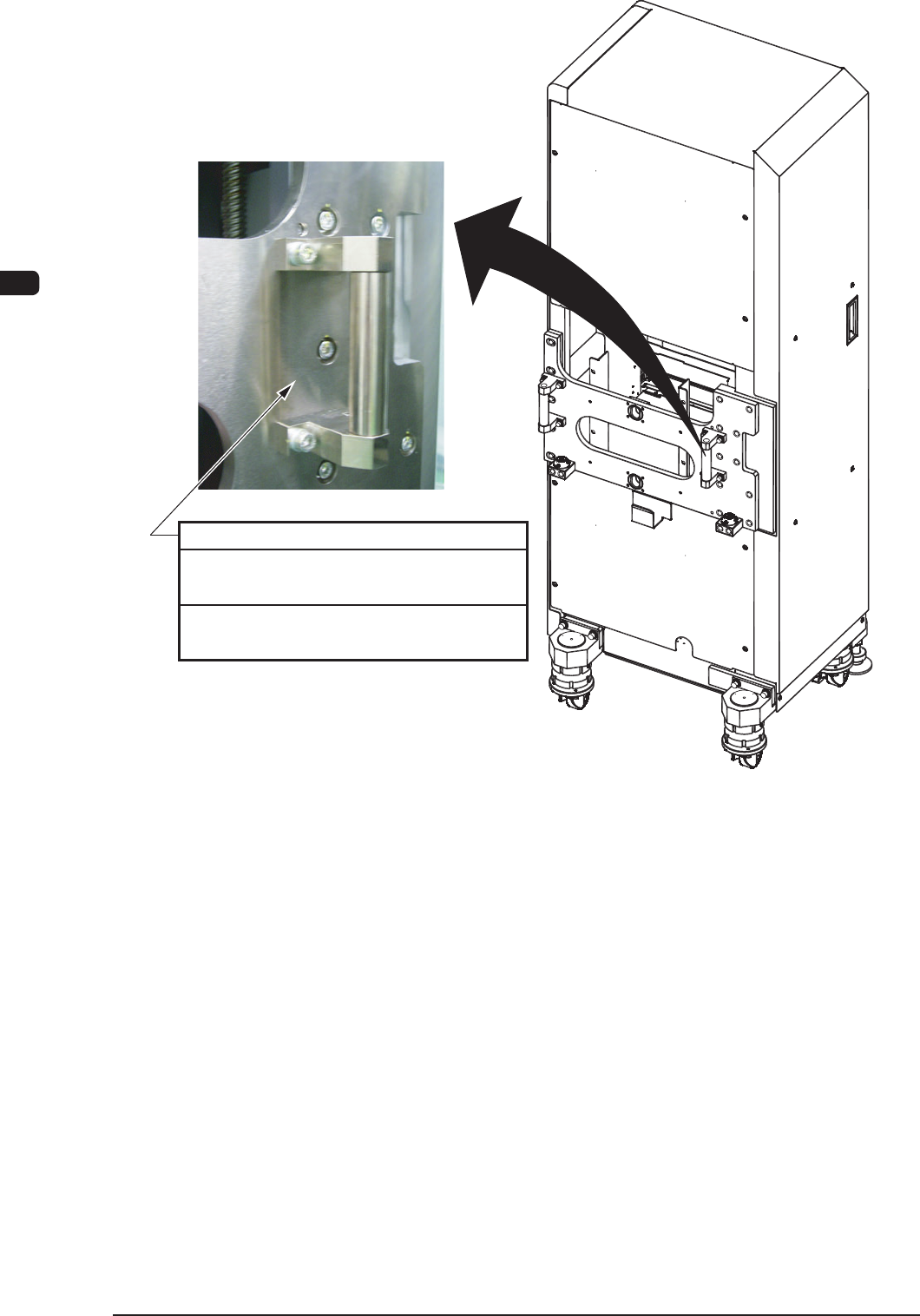

Elevator Clamp Rod
Every Year Inspection
Required Time : 1 minute
Check any sign of abrasion on the clamp
rod visually.
F7D7
0908-001
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-15

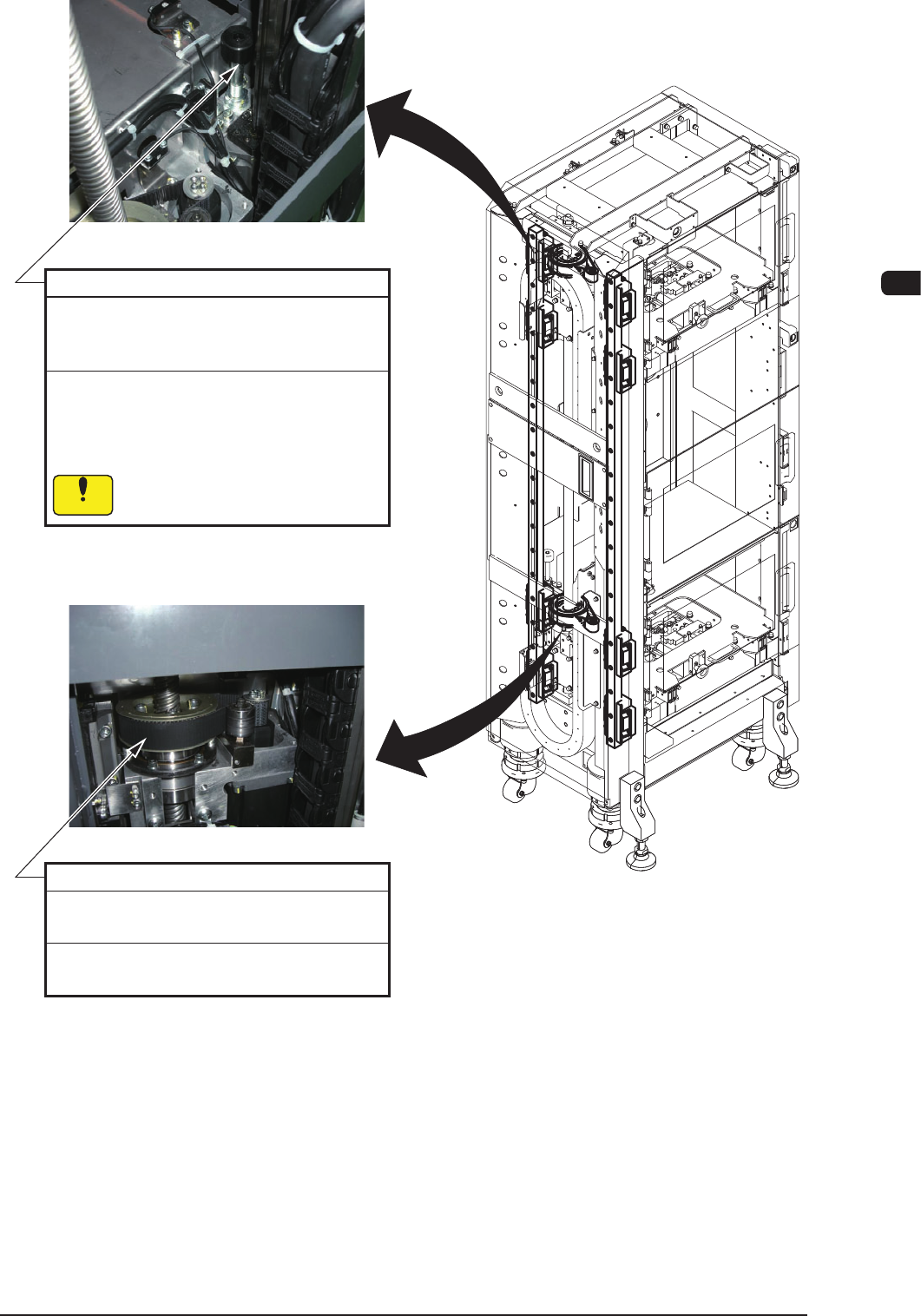

Linear Guide
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with an oiled rag and
apply new one with a brush or supply
grease from eight grease nipples with a
grease gun.
Take ample care not to leave any
waste threads after cleaning.
Belt
Every Year Inspection
Required Time: 1 minute
Visually inspect the wear of the belt.
Notice
F7D8
