Chapter 4 : 3. Maintenance Spots
4-17

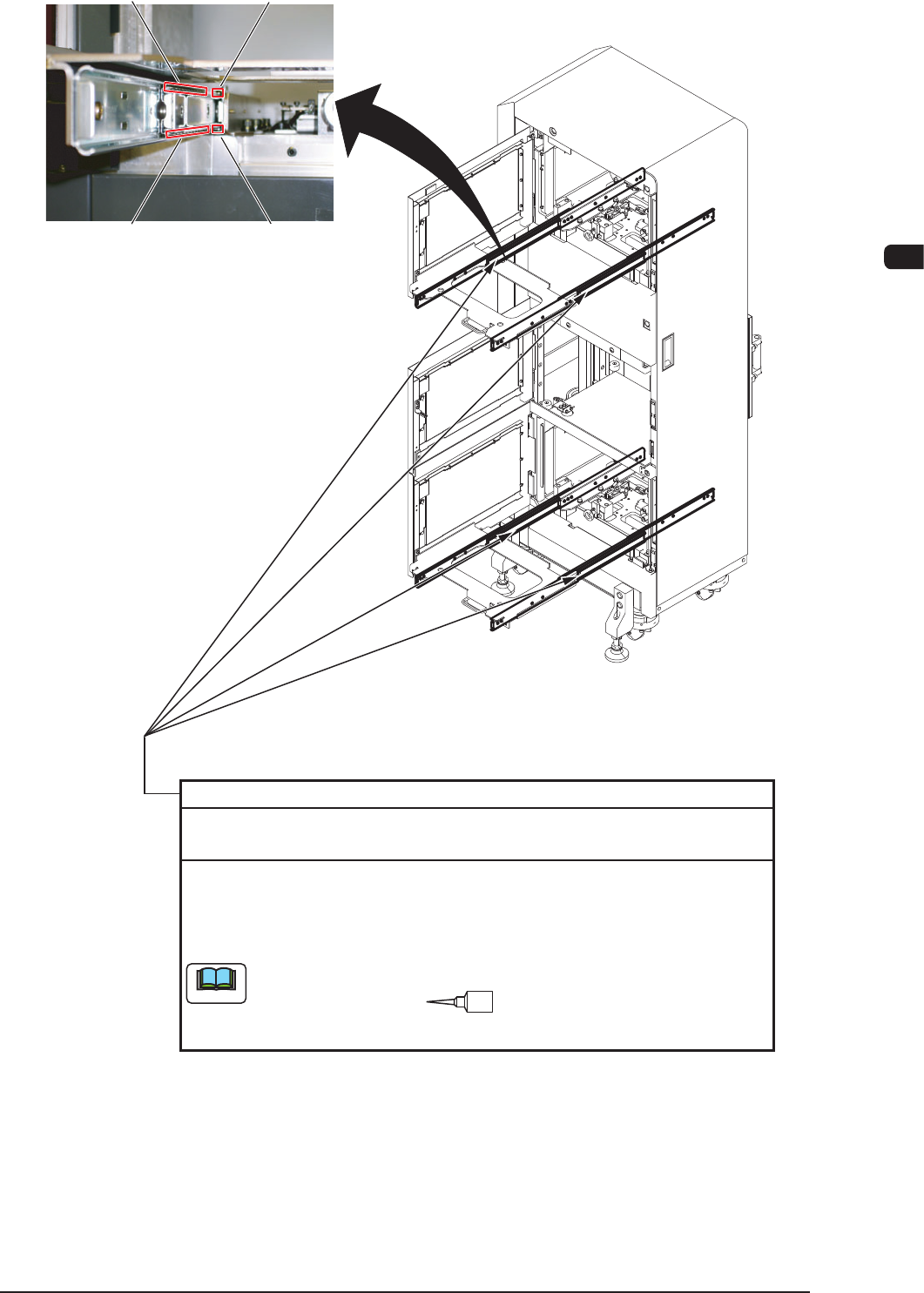

Magazine Rail
Every Year Lubrication (DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Draw out the magazine base.
Apply new grease to the bearings (8 pcs. on each rail) on the right and left
magazine rails (the front upper and lower rails and the rear upper and
lower rails) with a syringe.
Use No. 18 (green) nozzle.
No.18
Upper Front Bearing Upper Rear Bearing
Lower Front Bearing Lower Rear Bearing
Note
F7D10
1003-002
7OM-1603
4-18
Chapter 4 : 3. Maintenance Spots
3.2.4 Magazine
Rack Shutter Fulcrum Section (6 locations)
Every 3 Months Lubrication (MOLYNOC GREASE AP1)
Required Time: 30 minutes
Wipe off old grease from the upper and lower fulcrum sections of the rack shutter
with an oiled rag and apply new one to them with a syringe.
Take ample care not to leave any waste threads after cleaning.
Use No. 18 (green) nozzle.
No.18
Magnified View of Rack Shutter
Magnified View of Magazine Door
Note
Notice
F7D11
1007-003
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-19
3.2.5 Traverse Cart
Linear Guide
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease using an oiled rag.
Inject 40cc of new grease into the oiling port
on the linear guide block using a cylinder.
Pallet Receiver
Every 3 Months Inspection
Required Time: 1 minute
Visually inspect the wear of the pallet
receiver.
When the receiver is worn out to the extent
that the pallet is warped, follow the steps
below for the replacement.
1. Remove five bolts (6 on side)
fastening the pallet receiver and detach
the receiver.
2. Attach a new pallet receiver and tighten
the bolts.
Take ample care not to leave any
waste threads after cleaning.
Use No. 18 (green) nozzle.
No.18
Bolt
Elevator Clamper
Every Year Lubrication
(MOLYNOC GREASE AP1)
Positioning Pin
Every Year Lubrication
Required Time : 1 minute
(MOLYNOC GREASE AP1)
Wipe off old grease using an oiled rag.
Check abrasion on the pilot pin.
Apply new grease using a syringe.
Note
Notice
F7D12
1003-002
