7OM-1603 4-20 Chapter 4 : 3. Maintenance Spots Pallet Chuck Every 3 Months Lubrication (DAPHNE EPONEX GREASE No. 1) Required T ime: 5 minutes W ipe off old grease with an oiled rag and apply new one to the grooves of the…
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-19
3.2.5 Traverse Cart
Linear Guide
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease using an oiled rag.
Inject 40cc of new grease into the oiling port
on the linear guide block using a cylinder.
Pallet Receiver
Every 3 Months Inspection
Required Time: 1 minute
Visually inspect the wear of the pallet
receiver.
When the receiver is worn out to the extent
that the pallet is warped, follow the steps
below for the replacement.
1. Remove five bolts (6 on side)
fastening the pallet receiver and detach
the receiver.
2. Attach a new pallet receiver and tighten
the bolts.
Take ample care not to leave any
waste threads after cleaning.
Use No. 18 (green) nozzle.
No.18
Bolt
Elevator Clamper
Every Year Lubrication
(MOLYNOC GREASE AP1)
Positioning Pin
Every Year Lubrication
Required Time : 1 minute
(MOLYNOC GREASE AP1)
Wipe off old grease using an oiled rag.
Check abrasion on the pilot pin.
Apply new grease using a syringe.
Note
Notice
F7D12
1003-002
7OM-1603
4-20
Chapter 4 : 3. Maintenance Spots

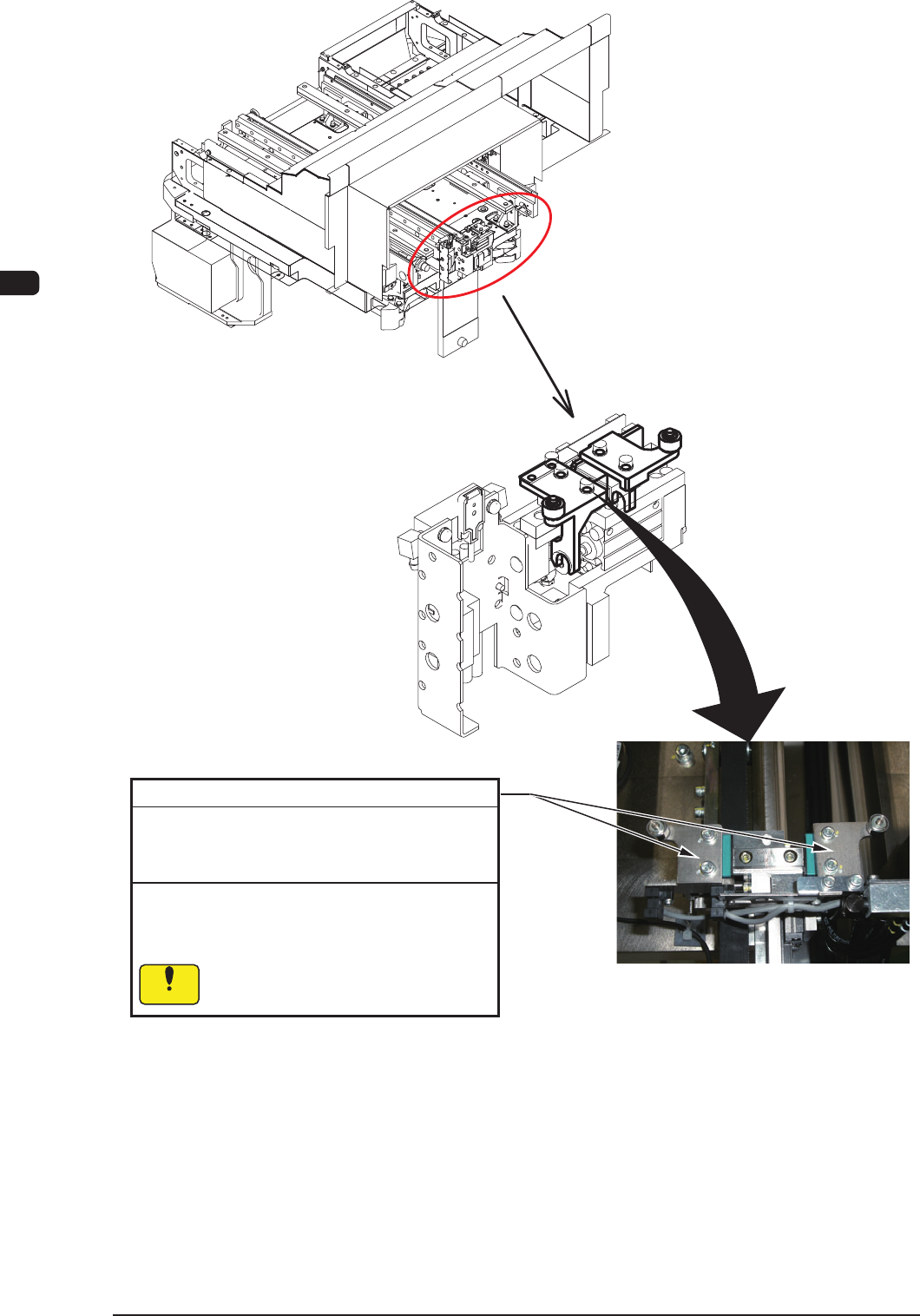

Pallet Chuck
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with an oiled rag and
apply new one to the grooves of the linear
guide rails with a hand.
Take ample care not to leave any
waste threads after cleaning.
Notice
F7D13
0908-001
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-211003-001
•

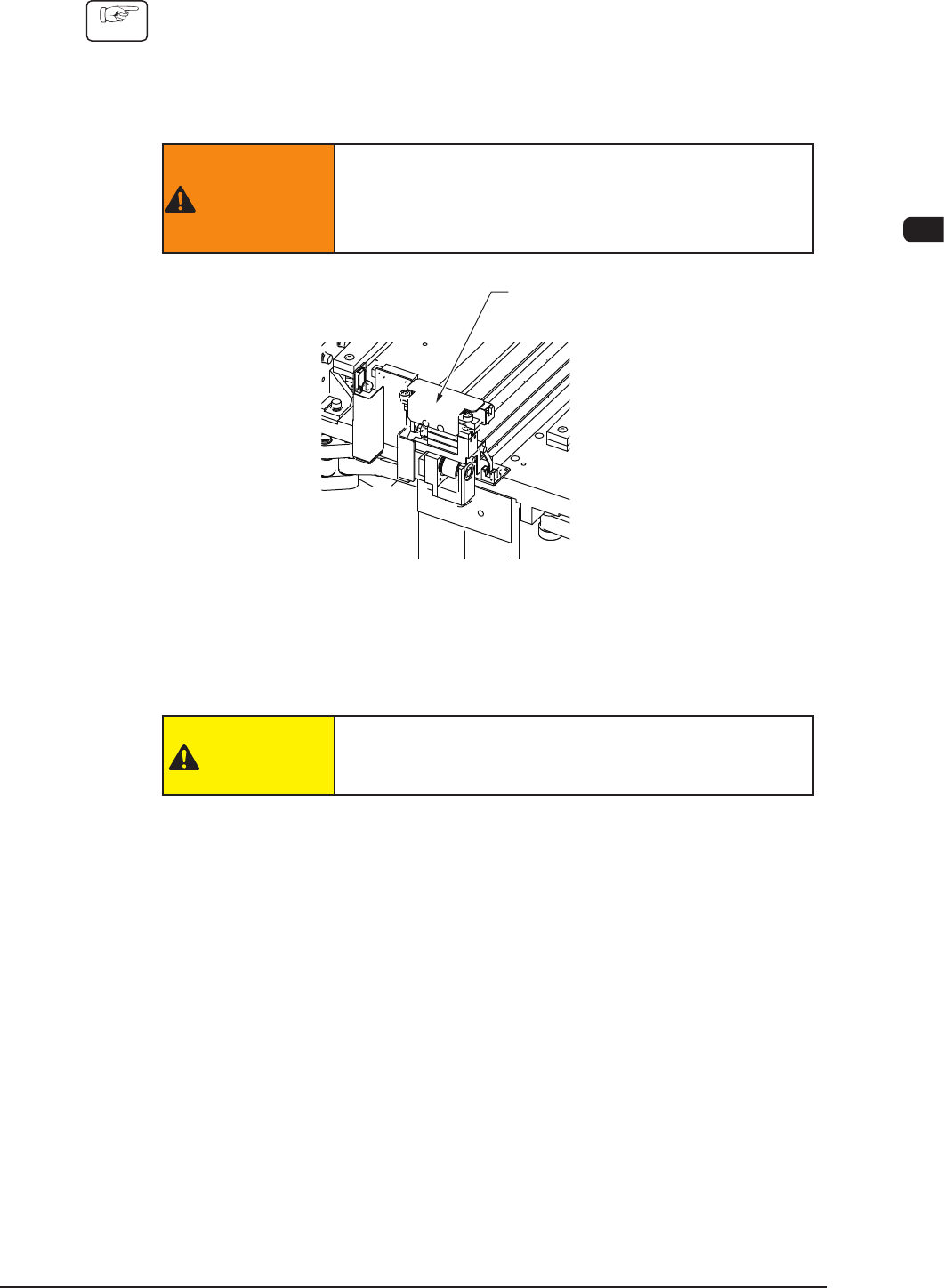

Removal of the Pallet Chuck Protection Cover
Procedure
(1) Zero the multi-layer tray feeder.
(2) Turn off the power.
(3) Remove the set screws (M3L4) (2 locations).
WARNING
Before detaching the maintenance cover, be sure
to turn off the power breaker and lock it with a
padlock.
Pallet Chuck
Protection Cover
F7D14
•
Attachment of the Maintenance Cover
Attach the maintenance cover using the reverse procedure of the removal of the
pallet chuck protection cover.
CAUTION
After the maintenance work, be sure to attach the
cover back in place.
