7OM-1603 Chapter 4 : 3. Maintenance Spots 4-23 3.2.5.1 Cutter Unit Remove the screw on the other side. (12 locations) Cutter Box Inside Every W eek Cleaning (1) Detach the bank feeder change cart. (2) (3) Use a vacuum cl…
7OM-1603
4-22
Chapter 4 : 3. Maintenance Spots
1003-002
Groove on Feeder Base
Every Week Cleaning
Required Time: 2 minutes
Suck dirt and dust with a vacuum cleaner.
Upper Surface of Feeder Base
Every Day Cleaning
Required Time: 2 minutes
Remove foreign substances and unrequired
components with a vacuum cleaner and
wipe off dirt and dust with a rag.
F7D15
Scrap Box
Every Day Cleaning
Required Time: 1 minute
When the scrap box is filled with the tape with
no components, draw the scrap box out and
remove such tape.
Reel Box
Every Day Cleaning
Required Time: 5 minutes
Clean the dust and debris at the bottom of the
reel box using a vacuum cleaner, or open the
cover and drop any dust and debris into the
scrap box.
F7D16
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-23
3.2.5.1 Cutter Unit
Remove the screw on the other side. (12 locations)
Cutter Box Inside
Every Week Cleaning
(1) Detach the bank feeder change cart.
(2)
(3)
Use a vacuum cleaner with a narrow air opening
in the nozzle.
Note
Narrow Air Opening in Nozzle End
(Recommended)
Required Time: 10 minutes

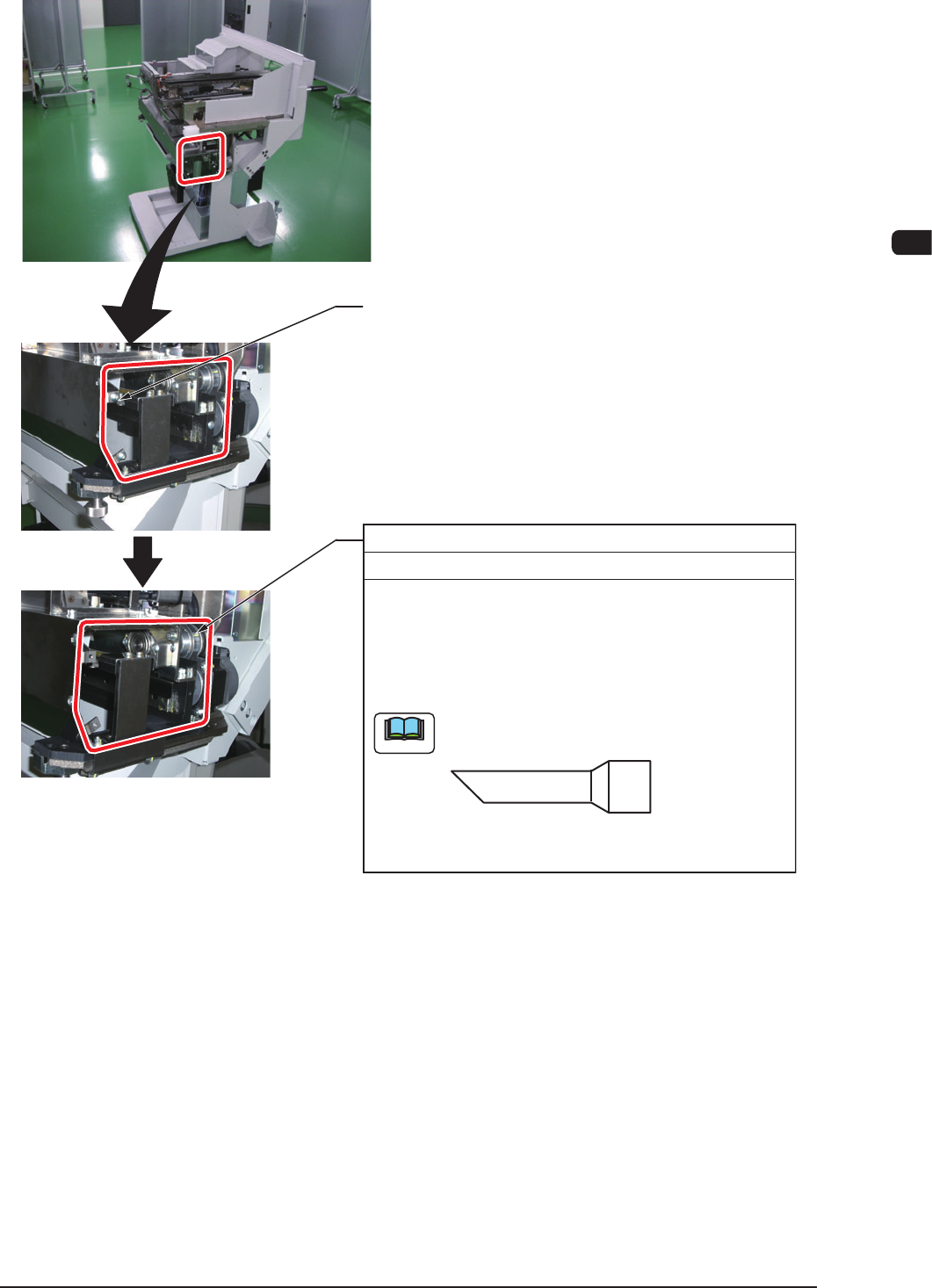

Remove the screws (12 locations) on the cutter unit in
the bank feeder change cart and remove the cover.
Clean any debris or dust inside the cutter unit using the
vacuum cleaner.
F7D17
1003-002
7OM-1603
4-24
Chapter 4 : 3. Maintenance Spots
WARNING
Pay close attention to the cutter blade during the
maintenance work.
•
Lack of attention will result in a hand injury, etc.
Wear gloves and take the greatest care in performing
the work.
•
Be sure to attach the cutter blade cover to the cut unit
during the maintenance work for safety purposes.
Linear Guides
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes

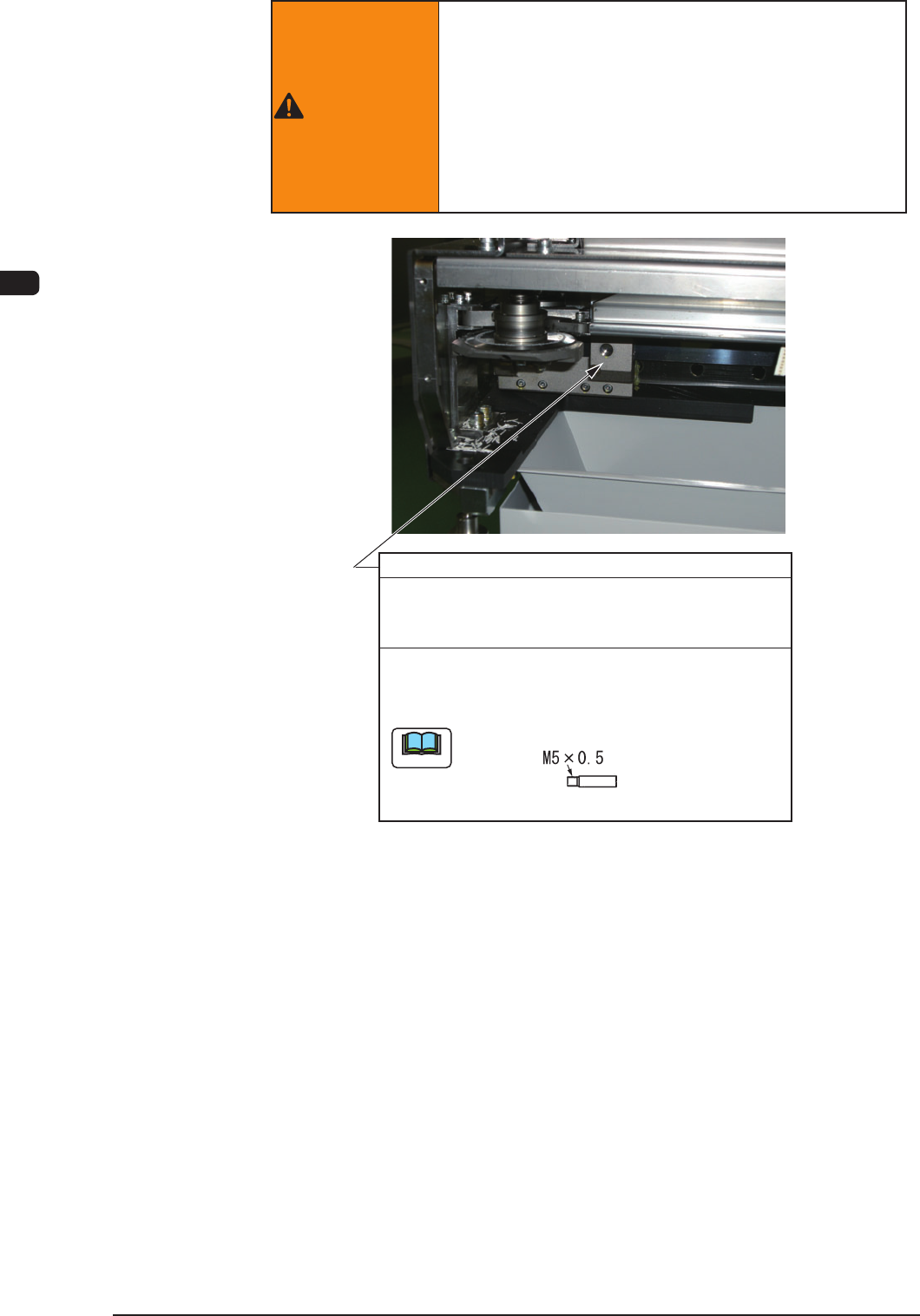

(1) Remove 12 screws.
(2)
Use Type N nozzle.
Type N
Note
Wipe old grease out using a rag and apply new grease
onto the linear guide (upper and lower sides).
F7D18
