7OM-1603 4-28 Chapter 4 : 3. Maintenance Spots (3) Attach the cutter blade cover. (1) Remove the front safety bar and take out the cutter from the cart. ② ⑥ ① ④ ⑤ ③ ③ ② ⑥ ⑤ Front Safety Bar Urethane Clamp (2) Remove the …
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-27

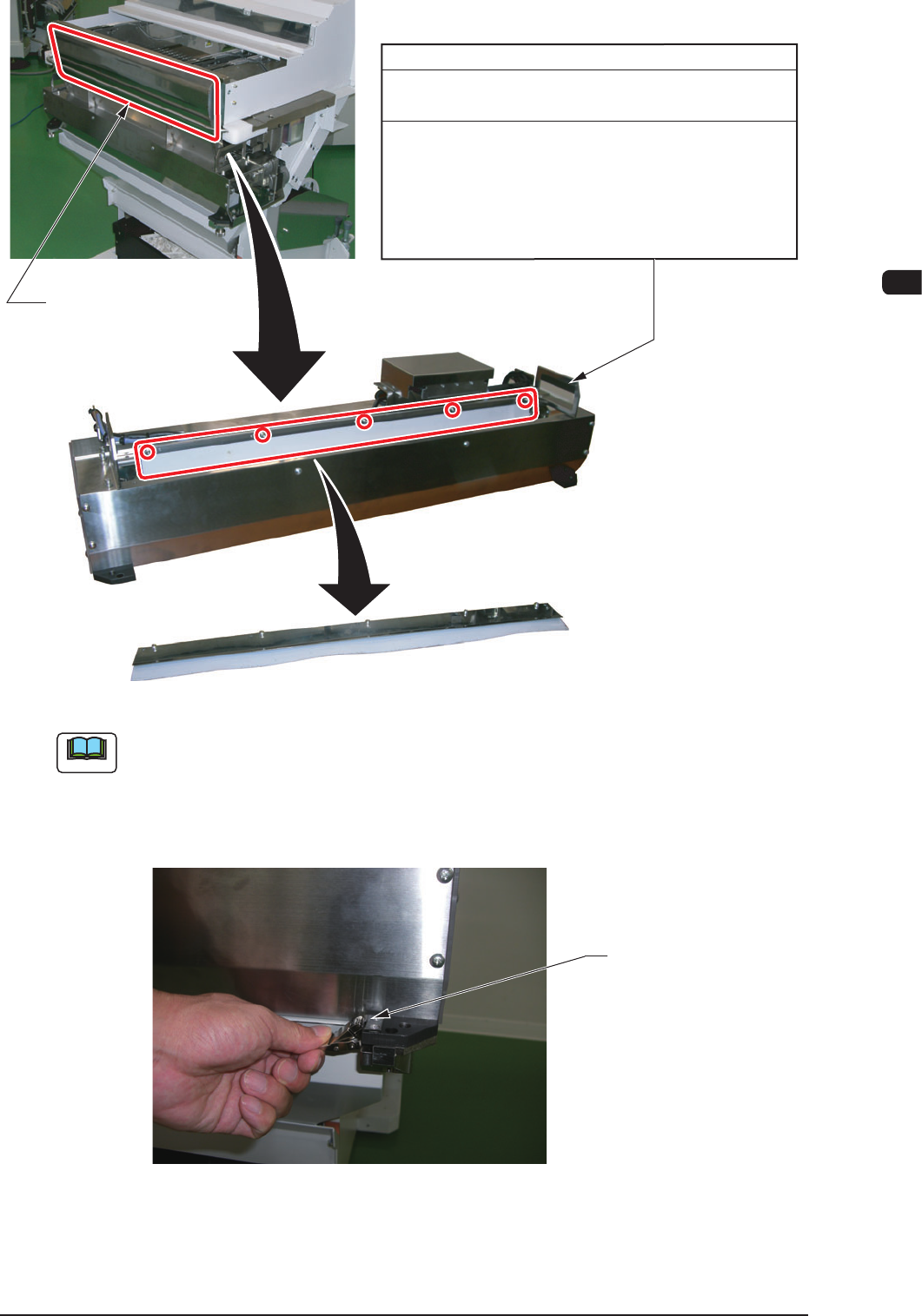

(2) Remove the tape guide.
(1) Remove the front safety bar and take out the cutter
from the cart.
(3) Remove five screws.
(4) Replace the fluorine sheet.
Fluorine Sheet
Every Year Replacement
Required Time: 15 minutes
Front Safety Bar
Catch Locks
Removed fluorine-processed sheet.
(a) When the cutter is setup on the cart, fix the two
connectors securely.
(b) When the cutter is setup on the cart, push the cutter
into the end and fix it securely using the catch locks
(2 locations).
(C) Do not forget to attach the safety cover.
Note
F7D20
1007-003
7OM-1603
4-28
Chapter 4 : 3. Maintenance Spots

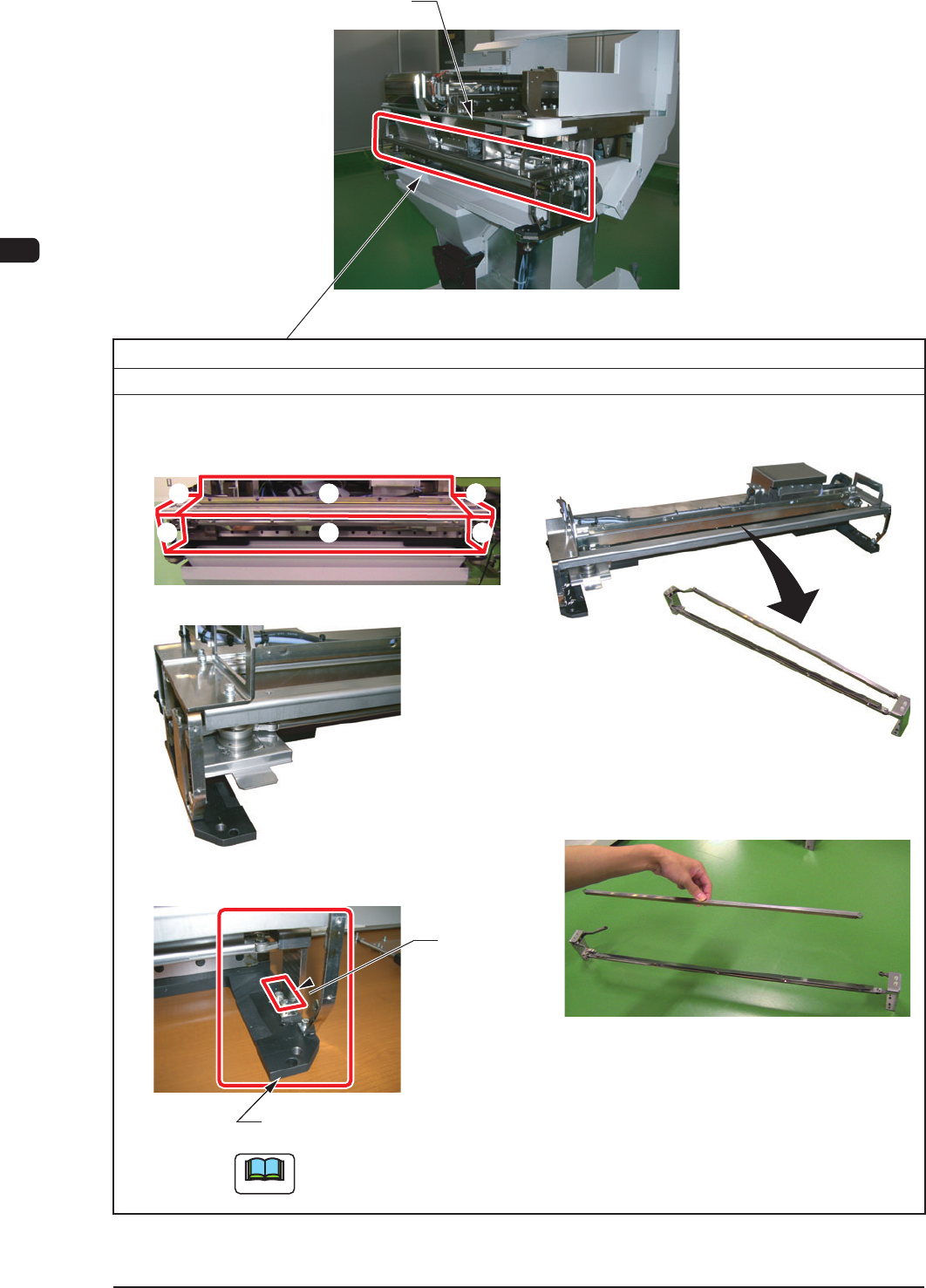

(3) Attach the cutter blade cover.
(1) Remove the front safety bar and take out the
cutter from the cart.
② ⑥ ①
④ ⑤ ③
③
②
⑥
⑤
Front
Safety Bar
Urethane Clamp
(2) Remove the cutter section covers (6 locations).
(4) Remove the screws on the right and left of the clamp
lever base.
(5) Remove the clamp lever together with the clamp
lever base.
(6) Remove the clamp lever from the clamp lever base
and replace the clamp lever by new one.
Remove
the screw.
Remove the screw also on the other side.
Every Year Replacement Required Time: 30 minutes
When the cutter is setup on the cart, fix the two connectors securely.
Do not forget to attach the safety cover.
Note
F7D21
1003-002
7OM-1603
Chapter 4 : 4. Consumable and Servicing Parts
4-29
4. Consumable and Servicing Parts
4.1 List of Consumables
Listed below are the parts that may be consumed within one year.
Contact our marketing department or sales agency whenever you need to purchase
some of these parts.
Name Part No. Part Name Q'ty
Recommended
Q'ty/Year
Exploded
View
Remarks
Pallet 0921B1610 GS-MP100 30 -
T7D11
4.2 List of Important Servicing Parts
Listed below are the parts for which maintenance work is required in several
years. The list below is provided for your reference.
Note
Since replacement work of important servicing parts requires highly
sophisticated technique, consult our service personnel for details.
4.2.1 JEDEC / FULL Size Traverse Cart Unit
Name Part No. Part Name Q'ty
Recommended
Q'ty/Year
Exploded
View
Remarks
Bracket 0921B002 BRACKET 1 -
Bracket 0921B003 BRACKET 1 -
Photo Electric
Sensor
23G00182 SENSOR, PELEC 3 -
Slit 23G00183 SENSOR, PELEC 3 -
Linear Guide 0921B101 GUIDE, LINEAR 1 -
Linear Guide 222L0976 GUIDE, LINEAR 1 -
Photo Electric
Sensor
0921B104 SENSOR, PELEC 1 -
Photosensor 0921B301 SENSOR, PHOTO 2 -
Photosensor 23G10029 SENSOR, PHOTO 1 -
Sensor
Amplier 23G00244 SENSOR, PELEC 1 -
Fiber 23G00157 SENSOR, PELEC 1 -
Positioning Pin 216E1754
PIN,LOCATE 1 -
Positioning Pin 0921B402 PIN,LOCATE 1 -
Fiber 0921B300 SENSOR, PELEC 2 -
Sensor
Amplier 23G00247 SENSOR, PELEC 1 -
JEDEC / FULL Size Traverse Cart Unit T7D12
