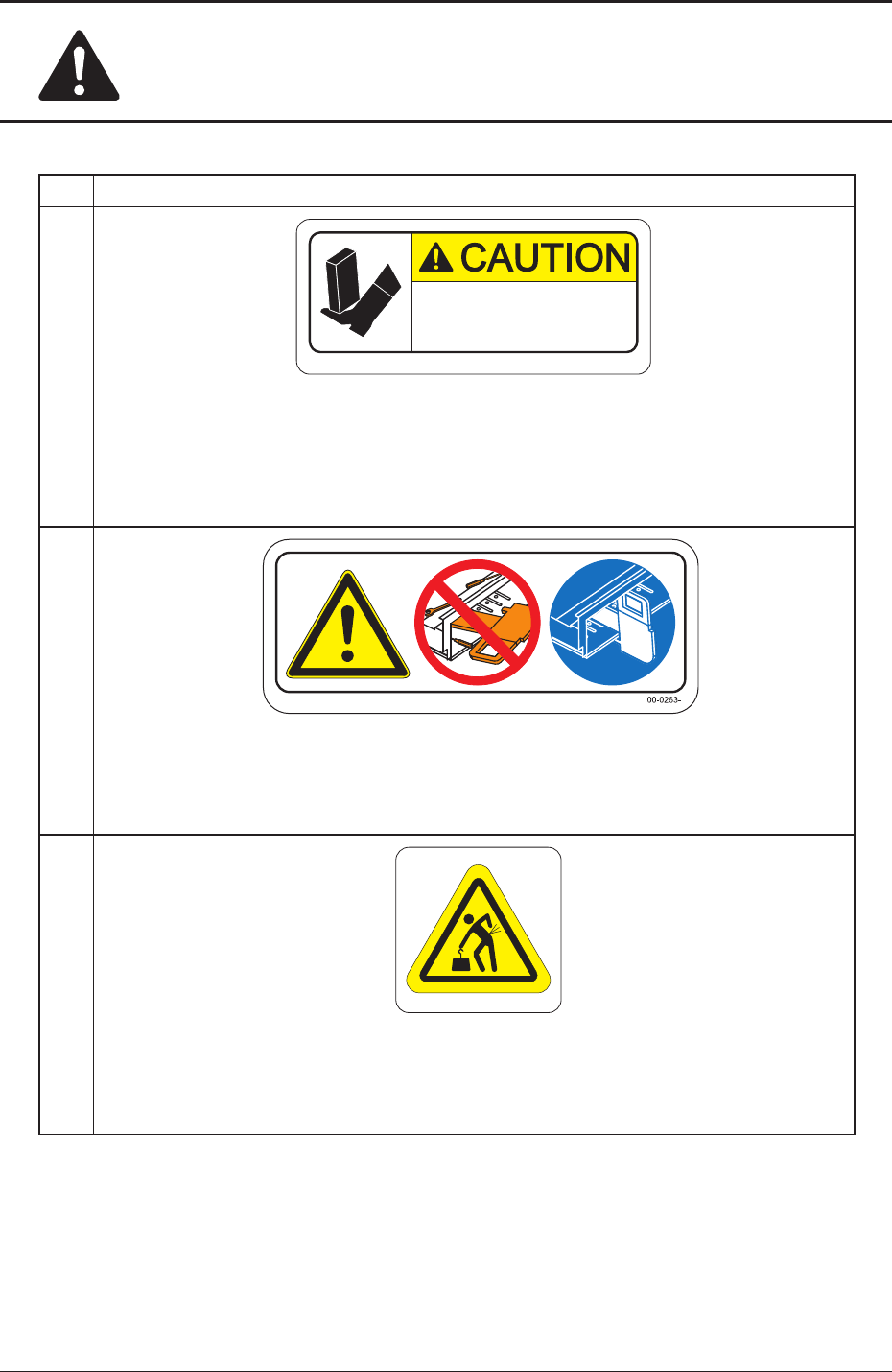

Safe-17
Safety Precautions
7OM-1603
No. Alert Labels and Description
(13)
10-0278-
Avoid dropping a cutter!
It is heavy and if dropped, an injury will result.
Remove or attach the cutter unit with the
handle securely held.
Description
Do not drop a cutter. Otherwise, a foot injury will result or the cutter itself may be
damaged.
Carefully handle each cutter one by one and do not drop any.
(14)
Description
Do not put any feeder sideways nor tools on the feeder bases. Otherwise, the
machine will break down.
(15)
10-0298-
kg
Description
Because the magazine is heavy, take care handling it when it is moved. Otherwise,
you might injure your arm or waist.
1102-002
4. Alert Labels
Safe-18
Safety Precautions
7OM-1603
No. Alert Labels and Description
(16)
10-0288-
Before setting up the recycle conveyor,
open the feeder incorrect setup
preventive cover.
Description
When the recycle conveyor is to be used, set it with the feeder setup error
prevention cover opened.
(17)
10-0297-
Description
In the case that the total mass of the magazine exceeds 20
kg, it should be lifted and
moved by two people.
1102-001
4. Alert Labels
Safe-19
Safety Precautions
7OM-1603
5. Precautionary Items for Correct Operations
Requirements for Installation
Besuretofulllthefollowingrequirementsforsafetypurposes.
•
Overvoltage Category : Category
III
•
Pollution Degree : 3
•
Altitude : 1,000 m or less above the sea level
Overvoltage Categories refer to the level of Impulse Withstand Voltage protection
provided at the specied Pollution Degree.
Category III
:
Primary circuits of a device to which power is directly
supplied from the power distribution panel, and circuits from
the distribution panel to outlets.
Note
The term was changed from "Installation Category" to "Overvoltage
Category".
"Pollution Degree" is a degree of pollution severity.
Pollution Degree 3 : Conductive pollution or dry nonconductive pollution that
becomes conductive due to condensation occurs.
To be found in industrial environment or construction sites
(harsh environments).
Altitude means the height above sea level of the place where the machine is to be used.
Note
When the machine is used in a place that has an altitude of 1,000 meters
or more, consult with the Marketing Dept of Hitachi High Technologies
or a sales agent.
1102-002
5. Precautionary Items for Correct Operations
