Chapter 1 : 1. Outline
1-11102-003
1. Outline
1.1 What is Multi-Layer Tray Feeder?
This unit consists of the JEDEC / FULL size traverse cart and cutter unit and
elevator unit and is used to supply the tray components to be setup on the elevator
unit to the "chip mounter SIGMA-G4/G5"
1.2 Specications
noitpircseDmetI
1. Model Name GS-FP100 : JEDEC Size Multi-Layer Tray Feeder
GS-FP200 : FULL Size Multi-Layer Tray Feeder
2. Construction of
Device
• JEDEC / FULL Size Traverse Cart
• Cutter Unit
• Elevator Unit
• Magazine (GS-MG100) : 2 pieces / Elevator Unit
For 15 Steps pf Pallet (Total Component Thickness 8 mm or less)
• Pallet (GS-MP100) : 15 Pieces / Magazine
Notes : (a) The magazine (GS-MG100) is dedicated to the multi-layer
tray feeder for SIGMA-G4/G5.
The use of the magazine (MG-G110/115) for GXH-1/3 is not
available.
(b) The pallet (GS-MP100) is dedicated to the multi-layer
tray feeder for SIGMA-G4/G5.
The use of the pallet (MP-G100) for GXH-1/3 is not available.
• Tray Fixing Magnet (GS-MF100) : 30 Pieces / Magazine
T7A1
7OM-1603
1-2
Chapter 1 : 1. Outline
Item Description
3. Applicable Tray
JEDEC Size Multi-Layer Tray Feeder (GS-FP100)
a b t1 t2 S (Leeway) Mass
Min. 100 100 3 3
Note f
－ －
Max. 136 323 30
Note a
Note e
30
Note a
Note e
－
Note b
2 kg
Note c
FULL Size Multi-Layer Tray Feeder (GS-FP200)
a b T1 t2 S (Leeway) Mass
Min. 100 100 3 3
Note f
－ －
Max. 230 330 30
Note a
Note e
30
Note a
Note e
－
Note b
2 kg
Note c
Unit : mm
Unit : mm
T7A2
1003-002
7OM-1603
Chapter 1 : 1. Outline
1-3
Item Description
Notes : (a) "t1" or "t2" ("Note a" in the above table) is more than 8 mm and
14 mm or less in height (thickness), keep the upper pallet empty
for such components.
(b) "S (Leeway)" becomes "Max. 0.5 mm" when the outer
dimensions of the mold is "9 × 9 mm" or less.
(c) The mass of components and the tray fixing magnet is included.
(d) Some trays cannot be used due to the mechanical characteristics.
(e) When the tray where "t1" or "t2" value exceeds 14 mm, is to be
handled, the multi-functional head is required.
(f) In the case that "t2" value is less than 3 mm, the middle-size
odd-shaped nozzle (option) is required.

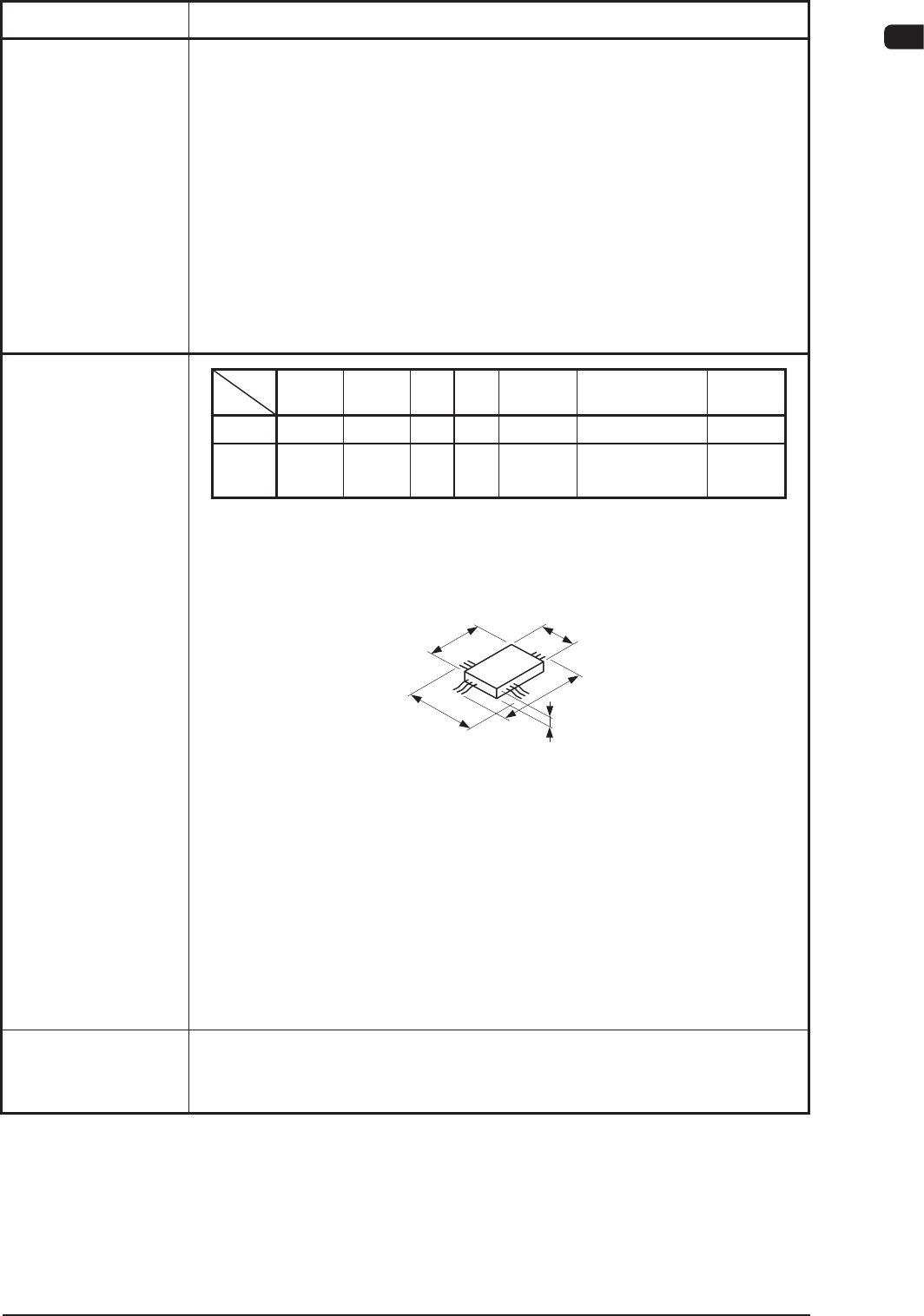

4. Applicable
Components
Applicable Components
• Flat Packaged ICs
• Connector
• Other similar-shaped components
t
a
d
b
c
Unit : mm
Notes : (a) In the case of connector, up to 100 × 26 mm can be handle.
(b) The irregular-shaped components can also be used when an
optional device is provided.
(c) Some components cannot be used due to the mechanical
characteristic.
(d) When the component size (a × b) exceeds "44 × 44 mm" the
multifunctional heads (option) are required.
(e) In the case that the "t" value exceeds 12.7mm, the multi-
functional head (option) is required.
5. Number of
Installable Types
of Components
Max. 9 types / pallet (used under programming)
• When the magazine (GS-MG100) is used : 270 type
a b c d t Lead End
Thickness
Mass
Min. 7 7 5 5 - 0.10 -
Max. 55
Note d
55
Note d
52 52 25.4
Note e
-
20 g
T7A3
