7OM-1603 Chapter 1 : 1. Outline 1-5 1003-002 n o i t p i r c s e D m e t I 8. T otal Mass of Magazine Max. 40 kg / magazine Note : The total mass of installed magazines should be Max. 2 k g per pallet. Referential T otal…
7OM-1603
1-4
Chapter 1 : 1. Outline
noitpircseDmetI

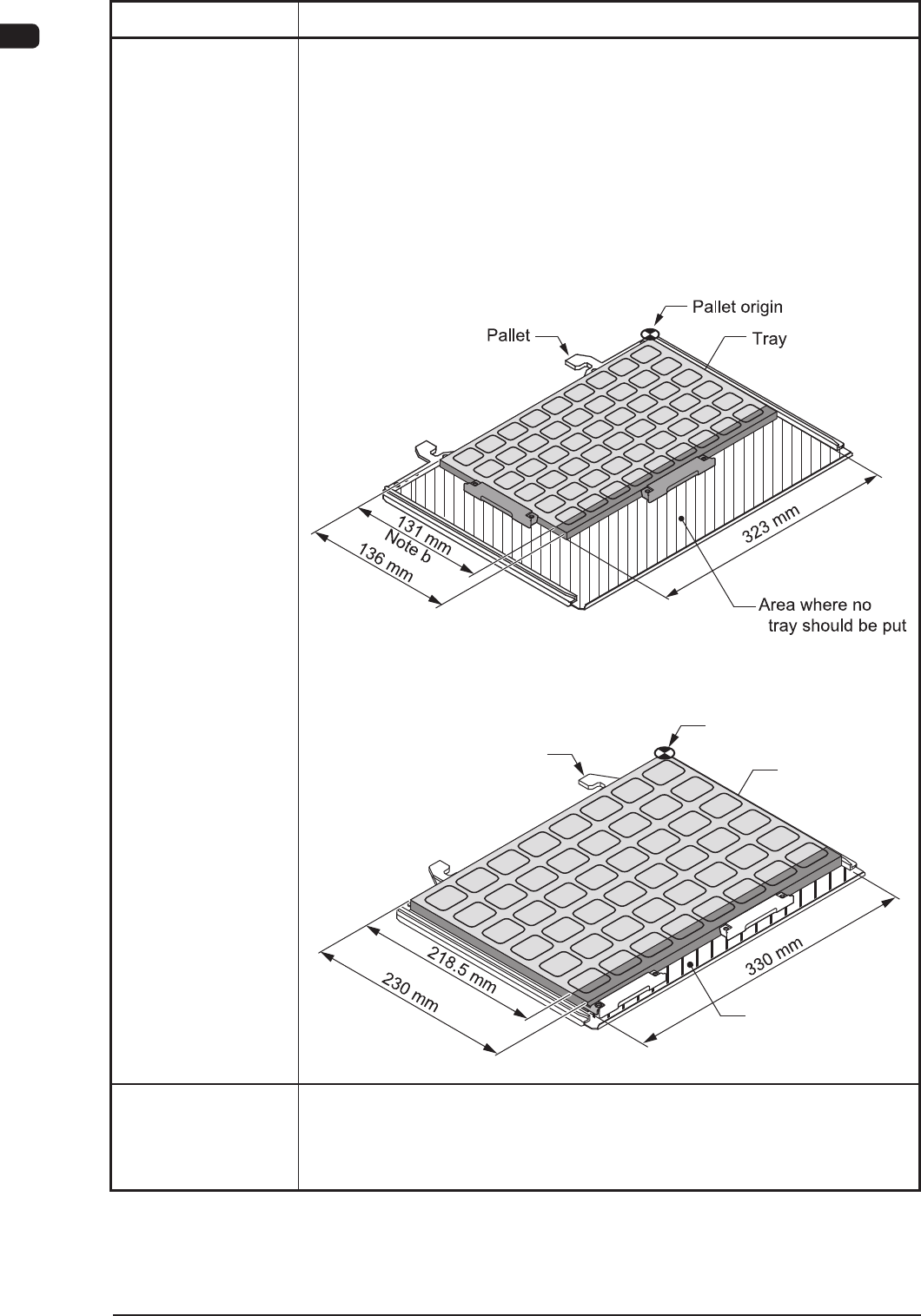

6. Tray
Arrangement
Notes : (a) No tray should be put in the shadowed area.
(b) In the case of the multi-functional head (GS-MH100), the
components with the size range of over 131 mm can not be
picked up.
(c) In the case of the multi-functional head (GS-MH100), the
components with the size range of over 218.5 mm can not be
picked up.
JEDEC Size Multi-Layer Tray Feeder (GS-FP100)
FULL Size Multi-Layer Tray Feeder (GS-FP200)
Area where no
tray should be put
Pallet origin
Pallet
Tray
Note c
7. Installable
Number
of Pallets
Max. 15 pallets / magazine × 2 magazines
Note : The number of installable pallets is limited, depending upon the tray
height.
T7A4
1102-003
7OM-1603
Chapter 1 : 1. Outline
1-51003-002
noitpircseDmetI
8. Total Mass of
Magazine
Max. 40 kg / magazine
Note : The total mass of installed magazines should be Max. 2 kg per pallet.
Referential Total Mass
{(Component + Tray Fixing Magnet + Magnet Attachment)
+ Pallet} × 15 Steps + Magazine
= {1.63 + 0.7} × 15 + 5
= 40 kg
9. Magazine Batch
Replacement
Magazines can be replaced in batches.
10. Magazine
Separation
Function
The section where magazines are installed can be transferred at the upper or
the lower end of the elevator, making it possible to replace magazines or trays
while the machine is running.
11. Power Supply 200 V AC (The power is supplied from the main machine of SIGMA-G4/G5.)
12. Apparent Power Approx. 3.0 kVA (Reference)
13. Air Pressure 0.45 MPa (4.6 kgf/cm
2
)
Note : Use the dry and clear air as follows.
Moisture
: Dew Point - 17 ºC or less (Atmospheric Pressure)
Oil
: 0.1 mg/m³ or less (ANR)
Dust
: Solid 0.01
µm or less
(The air is supplied from the main machine of SIGMA-G4/G5.)
14. Air Consumption Approx. 2 L/min (Normal)
15. Mass JEDEC / FULL Size
Traverse Cart : Approx. 140 kg
(The total mass of magazines is excluded.)
Elevator Unit : Approx. 180 kg
(The total mass of magazines is excluded.)
Magazine : Approx. 5 kg
(The total mass of Pallets is excluded.)
Pallet : Approx. 700 g
Tray Fixing Magnet : Approx. 25 g
Magnet Attachment : Approx. 2 g
T7A5
7OM-1603
1-6
Chapter 1 : 1. Outline
1102-002
noitpircseDmetI
16. Dimensions JEDEC / FULL Size
Traverse Cart :
Approx. 806 (width) × 852 (depth) × 1,078 (height) mm
Elevator Unit :
Approx. 551 (width) × 506 (depth) × 1,500 (height) mm
Pallet :
Approx. 350 (width) × 296 (depth) × 8.5 (height) mm
Tray Fixing Magnet :
Approx. 84 (width) × 15 (depth) × 8 (height) mm
Magnet Attachment :
Approx. 10.5 (width) × 19.5 (depth) × 6 (height) mm
17. Specified
Position and
Type
The multi-layer tray feeder installation location should be specified as
follows.
Notes : (a) In the case of the 8 mm tape feeder, ten feeders can be mounted
on the side of the multi-layer tray feeder installation.
(b) Only one nozzle stocker inside the machine is available when
the FULL size multi-layer tray feeder is used.
(c) Only one nozzle stocker inside the machine is available when
the FULL size multi-layer tray feeder is used.
SIGMA-G5
JEDEC Size Multi-Layer Tray Feeder (GS-FP100)
Front Side of Machine
T7A6
