Chapter 2 : 2. Menus for Automatic Operation
(C02) Tray Feeder Data

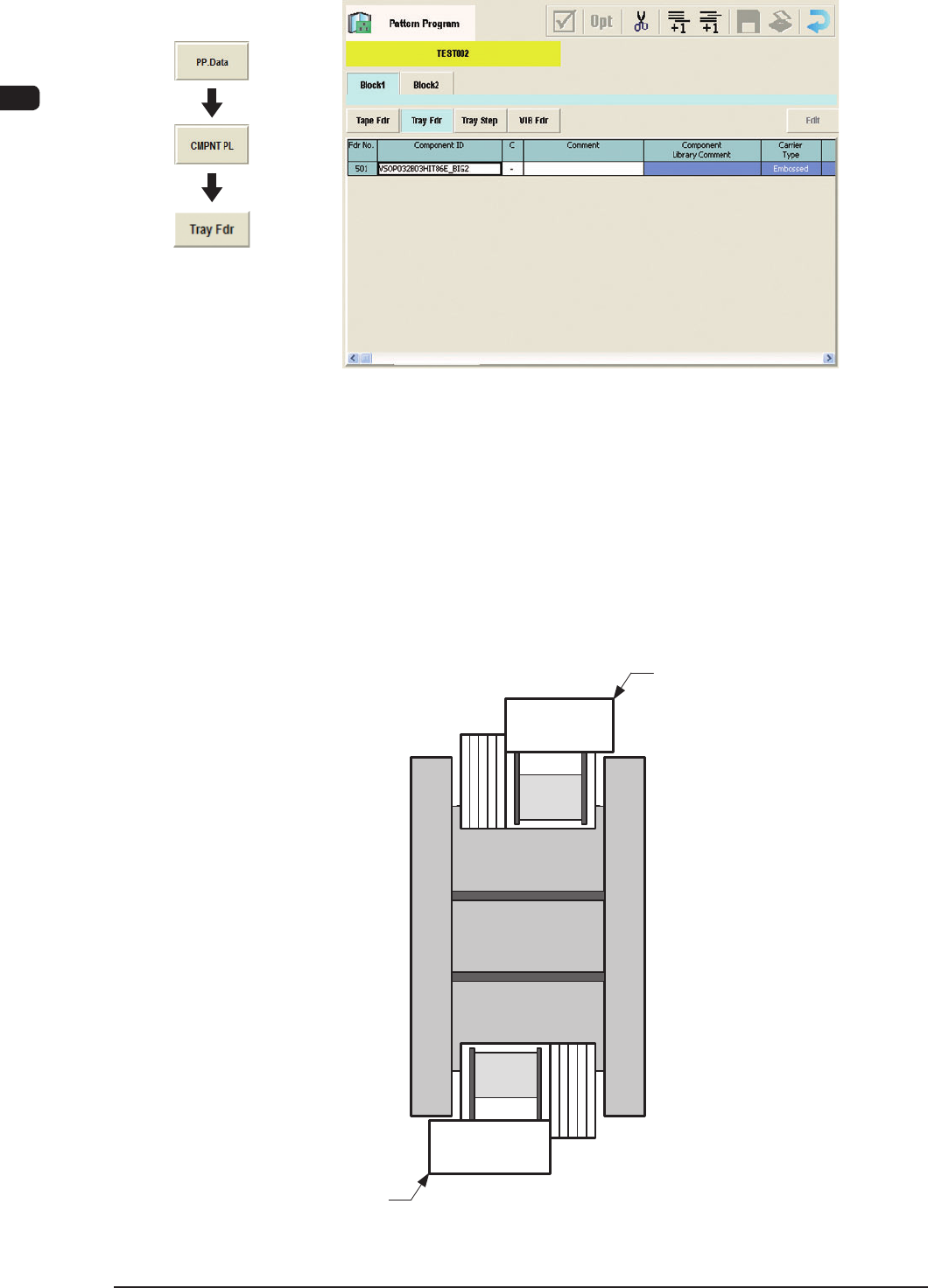

"Tray" Edit window F7B14
(C02_01) Fdr No.
Shown are the feeder Nos. in the placement feeder location data.
When the multi-layer tray feeder is connected, the feeder Nos. (Fdr Nos.)
become as follows.
Multi-Layer Tray Feeder #1
: 501 to 599
Multi-Layer Tray Feeder #2
: 601 to 699
501 to 599
601 to 699
Multi-Layer Tray Feeder #1
Rear Side of Machine
Front Side of Machine
Multi-Layer Tray Feeder #2
Multi-Layer Tray Feeder #1, #2 F7B15
Graphic
Development
1003-002
7OM-1603
Chapter 2 : 2. Menus for Automatic Operation
2-15
(C02_02) Component ID
Set component IDs in the text boxes.
(C02_03) C
Set control commands in the text boxes.
Notice
If a control command other than the following ones is used, the step
becomes invalid.
- (hyphen)
: This command handles the steps as those for the placement
feeder location data.
E
: This command shows the end of the placement feeder location
data.
The step where "E" is set is valid.
S
: This command invalidates the steps specied as placement
feeder location data.
X
: This command invalidates the steps specied as placement
feeder location data and shows the end of the data.
(C02_05) Component Library Comment
Displayed are the comments entered in the component library data.
(C02_06) Carrier Type
Displayed is the data specied in the component library data.
(C02_07) Used Parts
Displayed is the number of components to be used for one unit PCB.
