7OM-1603 2-16 Chapter 2 : 2. Menus for Automatic Operation (C03) T ray Step Data "Tray Step" Edit window F7B16 (C03_01) Magazine Alternate This alternate function can be activated between Magazine #1 and #2 in …
7OM-1603
Chapter 2 : 2. Menus for Automatic Operation
2-15
(C02_02) Component ID
Set component IDs in the text boxes.
(C02_03) C
Set control commands in the text boxes.
Notice
If a control command other than the following ones is used, the step
becomes invalid.
- (hyphen)
: This command handles the steps as those for the placement
feeder location data.
E
: This command shows the end of the placement feeder location
data.
The step where "E" is set is valid.
S
: This command invalidates the steps specied as placement
feeder location data.
X
: This command invalidates the steps specied as placement
feeder location data and shows the end of the data.
(C02_05) Component Library Comment
Displayed are the comments entered in the component library data.
(C02_06) Carrier Type
Displayed is the data specied in the component library data.
(C02_07) Used Parts
Displayed is the number of components to be used for one unit PCB.
1007-002
7OM-1603
2-16
Chapter 2 : 2. Menus for Automatic Operation
(C03) Tray Step Data
"Tray Step" Edit window F7B16
(C03_01) Magazine Alternate
This alternate function can be activated between Magazine #1 and #2 in the
same tray unit.
When "Enable" is set in the "Magazine Alternate" text box, the machine
continues running with the magazine (spare one) automatically changed and
set ready for use right after the previously connected magazine gets empty of
the components required by the main machine.
Note
(a) It is not necessary to equally allocate the component allocation spots
(step and block Nos.). The need for the spare steps and blocks, etc.,
can be determined freely for each individual magazines.
(b) The magazine alternate function is activated when a magazine gets
empty of the required types of components.
When components of the same type are set in several steps, the pallet
alternate function is activated prior to this function.
Graphic
Development
1003-002
7OM-1603
Chapter 2 : 2. Menus for Automatic Operation
2-17

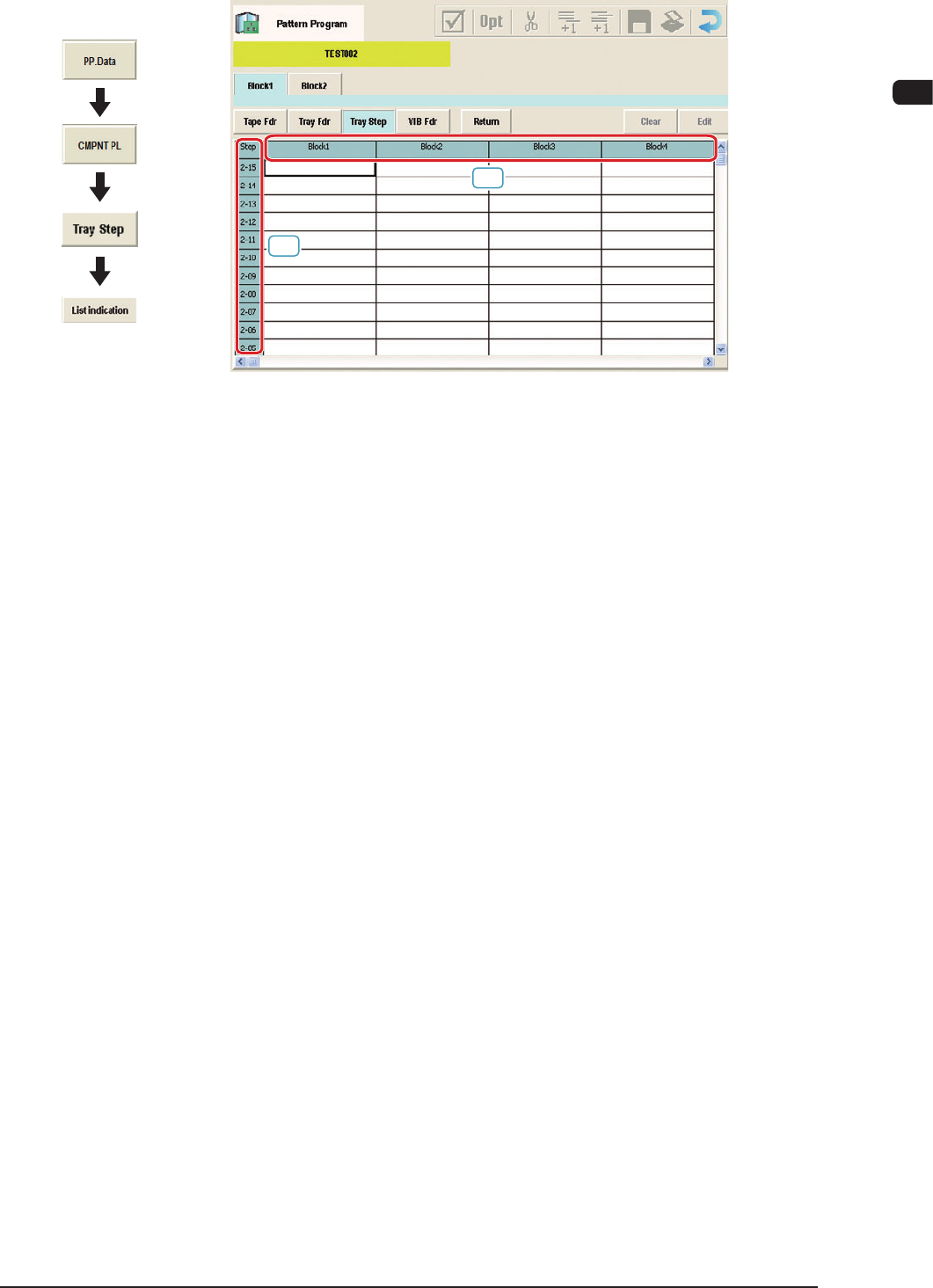

2.4.1.2 "List indication" Window
[1]
[2]
F7B17
[1] Step
Shown are the step Nos. of the magazine.
The step Nos. have a button function. When one of these buttons is pressed,
the corresponding "Tray Step Information" window opens.
[2] Block 1 to 9
Specify where in each step and block various components specied in the
tray data should be arranged.
Graphic
Development
1003-002
