NPM-W2 20170725 - 第26页

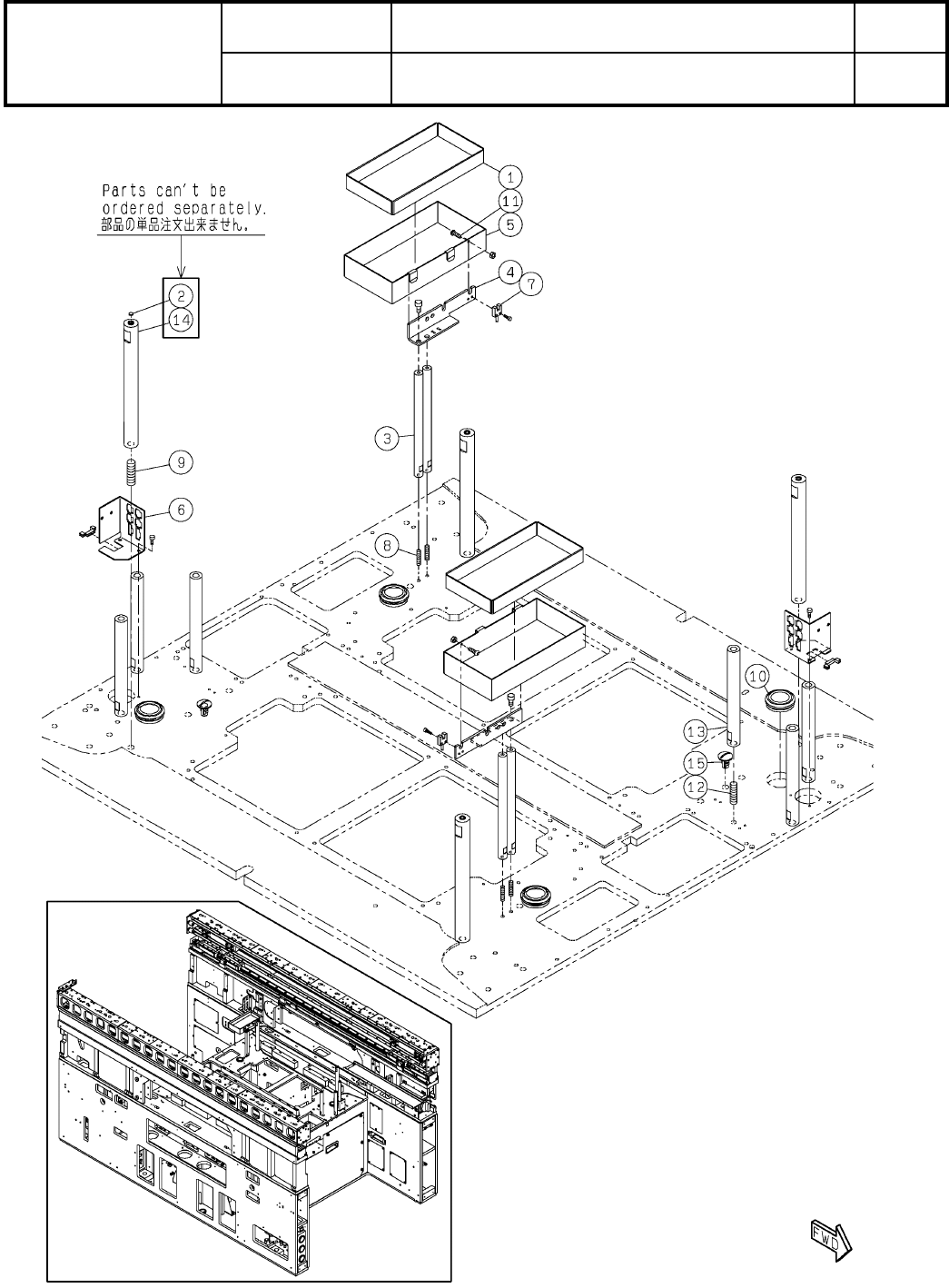

1-C 本体部:NPM-W2 MainBody :NPM-W 2 パーツレイアウト Kit No. キット 品番 Kit Name キット名称 N610154874AA セクションNo. PARTS LAYOUT Section No. - - S5 ( KN610154874AA-26-3 )
Ref
No.
Remarks R
1
Q'ty
1-B
本体部:NPM-W2
MainBody:NPM-W2
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610154874AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
FILTER
1
1 N210097217AA
A
PS/300
COVER
1
2 N210182329AA
BRACKET
2
3 N210142889AD
COVER
1
4 N210182330AA
COVER
1
5 N210198186AB
COVER
2
6 MTPB002371AA
COVER
1
7 N210183572AA
COVER
3
8 N210142897AB
COVER
1
9 N210198187AA
BRACKET
1
10 N210142901AA
COVER
1
11 N210182332AA
COVER
1
12 MTPB001182AB
COVER
1
13 N210161870AA
BRACKET
4
14 N210142915AB
BRACKET
1
16 N210200094AA
COVER
2
17 MTPB002372AA
SCREW
48
18 N510018285AA
Cross recessed Truss head machine screw M5X10-4.8 A2S (Trivalent)
SPACER
1
19 N510031811AA CB-502E
JOINT
8
20 N510066694AA KQ2E06-00A
GROMMET
4
21 N510056668AA C-30-SG-42A-EP-UL
NUT
2
22 N510013282AA SFN-TS4
FRAME
1
23 N510015246AA SFF-304 L=240
NUT
5
24 N510013281AA SFN-TS5
CAP
7
25 KXF0ATFAA00 SFA-906
BOLT
2
26 N510017536AA
SSS 003 Hexagon socket button head screw M4X8-10.9 A2J (Trivalent)
BOLT
23
27 N510067781AA Low Head Cap Screw M6X12-8.8 A2J(Trivalent)
PULL
4
28 N510062503AA AP-268-2-Black
SPACER
1
29 N510037916AA ASF-5110E
CLIP
2
30 KXF0BLPAA00 TA1S8-M
S4
--
( KN610154874AA-26-2 )
1-C
本体部:NPM-W2
MainBody:NPM-W2
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610154874AA
セクションNo.
PARTS LAYOUT
Section No.
--
S5
( KN610154874AA-26-3 )
Ref
No.
Remarks R
1
Q'ty
1-C
本体部:NPM-W2
MainBody:NPM-W2
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610154874AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
SHEET
2
1 N210198125AB
TARGET
4
2 KXFB03KAA01
ROD
4
3 N210152694AA
BRACKET
2
4 MTPB004232AB
BOX
2
5 N210198154AB
BRACKET
2
6 N210142909AC
SENSOR(800mm)
2
7 MTKP005545AA
SCREW
4
8 XXE6D25FT
Hexagon socket set screw Cup point M6X25-45H SOB
SCREW
4
9 XXF12C40FT
Hexagon socket set screw Flat point M12X40-45H SOB
GROMMET
4
10 N510056670AA C-30-SG-36A-EP-UL
BOLT
2
11 N510000299AA
SSS 003 Hexagon socket button head screw M3X10-12.9 SOB
SCREW
6
12 XXF10C35FT
Hexagon socket set screw Flat point M10X35-45H SOB
ROD
6
13 N210152693AC
SHAFT
4
14 N510068948AA SETBT22-225-M12-N0-SC195(K04-055-02-1)
CAP
2
15 N510064471AA CP-30-BC-12-Black
S6
--
( KN610154874AA-26-3 )
