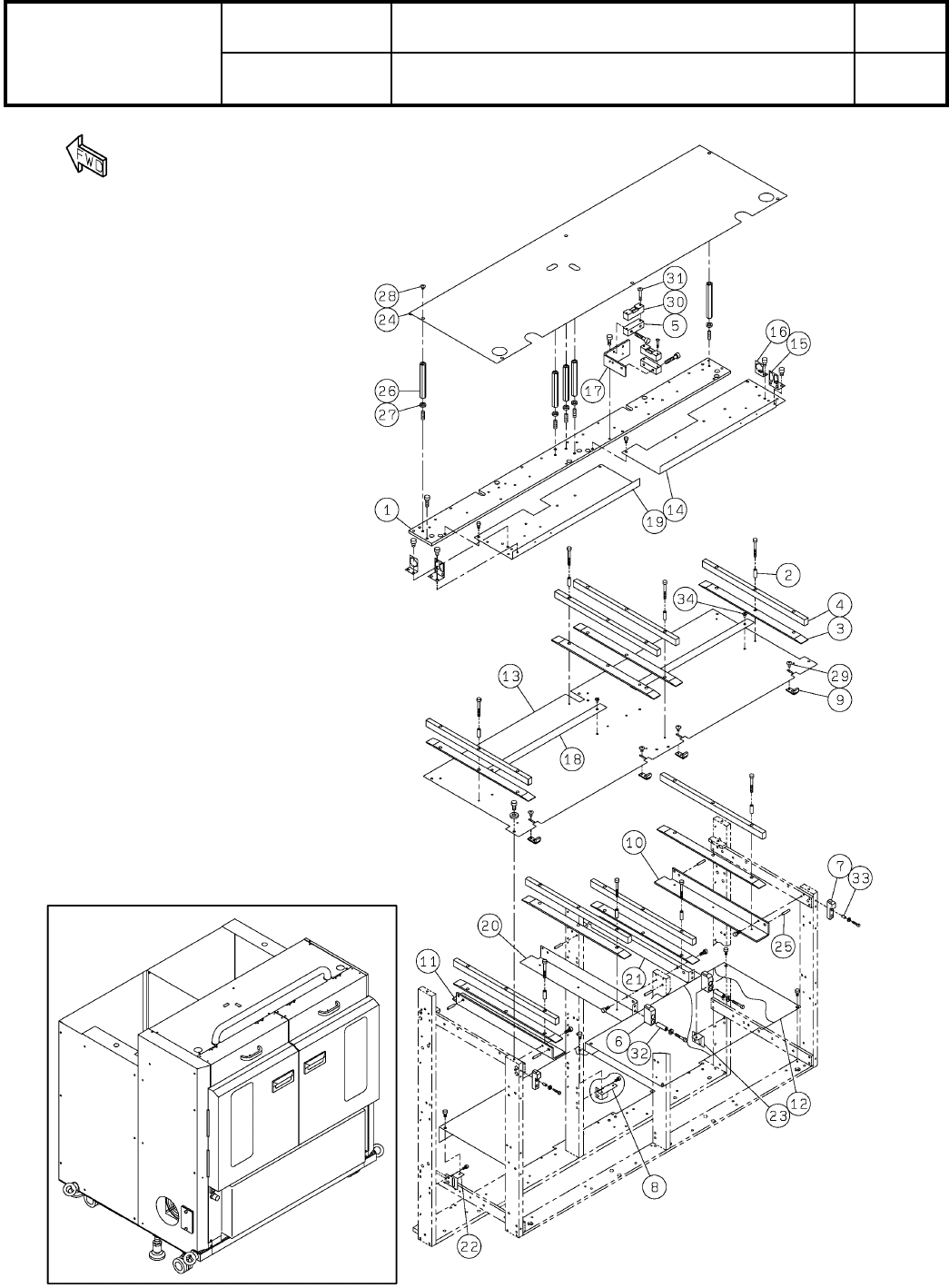

41-B ツイントレイフィーダ本体部:NPM-W Tw in Tray Feeder M ain Body :NPM-W パーツレイアウト Kit No. キット 品番 Kit Name キット名称 N610121083AA セクションNo. PARTS LAYOUT Section No. - - O133 ( KN610121083AA-27-2 )
Ref
No.
Remarks R
1
Q'ty
41-A
ツイントレイフィーダ本体部:NPM-W
Twin Tray Feeder Main Body :NPM-W
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610121083AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
BLOCK
4
1 KXFB07EWA00
POST
3
2 N210143480AA
PLATE
1
3 N210143540AE
FRAME
1
4 N210142442AH
PLATE
2
5 N210143482AA
PLATE
2
6 N210143483AB
PLATE
1
7 N210143484AB
PLATE
1
8 N210143485AC
PLATE
1
9 N210143486AB
PLATE
1
10 N210143487AA
PLATE
1
11 N210143488AC
PIN
1
12 KXFB05J3A00
PIN
1
13 KXFB05J4A00
PLATE
1
14 N210143492AC
PLATE
1
15 N210143493AC
BLOCK
1
16 N210143494AA
BLOCK
1
17 N210143495AB
BLOCK
2
18 N210143496AA
BRACKET
1
19 N210143505AC
BRACKET
1
20 N210094440AB
COVER
2
21 N210143515AA
PLATE
1
22 N210109065AA
BRACKET
1
23 N210094445AA
COVER
1
24 N210143518AA
BRACKET
1
25 N210143519AD
BRACKET
1
26 N210143521AB
BRACKET
6
27 N210143522AA
COVER
1
28 N210143523AA
BRACKET
1
29 N210143524AA
COVER
2
30 N210143525AA
BRACKET
1
31 N210150993AA
COVER
1
32 N210150995AA
COVER
1
33 N210151162AA
ADJUST-BOLT
4
34 KXF0DYJ8A00 D-C12X50
CASTER
4
35 KXF0DGHAA00 G7N12
BOLT
4
36 N510018798AA
Eyebolt M16 Steel Unichrome white (Trivalent)
BOX
2
37 N510035851AA N510035851AA
COLLAR
4
38 N210160095AA
NUT
8
39 N510017912AA
Hexagon nut Type-3 Best class M20-6H-4T A2J (Trivalent)
PIN
6
40 N510020618AA MMS6-15
COLLAR
2
41 N210160052AA
BOLT
2
42 N510032459AA MMSB13-45
BOLT
8
43 N610087341AA
O132
--
( KN610121083AA-27-1 )
41-B
ツイントレイフィーダ本体部:NPM-W
Twin Tray Feeder Main Body :NPM-W
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610121083AA
セクションNo.
PARTS LAYOUT
Section No.
--
O133
( KN610121083AA-27-2 )
Ref
No.
Remarks R
1
Q'ty
41-B
ツイントレイフィーダ本体部:NPM-W
Twin Tray Feeder Main Body :NPM-W
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610121083AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 N210143481AB
COLLAR
24
2 KXFB014PA00
PLATE
8
3 N210098227AA
GUIDE
8
4 N210098234AA
BLOCK
2
5 KXFB015CA00
BLOCK
2
6 N210143491AB
BLOCK
2
7 N210143497AB
BRACKET
1
8 N210143499AA
BRACKET
4
9 N210021618AA
BRACKET
1
10 N210098241AA
BRACKET
1
11 N210098242AA
COVER
2
12 N210143501AB
PLATE
1
13 N210143504AB
BRACKET
1
14 N210143513AB
BRACKET
2
15 N210004500AA
BRACKET
2
16 KXFB017FA00
BRACKET
1
17 KXFB07F7A00
PLATE
2
18 N210116027AC
BRACKET
1
19 N210143526AB
BRACKET
1
20 N210143532AA
BRACKET
1
21 N210143533AA
BRACKET
1
22 N210143534AA
BRACKET
1
23 N210143535AA
COVER
1
24 N610121088AB
PIN
6
25 N510020599AA MMS4-20
SPACER
5
26 N510020913AA ASF-455E
SPACER
5
27 N510030561AA CB-402E
SCREW
58
28 MTNK000942AA
Cross recessed Truss head machine screw M4X6-4.8 A2J(Trivalent)(MEC t
SCREW
8
29 N510018252AA
Cross recessed Truss head machine screw M3X5-4.8 A2S (Trivalent)
PRECISION-LEVEL
2
30 KXF0DXU6A00 100WATER LEVEL
SCREW
4
31 N510018241AA
Cross recessed Truss head machine screw M3X18-4.8 A2J (Trivalent)
SPACER
4
32 N510017100AA CB-420E
SPACER
4
33 N510038529AA CF-308ZE
BOLT
4
34 N610094866AA
O134
--
( KN610121083AA-27-2 )
