51 13連供給部:NPM-TT 13-Slot Supply Part:NPM -TT パーツレイアウト Kit No. キット 品番 Kit Name キット名称 N610136570AA セクションNo. PARTS LAYOUT Section No. - - O171 ( KN610136570AA-08 )
Ref
No.
Remarks R
1
Q'ty
50
13連供給カッティング部:NPM-W
13-Slot Supply Cutting Part:NPM-W
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610121411AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 N210144043AC
GUIDE
1
2 N210144044AA
GUIDE
1
3 N210144045AA
PLATE
1
4 N210144046AA
CUTTER
1
5 N210144047AA
CUTTER
1
6 N210144048AA
PLATE
2
7 N210144049AB
GUIDE
1
8 N210144160AA
BLOCK
1
9 MTPA006315AA
COVER
1
10 N210144051AB
BOLT
1
11 N510032427AA MMSB10-15
ROD-END
1
12 KXF088CAA00 POS10EC
GREASE-NIPPLE
2
13 N560AMT6-130 A-MT6X1-Type(M6X1)
SPEED-CONTROLLER
1
14 N510059136AA AS2201F-02-06S-13-X252
CYLINDER
1
15 N510045370AA SSD-K-63C-45-FL412785
BOLT
4
16 N510017462AA
Hexagon socket head cap screw M8X100-10.9 A2J (Trivalent)
JOINT
1
17 N510066458AA KQ2L06-02AS
O170
--
( KN610121411AA-09 )
51

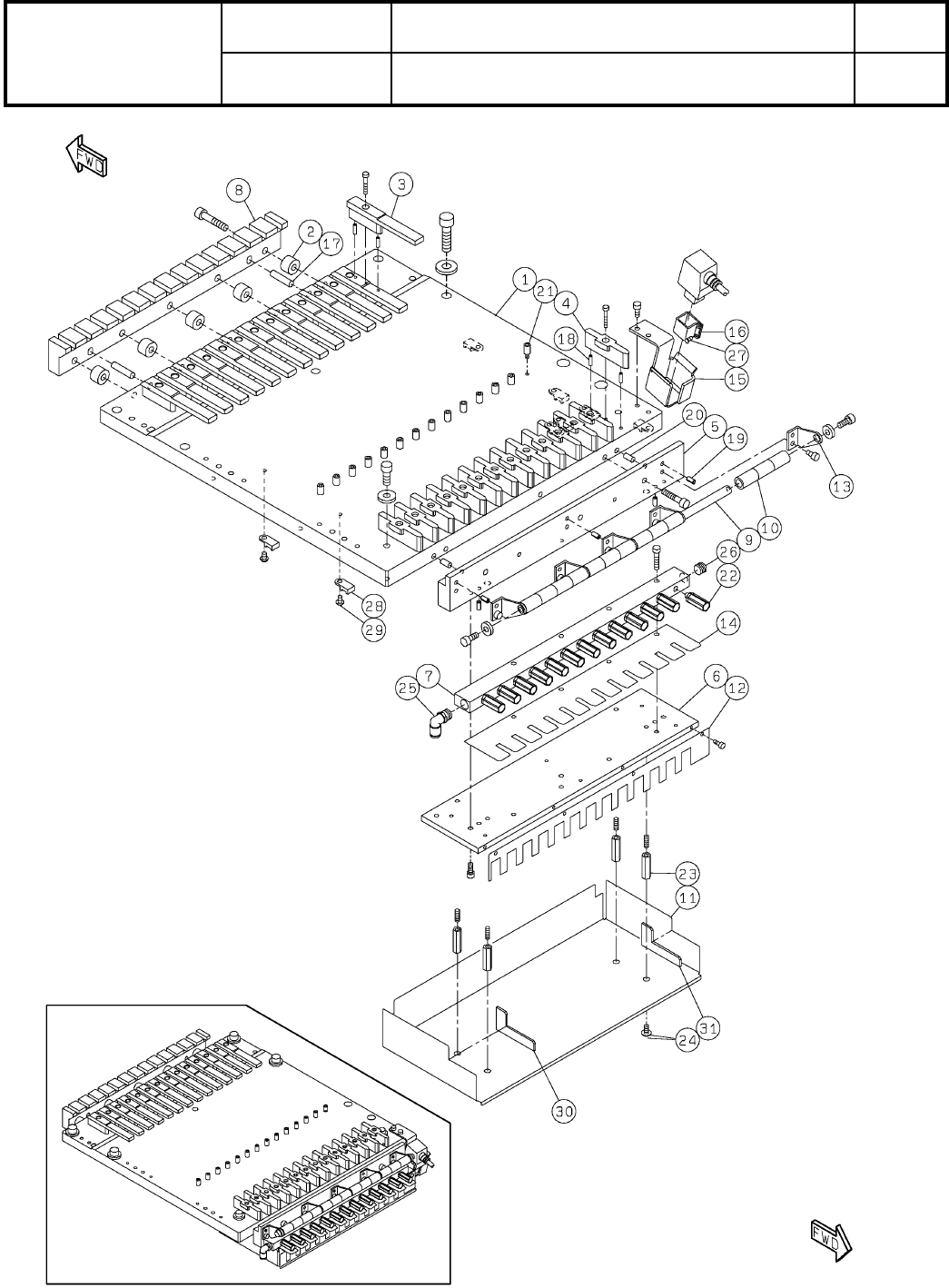

13連供給部:NPM-TT
13-Slot Supply Part:NPM-TT
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610136570AA
セクションNo.
PARTS LAYOUT
Section No.
--
O171
( KN610136570AA-08 )
Ref
No.
Remarks R
1
Q'ty
51
13連供給部:NPM-TT
13-Slot Supply Part:NPM-TT
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610136570AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
BASE
1
1 MTPA005589AA
WASHER
5
2 N210143841AB
GUIDE
14
3 N210092714AB
GUIDE
14
4 N210092715AA
PLATE
1
5 MTPA006702AA
BASE
1
6 N210143996AA
AIR-BLOCK
1
7 N210143997AA
STOPPER
1
8 N210129516AB
SHAFT
1
9 N210143998AA
COLLAR
13
10 KXFB02EEA00
COVER
1
11 N210143999AB
COVER
1
12 N210144000AA
BRACKET
5
13 KXFB02F4A00
GUIDE
1
14 N210144001AA
BRACKET
1
15 N210144002AB
COVER
1
16 N210060009AE
PIN
2
17 N510020620AA MMS6-25
PIN
56
18 KXF0CXLAA00 1017003-30010
PIN
5
19 KXF0CXHAA00 1017003-40008
PIN
2
20 KXF0CXJAA00 1017003-50010
SPACER
14
21 KXF0CTQAA00 BRU-309S
COUPLER
13
22 N510044684AA 103C-M5-KK01
SPACER
4
23 N510017064AA ASF-425E
SCREW
4
24 N510018283AA
Cross recessed Truss head machine screw M4X8-4.8 A2S (Trivalent)
JOINT
1
25 N510066794AA KQ2L06-01NS
PLUG
1
26 N42201S PT1/8 with seal
SCREW
2
27 N510018104AA
Cross recessed Pan head machine screw for precision devicesM2X4Type1
CLIP
8
28 KXF0BLPAA00 TA1S8-M
BOLT
8
29 N510017534AA
SSS 003 Hexagon socket button head screw M4X6-10.9 A2J (Trivalent)
CUSHION
1
30 MTPZ000227AA
CUSHION
1
31 MTPZ000228AA
