Periodic maintenance items
n
Cleaning the air filter
1
Remove the filter cup.
See the previous procedure in "Cleaning the
filter cup".
2
Remove the air filter.
Rotate the white disk clockwise as viewed
from the top and take out the air filter.
53332-F8-00
3
Clean the air filter.
Use an air blow gun to blow away dust and
impurities trapped by the air filter. If the filter
is excessively dirty and cannot be cleaned,
replace it with a new filter.
4
Reattach the air filter.
Screw the white disk back in to attach the
air filter to the original position.
53333-F8-00
5
Reattach the filter cup.
n
NOTE
When cleaning the mist filter, use the same procedure.

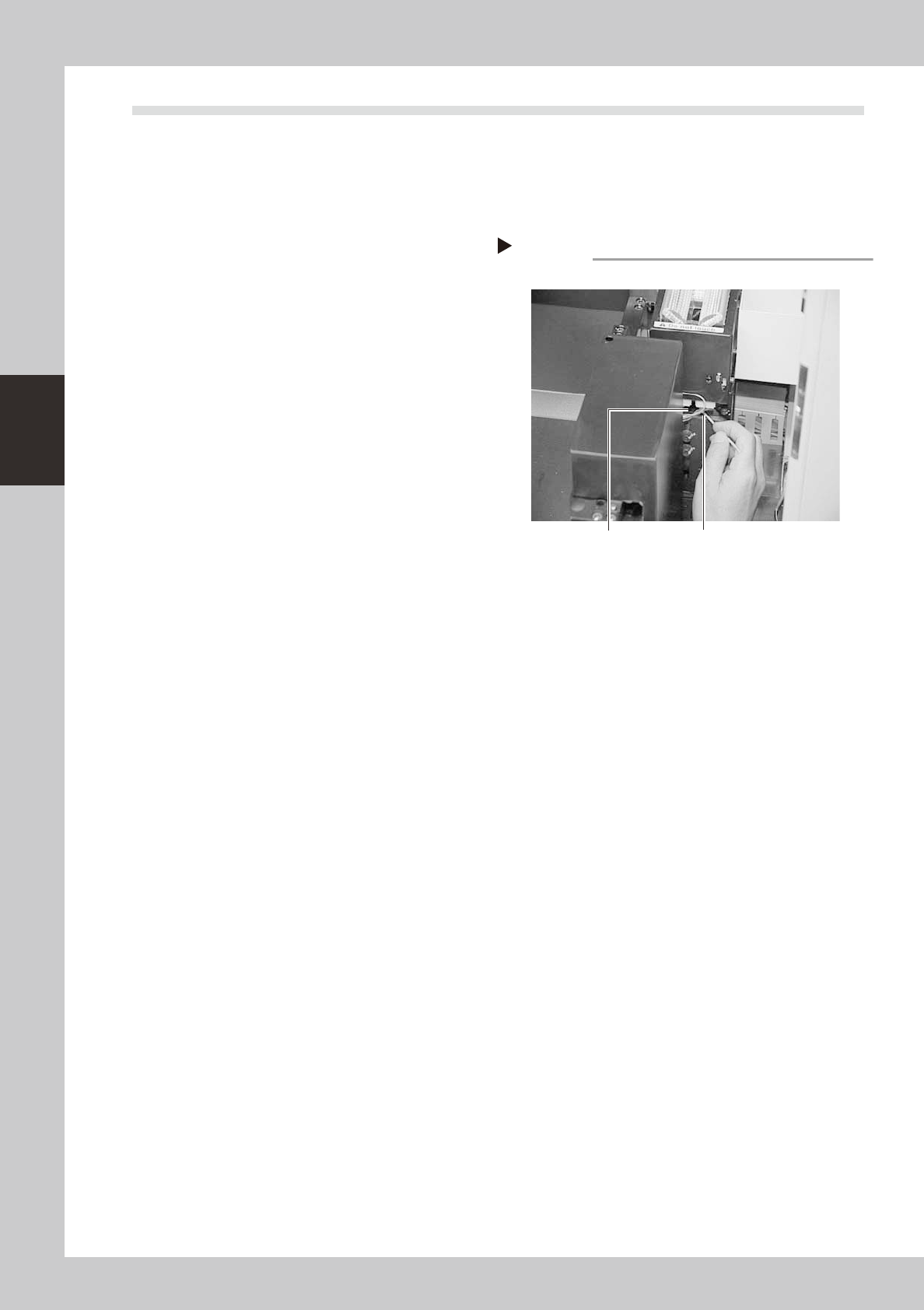

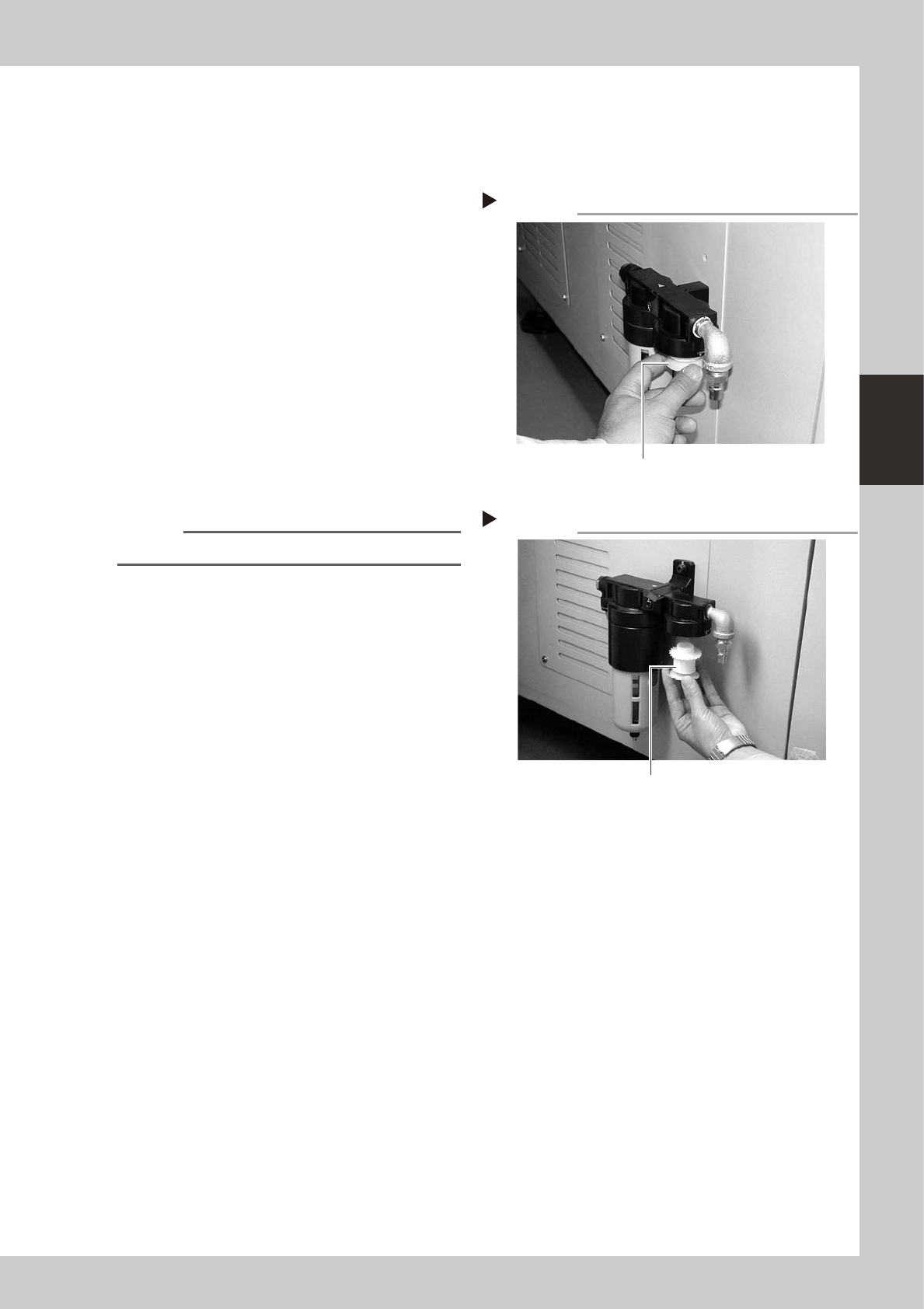

Removing the air filter
Step 2
Rotate the white disk clockwise
to loosen and remove it.
Reattaching the air filter
Step 4
Air filter
3-22
3
Periodic maintenance items
2.5 Cleaning the camera lens
The camera lens may become dirty sue to dust and dirt, we recommend periodic cleaning as explained below.
1
e
Press the emergency stop button.
The machine must be in emergency stop to
ensure safety during work.
2
Clean the camera lens.
Illuminate the camera from the top with a
pen light or flashlight. You will see the
camera lens.
1. Use a blow brush to blow air onto the
lens to remove dust buildups.
2. Apply several drops of lens cleaner to a
cotton swab and wipe off the lens.
53334-F8-00
Cleaning the lens
Step 2
Camera lens
Cotton swab stick applied
with lens cleaner liquid
3-23
3
Periodic maintenance items
3. Six-month or one-year inspection
3.1 Cleaning and replacing the ejector filter
Although depending on the air supply conditions and operating time, ejectors should be inspected once every
6 months. Use an air blow gun to remove dust buildups when small. We recommend replacing the air filter if
heavy dust deposits are found.
1
e
Press the emergency stop button.
The machine must be in emergency stop to
ensure safety during work.
2
Remove the filter cap.
Remove the cap on the head by turning it
by hand.
53335-F8-00
3
Clean the air filter.
Use tweezers to take the air filter out of the
vacuum ejector. When there is only a little
dust in the filter, use an air blow gun to blow
it away and return the filter to the original
position.
53336-F8-00
4
Replace the air filter as necessary.
If there are heavy dust deposits in the filter
or the filter has discolored, replace with a
new filter.
n
NOTE
As a general guide, filters should be replaced once
every 6 months, although this depends on actual
operating time.
5
Reattach the filter cap.
Screw the filter cap back into the original
position. Do not forget to fit the O-ring inside
the vacuum ejector.
53337-F8-00

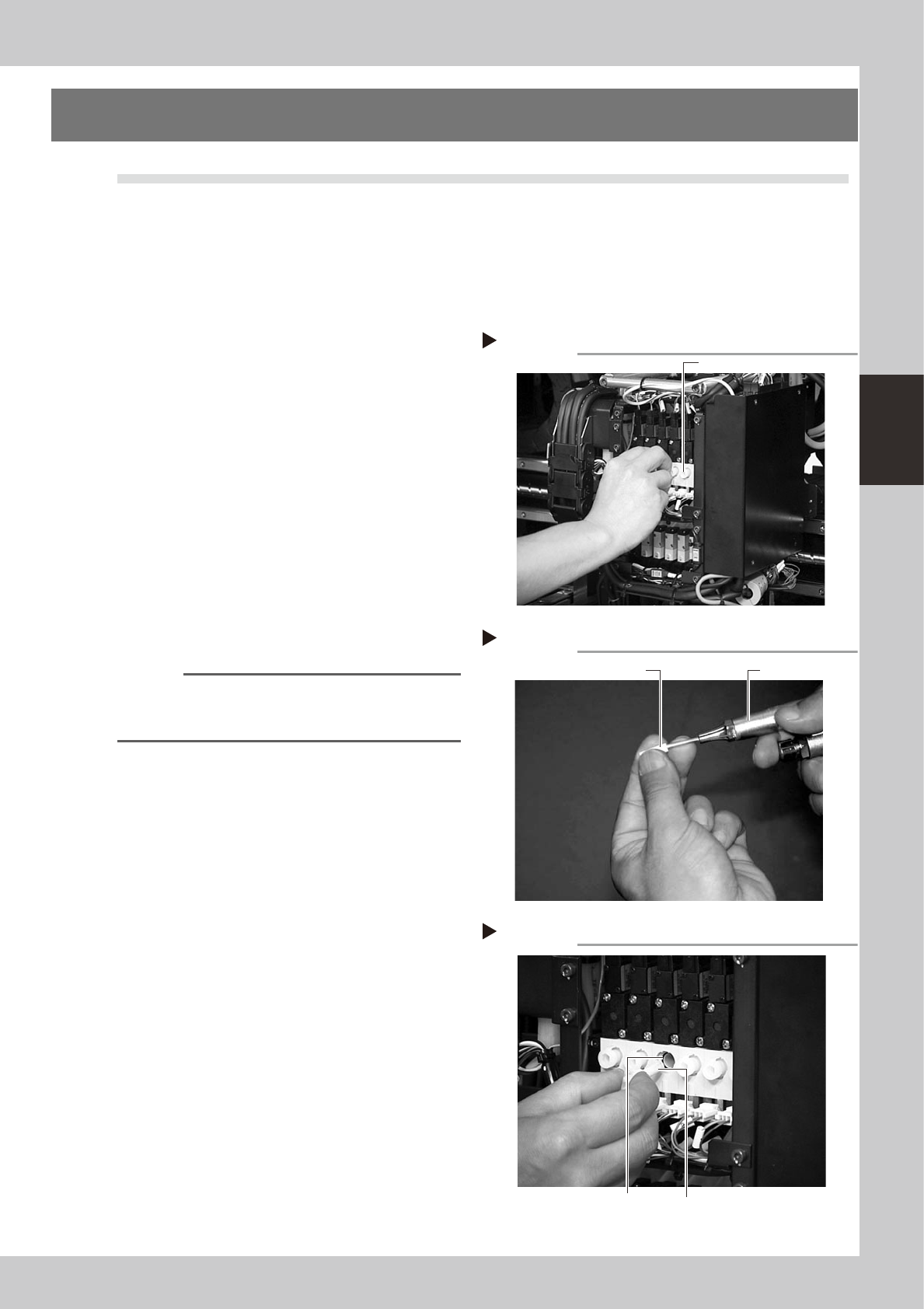

Removing the filter cap
Step 2
Filter cap
Cleaning the filter
Step 3
Air blow gun Filter
Inserting the filter
Step 5
Filter fitted into the cap
O-ring
