SP-0023-001 - 第14页
G-S146-02 0509-001 12 プロフローユニット取付本体対応 Main Machine Modification For Attaching Pro Fiow Uni t P-S146-02(TPM-200) P-S146-02(TPM-200) Fig. F A-1 スキージヘッド部 SQUEEGEE HEAD SECTION - スキージヘッド Y 軸駆動部 -Squeegee Head Y Axis Driver 40…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
G-S118-09
0509-001
11
101 630 116 4892 BLOCK(BAR) 1
102 630 111 0776 BRACKET 1
103 630 107 1503 BLOCK 2
104 630 107 3576 BLOCK 4
105 630 097 3174 STAY 1
106 630 097 3327 PLATE 1
107 630 088 0243 SHAFT 1
108 630 088 0250 PLATE 2
113 630 107 3927 CYLINDER 3
114 630 117 1517 CYLINDER 1 BPS067
115 630 003 5124 AIR LINE EQPT 4
116 630 080 5420 PIPE FITTINGS 4
117 630 088 7358 CORD 1
119 630 001 1425 BEARING,RADIAL 2 6000ZZNR
120 630 116 5165 PIN,LOCATE 1
121 630 116 5172 PIN,LOCATE 1
122 630 097 7967 CLAMP 2
151 630 074 4644 BOLT,HEX-SCT 6 M3X45
152 630 091 5419 BOLT,HEX-SCT 2 M3X50
153 630 000 7633 BOLT,HEX-SCT 8 M4X12
154 630 000 7732 BOLT,HEX-SCT 1 M5X8
155 630 000 7893 BOLT,HEX-SCT 2 M6X20
156 630 000 7909 BOLT,HEX-SCT 4 M6X25
157 411 140 7208 SCR FLT 4X6 4 M4X6 FLT
162 411 141 2905 WASHER SPR 4 8 SW4
163 411 141 6705 WASHER SPR 5 1 SW5
164 411 141 3001 WASHER SPR 6 6 SW6
167 411 141 4008 WASHER V 4X9X0.8 8 FW4
168 411 141 4107 WASHER V 5X10X1 1 FW5
169 411 141 4305 WASHER V 6X12.5X1.6 6 FW6
170 630 001 0220 WASHER 1 BW5
PF-2
G-S146-02
0509-001
12
プロフローユニット取付本体対応
Main Machine Modification For Attaching Pro Fiow Uni
t
P-S146-02(TPM-200) P-S146-02(TPM-200)

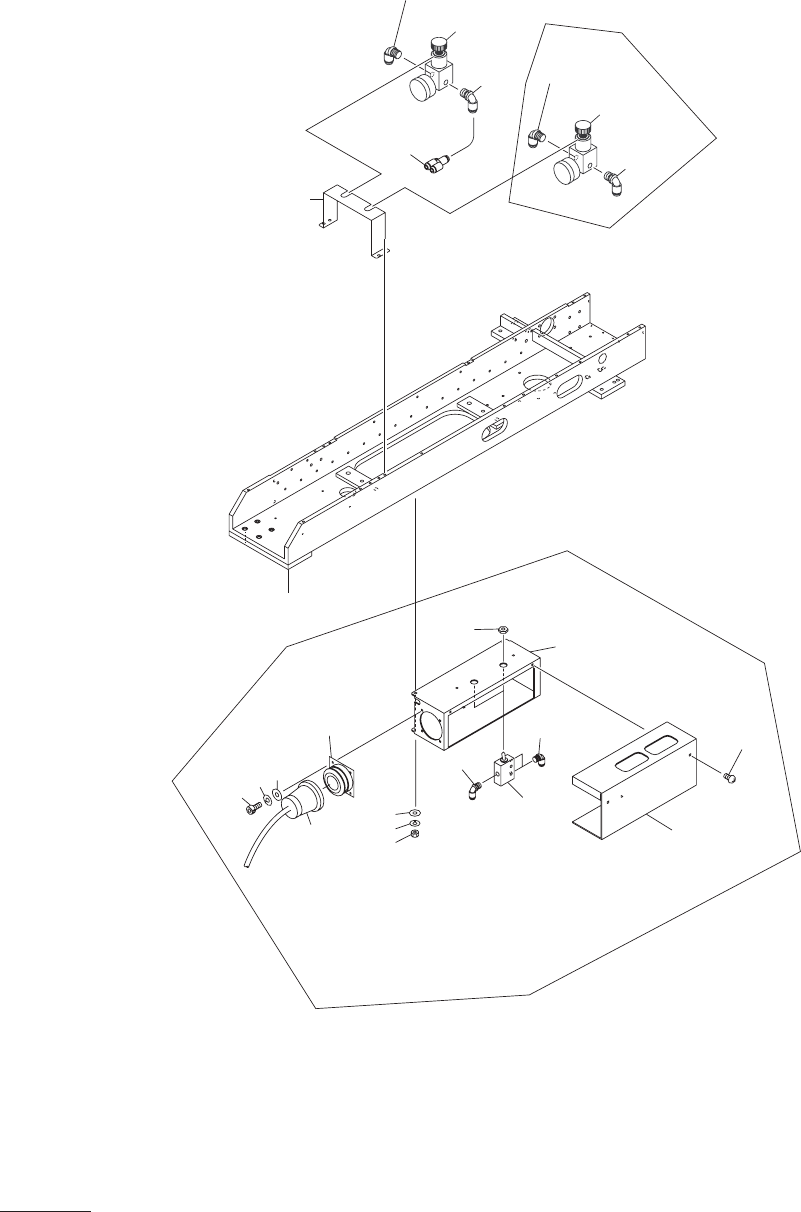

Fig. FA-1
スキージヘッド部
SQUEEGEE HEAD SECTION
- スキージヘッド
Y
軸駆動部
-Squeegee Head Y Axis Driver
40
44
28
22
21
23
59
59
58
ADD
ADD
59
57
49
50
57
72
71
67
55
54
72
71
68
66
59
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
P-S146-02
0509-001
13
FA-1
49 630 116 4861 BRACKET(BRACKET) 1
50 630 121 2753 BRACKET 1
54 630 114 9301 PIPE FITTINGS 1
55 630 114 9318 PIPE FITTINGS 1
57 630 109 0801 VALVE 2
58 630 092 8457 AIR LINE EQPT 1
59 630 069 0538 PIPE FITTINGS 8
66 411 051 1708 SCR TRS 4X6
8→10
782FA-110-066
67 630 000 7619 BOLT,HEX-SCT
8→12
782FA-110-067
68 630 000 7626 BOLT,HEX-SCT
6→12
782FA-110-065
71 411 141 2905 WASHER SPR 4
24→32
782FA-110-071
72 411 141 4008 WASHER V 4X9X0.8
24→32
782FA-110-072
