8 WF1 SX1/2 Clean the Y-Axis loose bearing and contact surface. 1 min 1 / 1 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c …
www.asm-smt.com
8 WF1 SX1/2 Clean the Y-Axis loose bearing and contact surface. 1 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON (OFF) Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C3
www.asm-smt.com

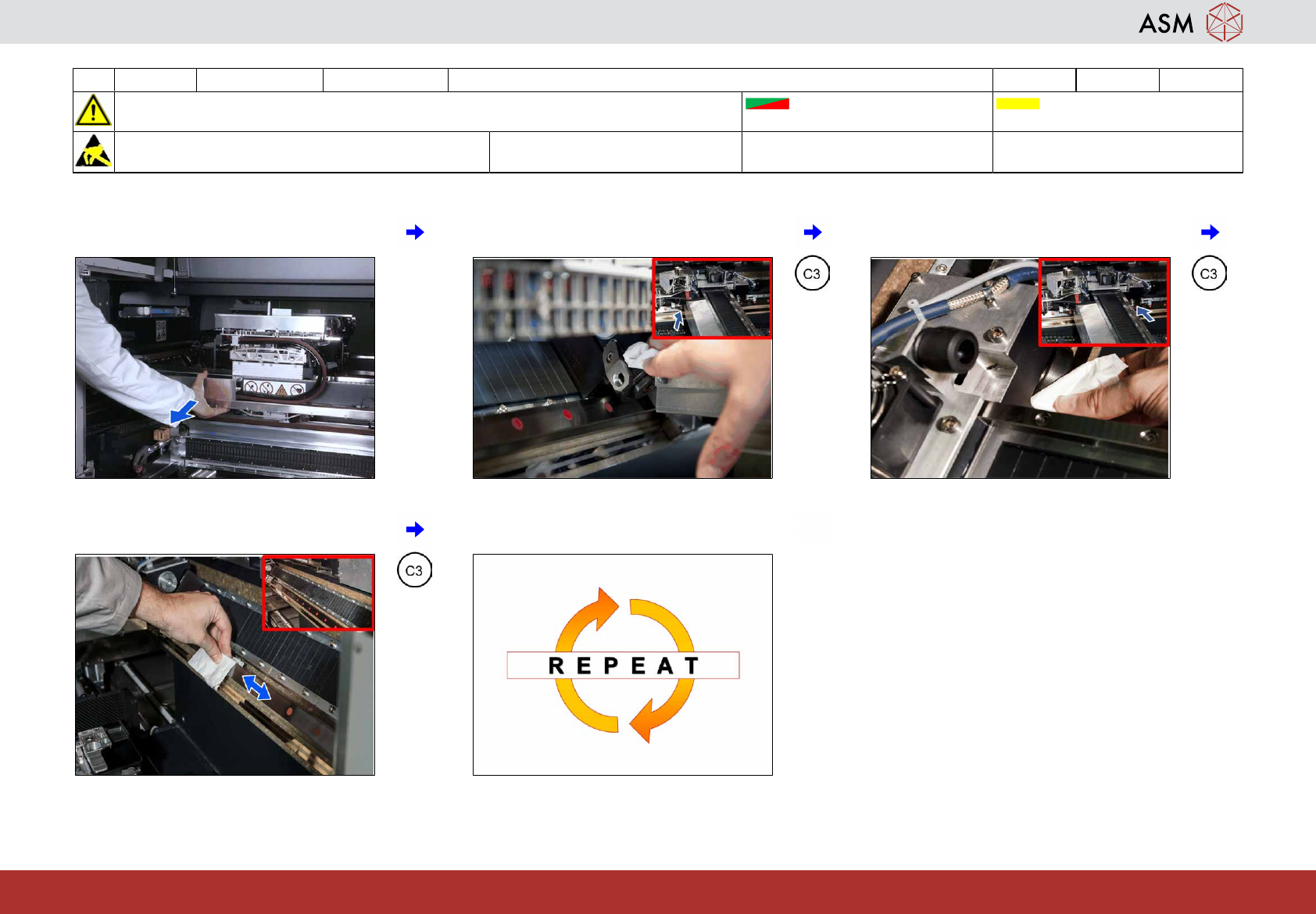

1 Move all gantries to the end limit. 2 Clean the outer loose bearing at the left
side of gantry.
3 Clean the inner loose bearing at the right
side of gantry.
4 Clean the contact surface over the entire
length.
5 Repeat all steps at the other gantry.
