9 WF1 SX1/2 Clean the conveyor, lifting tables and gantry cables. 1.5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON (OFF) Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T1
Wear Part: Consumables:
C3
www.asm-smt.com

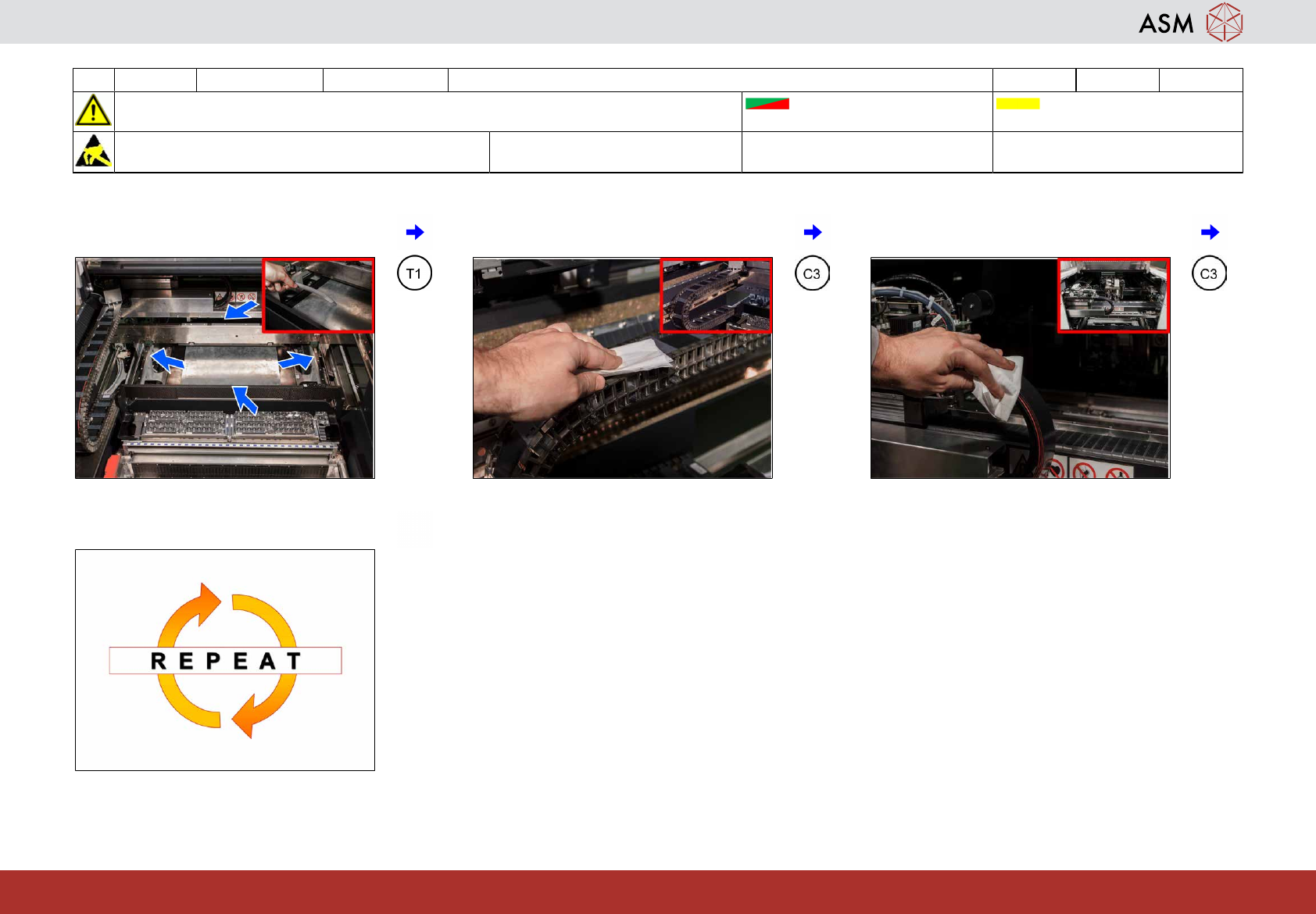

1 Remove all loose components on and
around the whole PCB conveyor.
2 Clean the gantry cables of the Y-Axis. 3 Clean the gantry cables of the X-Axis.
4 Repeat all steps at the other gantry.
www.asm-smt.com
10 WF1 SX1/2 Prepare the feeder, return all tables, close the covers and switch on
machine.
1.25 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON (OFF) Transport Empty
NOTICE! ESD guidelines are to be followed Tool:
T1, T18
Wear Part: Consumables:
www.asm-smt.com

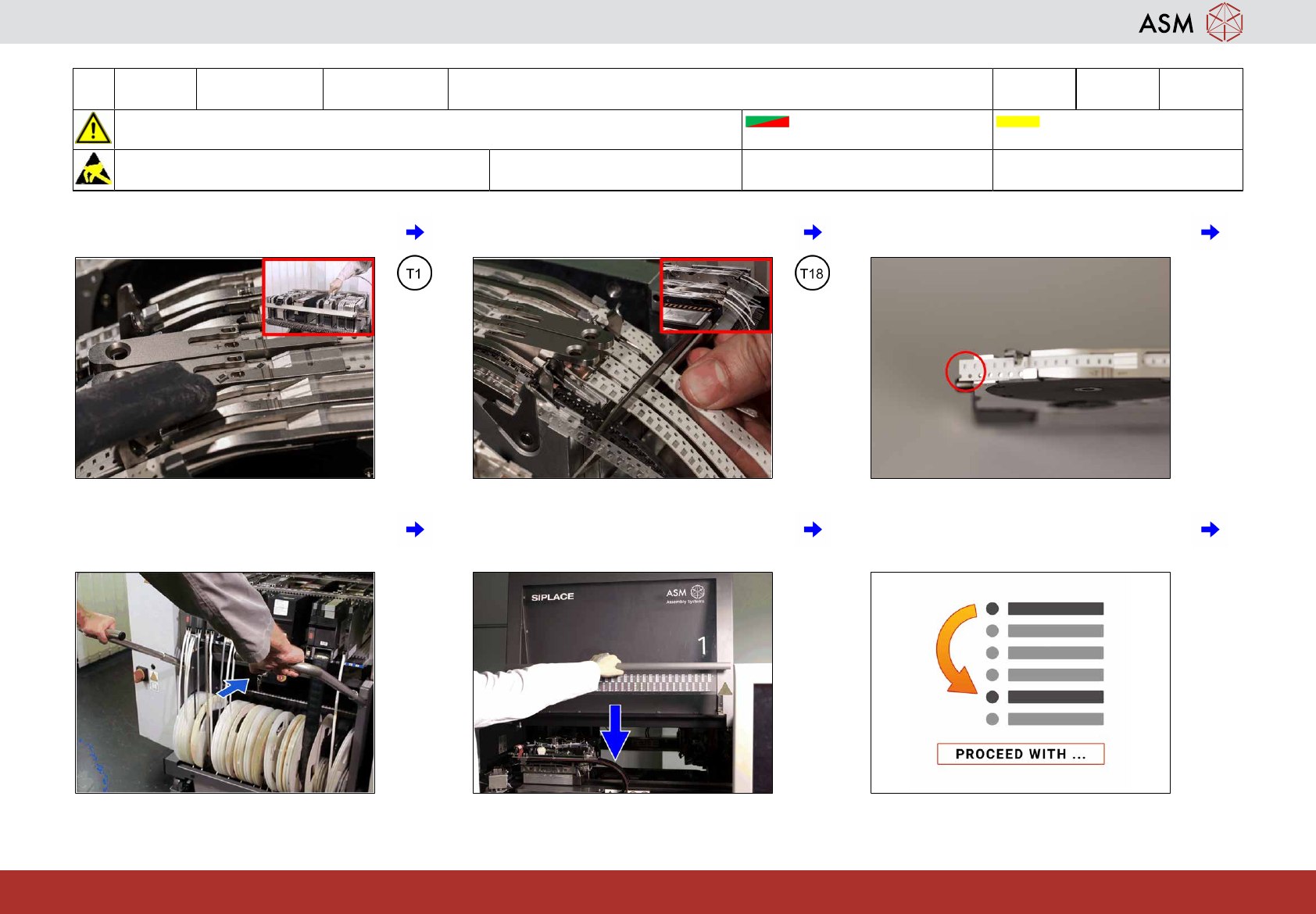

1 Remove all loose components from the
feeder modules.
2 Cut the remaining tape directly at the
feeder.
3 After Cutting: Ensure to leave 2 holes
overlapping.
4 Return all COT. 5 Close all covers. 6 If the machine was switched off proceed
with next step otherwise proceed with next
task.
