Installation Manual Station Software Version 601.02 SP1 Edition 10/2005
29 of 82
Entering the Machine Identification Number (MID)

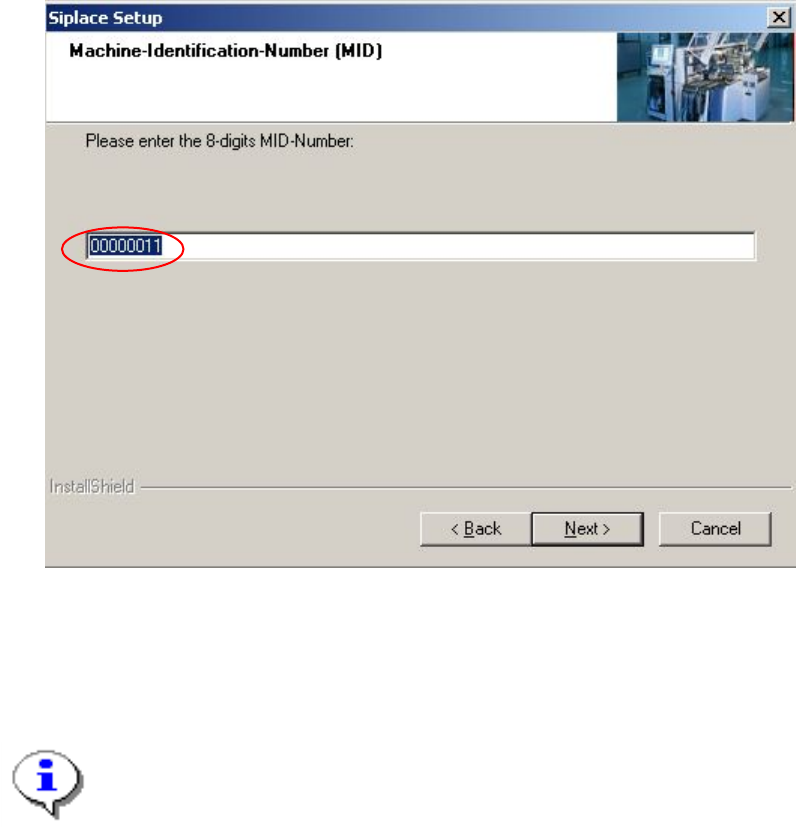

Fig. 4-12: Entering the Machine Identification Number (MID)
→ In the text box, enter the 8-digit machine identification number.
Note:
You will find the MID on an adhesive label on the side of the protective covers directly below
the label for the number of the relevant location. The number following the dash after the MI
D
specifies the location and is not entered here (e.g. 00000001-2 stands for location 2).
→ Click the Next button.
Installation Manual Station Software Version 601.02 SP1 Edition 10/2005
30 of 82
Note:
The following screen only appears if applications are open which use files which must be updat
e
during installation of SIPLACE.

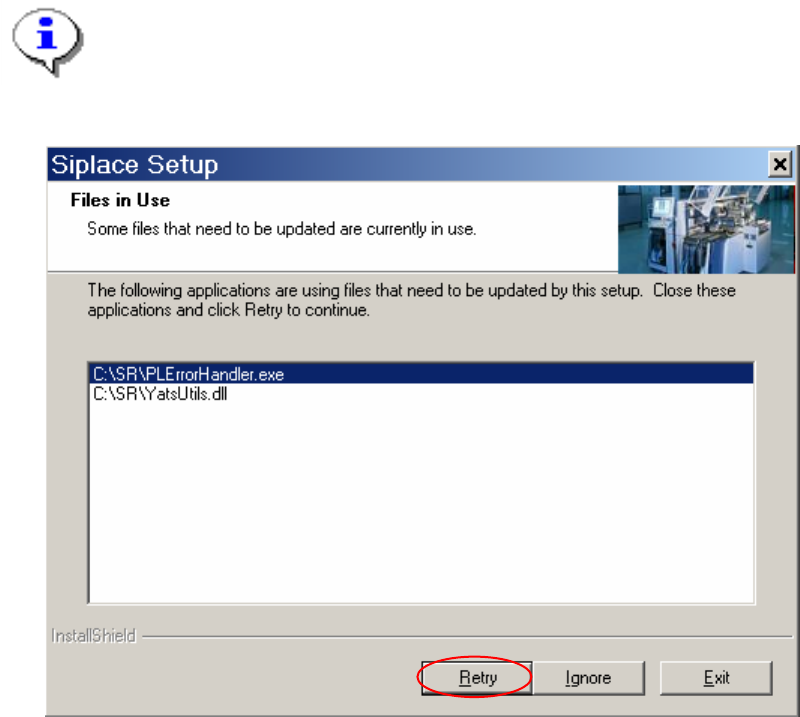

Fig. 4-13: Open applications
→ Close the applications listed here and then click the Retry button.
The installation program now installs the additional programs on the station computer.
Installation Manual Station Software Version 601.02 SP1 Edition 10/2005
31 of 82
Finalizing the installation
Note:
The status only lists the programs that have just been installed. If, for instance, the current
version of SIPLACE Vision was already installed, it is not listed here.
If errors occurred during installation, the status is indicated by the Error button being
displayed next to the program name instead of the Ok button.
→ If you wish to read the log of the installation of any program, click the Ok (or Error) button next
to the name of the program. The Notepad is started and displays the appropriate file.
Fig. 4-14: Final dialog of the installation
→ Click the Finish button.
Note:
To establish the connection between the station computer and the machine controller after
installation has been completed the station computer must first be run down and the
machine must then be switched off completely.
→ To do this, click Shut Down in the Start menu and select Shut Down from the dropdown list
followed by the OK button.
